The Terminal Plate

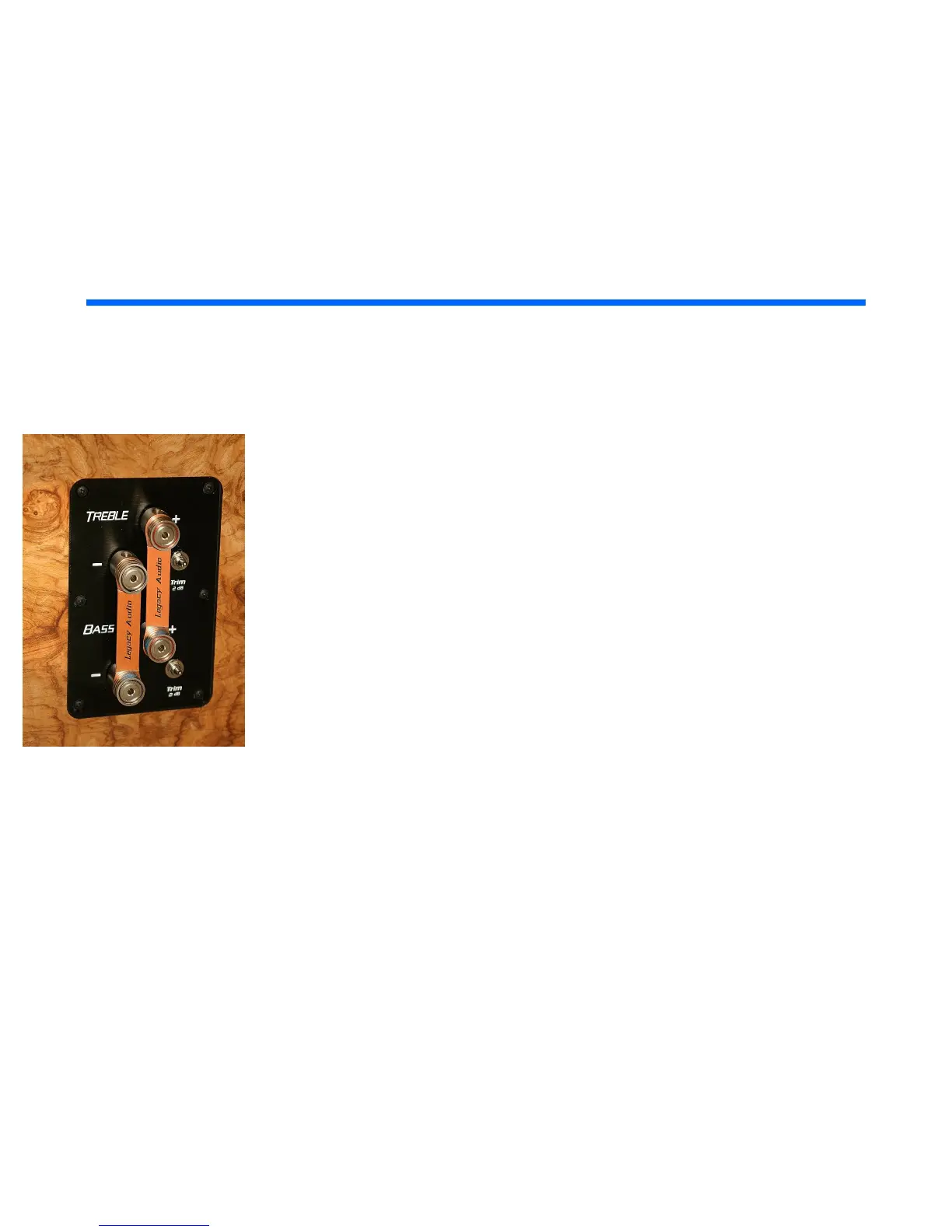

At the rear of each of your loudspeakers you will find a terminal plate
housing two rows of jumpered binding posts. The upper row is the input to
the "satellite" portion of the speaker. The lower row is the input to the
"subwoofer" portion of the speaker. When left in place, the factory installed
jumper bars allow the speaker to be driven with a single channel
of amplification. (If biamping, or biwiring, be sure to remove the jumper
bars.)
Connect each channel of your amplifier to a loudspeaker via the five-way
gold binding posts provided. Dual banana plugs or gold plated spade lugs
are recommended means of termination. Be sure that you observe polarity
when making the connections. The positive (+) terminal of the amplifier
should be connected to the positive terminal of the loudspeaker. The
negative (-) terminal of the amplifier should be connected to the negative
terminal of the loudspeaker.
Speaker Connections
