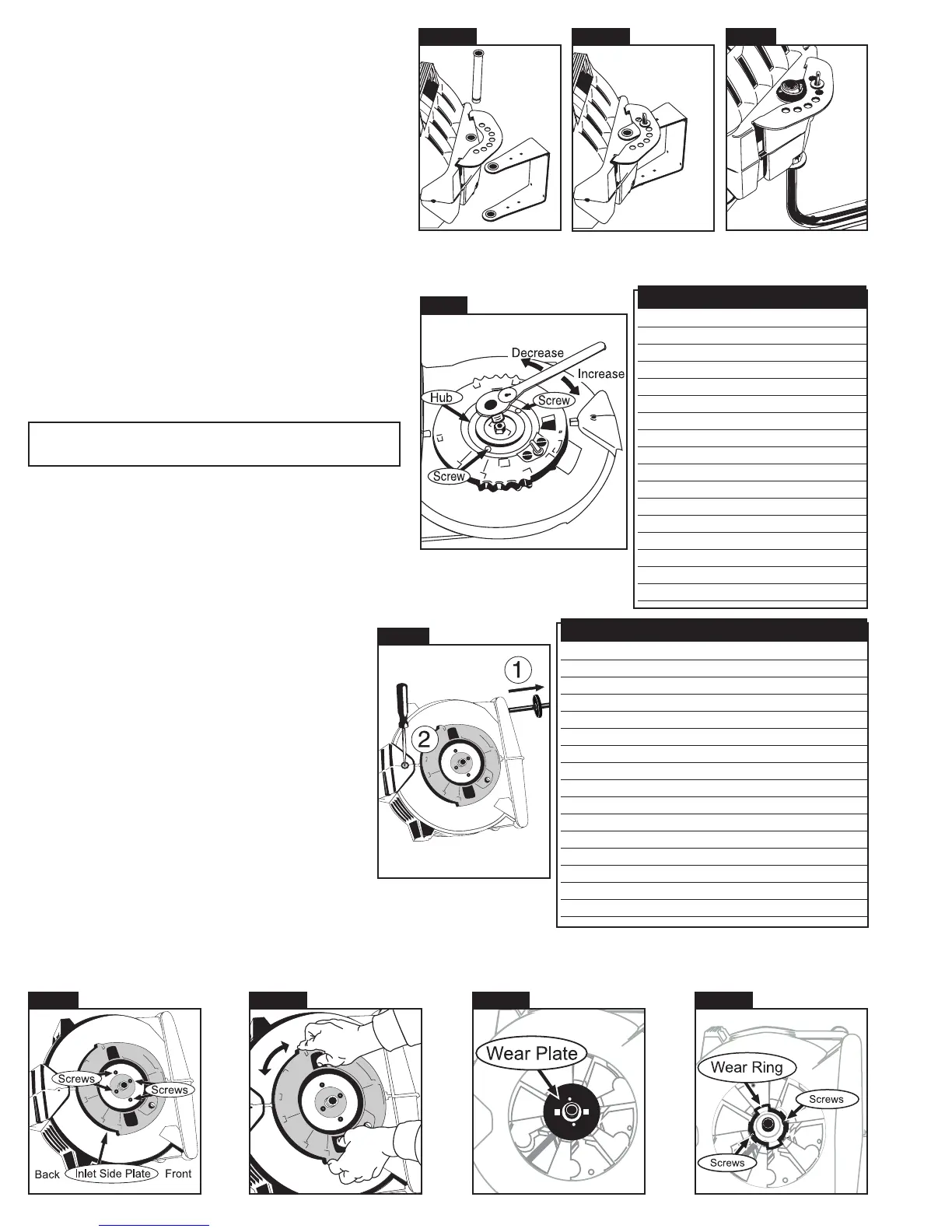

SEVEN POSITION LOCKING BRACE
LEVELWIND retractable hose reels can swing freely on bracket
or can be locked in one of seven positions, allowing for specific
mounting requirements.
Standard bracket
1) Remove bracket rod from reel. (SEE FIGURE 5A)
2) Place seven position locking brace over bracket so that bracket
rod holes are aligned. Replace bracket rod so that brace, reel
& bracket are attached. Insert hitch-pin clip through end of
bracket rod.(SEE FIGURE 5B)
3) Rotate bracket so that it is at desired angle & lock into place
with fastener. (SEE FIGURE 5B)
Maintenance Procedures
TENSION ADJUSTMENT:
This reel is preloaded with spring tension that is set at the factory.
If the reel becomes completely un-tensioned, please identify your
hose reel model number referenced in the Factory Preset Tensioning
Table to find out how many turns are needed for proper tensioning.
If a heavy air tool is attached to the end of the hose, you may need
to add tension to overcome the weight of this tool. DO NOT EXCEED
one full turn past the number of turns listed in the Factory Preset
Tensioning Chart below.
1) Lay reel on its side. ( SEE FIGURE 7 )
2) Place wrench on hub fitting plate nut. HOLD WRENCH FIRMLY.
3) Unscrew hub. DO NOT REMOVE SIDEPLATE.
4) Turn wrench either ½ turn or no more than one full turn. Turn
clock wise to increase tension. Turn counterclockwise to
decrease tension.
5) Replace hub plate screws and tighten. Return reel to mounting bracket.
HOSE REPLACEMENT:
To ensure proper performance, please consult the Hose
Replacement Kit table for the appropriate part number
to order. Call 1(800) 645-8258 to order kit.
Replacement Hose Kits
1) Pull entire length of hose out of reel. ( SEE FIGURE 8 )
2) While entire length of hose is out of the reel, place
long screw driver (3/8 in. in diameter (9 mm)) all the
way though the hole located at the back portion of
reel. This eliminates any chance for the reel to retract
while replacing hose.
Sideplate removal
3) Locate inlet sideplate. Remove four fasteners (SEE FIGURE 9 ). While placing fingers on grooves located on the top and bottom of sideplate,
depress locking tabs at the same time with thumbs (SEE FIGURE 10). Rotate side plate either way until sideplate unlocks. Remove sideplate.
4) Remove wear plate (SEE FIGURE 11). Unscrew two fasteners on wear ring and remove wear ring (SEE FIGURE 12).
2
Replacement Hose Kits
Model # Description
RP005005 Replacement Hose Assembly for L8305
RP005005-N Replacement Hose Assembly for L8305N
RP005005-EU Replacement Hose Assembly for L8305-EU
RP005006 Replacement Hose Assembly for L8306
RP005006-EU Replacement Hose Assembly for L8306-EU
RP005008 Replacement Hose Assembly for L8310
RP0050058-EU Replacement Hose Assembly for L8310-EU
RP005035 Replacement Hose Assembly for L8335
RP005035-EU Replacement Hose Assembly for L8335-EU
RP005023 Replacement Hose Assembly for L8344
RP005069 Replacement Hose Assembly for L8345
RP005047 Replacement Hose Assembly for L8347
RP005049 Replacement Hose Assembly for L8349, L8346
RP005069 Replacement Hose Assembly for L8350
RP005069-EU Replacement Hose Assembly for L8350-EU
TOOLS REQUIRED:
Phillips Screw Driver, 3/4 in. Socket Wrench
Fig. 5a
Fig. 5b
Fig. 6
Factory Preset Tensioning Table
Model # # of Turns
L8305 3
L8305N 3
L8305-EU 3
L8306 5
L8306-EU 5
L8310 4
L8310-EU 4
L8335 4
L8335-EU 4
L8344 4
L8345 4
L8346 4
L8347 4
L8349 4
L8350 11
L8350-EU 11
Fig.7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Optional Bench/High Wall
Mounting Bracket
(see figure 6)
