12

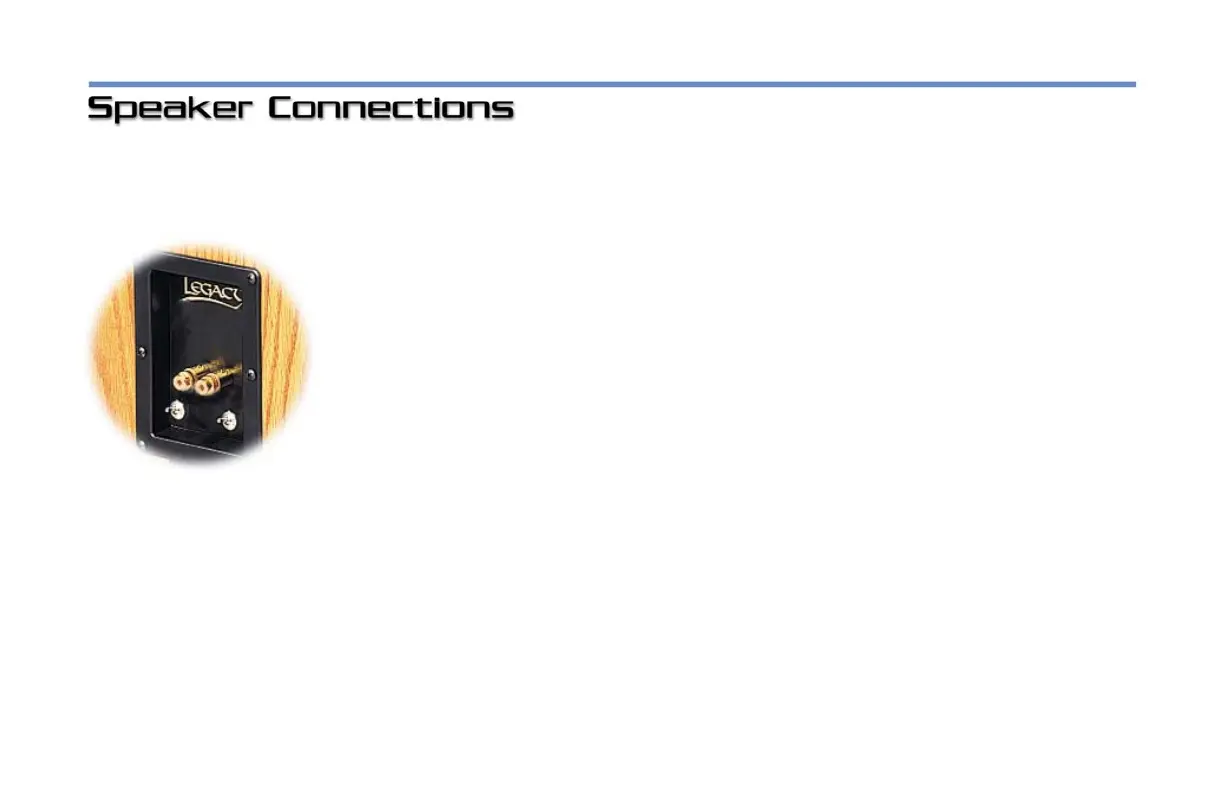

The Terminal Plate
At the rear of each of your loudspeakers you will find a terminal plate
housing two gold binding posts and two heavy duty toggle switches.
Connect each channel of your amplifier to a loudspeaker via the five-way
gold binding posts provided. Dual banana plugs or gold plated spade lugs
are recommended means of termination. Be sure that you observe polarity
when making the connections. The positive (+) terminal of the amplifier
should be connected to the positive terminal of the loudspeaker. The
negative (-) terminal of the amplifier should be connected to the negative
terminal of the loudspeaker.
