Speaker Connections
The standard VALOR system provides four channels of amplification internally for the
subwoofers, bass drivers, midwoofer and ambient array. You will need to supply one
channel of amplification of 60 watts or greater, for the midrange and tweeter section of
each speaker. VALOR can be built with internal amplification for the entire speaker, or with
fewer internal amplifiers - should the listener prefer to use external amps. Three
professional grade 15 foot balanced XLR cables are provided for each speaker.

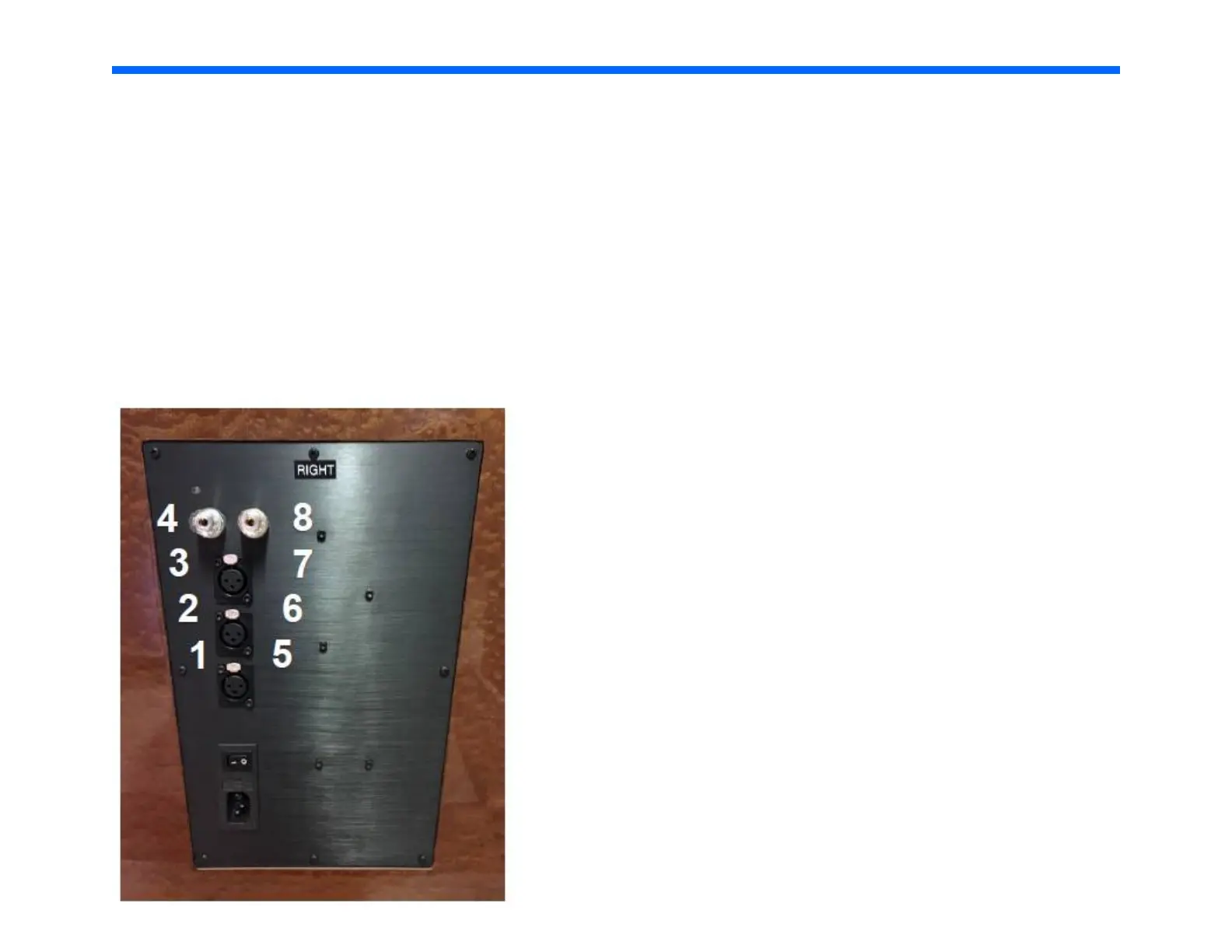

Wavelet processor output connections:
1 Left speaker subwoofer amplifier (internal 1000 watts)
2 Left speaker bass (internal 750 watts)
3 Left speaker midwoofer (internal 500 watts)
4 Left midrange/tweeters amplifier (user provided)
5 Right speaker subwoofer amplifier (internal 1000 watts)
6 Right speaker bass (internal 750 watts)
7 Right speaker midwoofer (internal 500 watts0
8 Right speaker midrange/tweeters amplifier (user provided)
