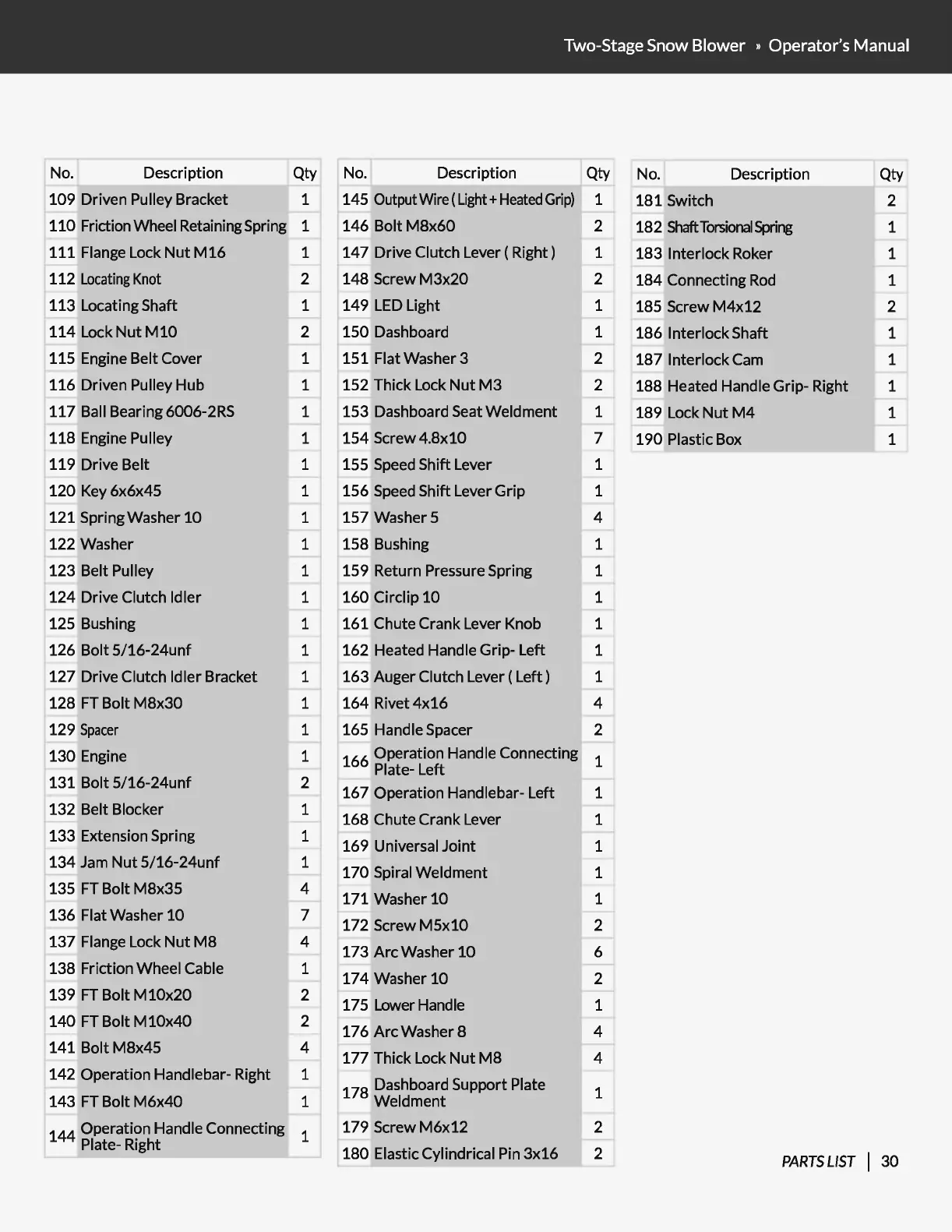

LEGEND FORCE 1005487565 - Page 31

No.
Description
Qty No.
Description
Qty
No.
Description
Qty
109 Driven Pulley Bracket
1
145 Output Wire (Light+
Heated Grip)
1
181 Switch 2
110 Friction Wheel Retaining Spring
1
146 Bolt M8x60 2
182
ShaftTorsionaiSpring
1
111 Flange Lock
Nut M16
1
147 Drive Clutch Lever (Right)
1
183 Interlock Raker 1
112
Locating Knot 2 148 Screw M3x20 2
184 Connecting Rod 1
113 LocatingShaft 1
149 LED Light 1
185 Screw M4x12 2
114 Lock Nut M10 2 150 Dashboard 1
186 Interlock Shaft 1
115 Engine Belt Cover
1 151 Flat Washer 3 2
187 Interlock Cam 1
116 Driven Pulley Hub
1 152 Thick Lock
Nut M3 2
188 Heated Handle Grip- Right
1
117 Ball Bearing 6006-2RS
1 153 Dashboard Seat Weldment 1
189 Lock Nut M4 1
118 Engine Pulley
1
154 Screw 4.8x10 7
190 Plastic Box 1
119 Drive Belt 1 155
Speed Shift Lever 1
120 Key 6x6x45 1 156 Speed Shift Lever Grip 1
121 Spring Washer
10
1 157 Washer 5 4
122 Washer 1
158 Bushing
1
123 Belt Pulley
1
159 Return Pressure Spring
1
124 Drive Clutch Idler 1
160 Circlip 10
1
125 Bushing
1 161 Chute Crank Lever Knob 1
126 Bolt 5/16-24unf 1 162 Heated Handle Grip- Left 1
127 Drive Clutch Idler Bracket 1 163 Auger Clutch Lever ( Left) 1
128
FT Bolt M8x30 1 164 Rivet 4x16 4
129
Spacer
1
165 Handle Spacer
2
130 Engine
1
166
Operation Handle Connecting
1
Plate- Left
131 Bolt 5/16-24unf 2
167 Operation Handlebar- Left
1
132 Belt Blocker 1
168 Chute Crank Lever 1
133 Extension Spring 1
169 Universal Joint 1
134 Jam Nut 5/16-24unf 1
170 Spiral Weldment 1
135
FT Bolt M8x35 4
171 Washer
10 1
136 Flat Washer
10 7
172 Screw
M5x10 2
137 Flange Lock Nut M8
4
173
Arc Washer 10 6
138 Friction Wheel Cable 1
174 Washer 10 2
139FT Bolt M10x20 2
175 LowerHandle 1
140 FT Bolt M10x40 2
176 Arc Washer 8 4
141 Bolt M8x45 4
177 Thick Lock Nut M8 4
142 Operation Handlebar- Right 1
178
Dashboard Support Plate
143
FT Bolt M6x40 1
Weldment
1
144
Operation Handle Connecting
1
179 Screw M6x12 2
Plate- Right
180 Elastic Cylindrical Pin 3x16
2
PARTS LIST I 30
