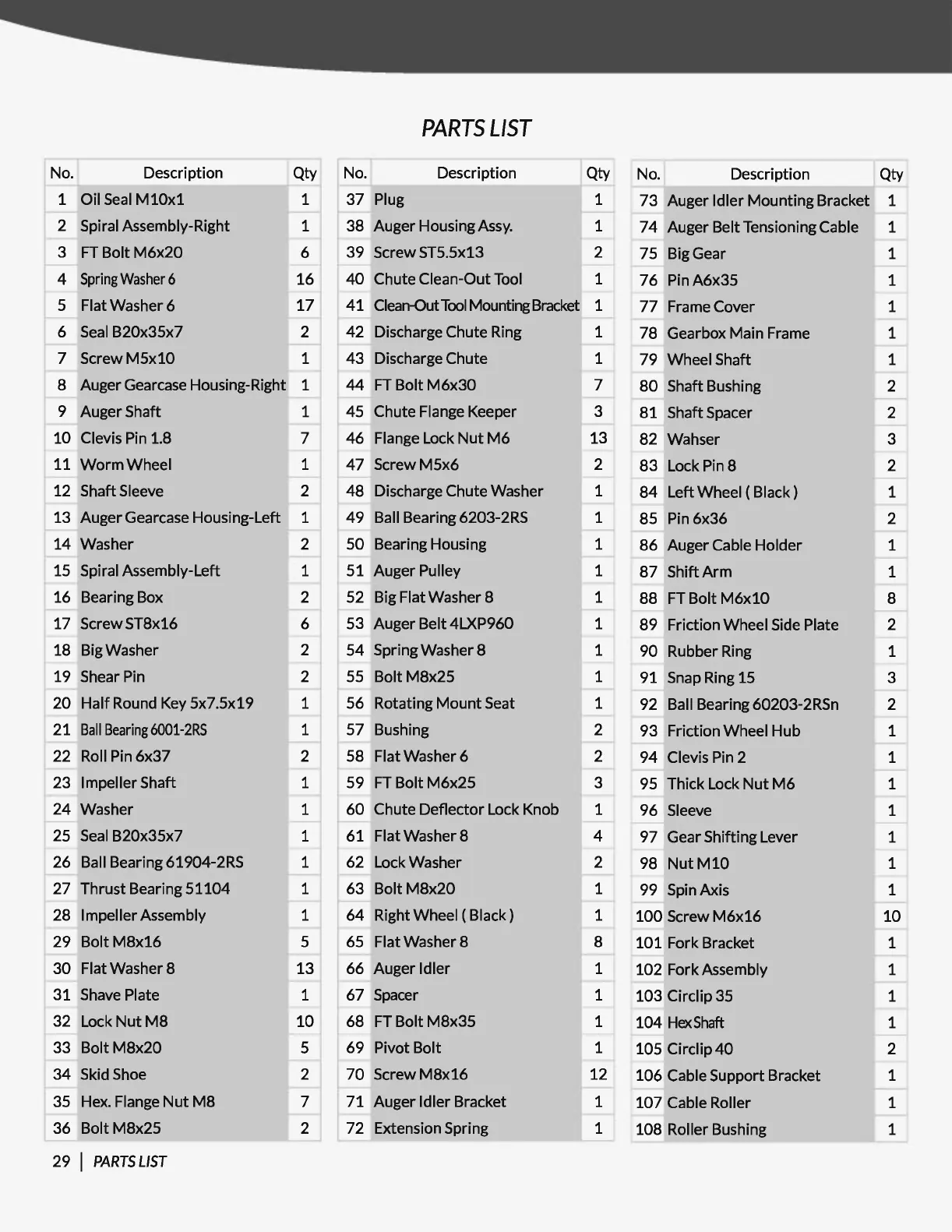

PARTS
LIST
No.
Description
Qty No.
Description
Qty
No.
Description
Qty
1 Oil
Seal
M10x1 1
37 Plug
1
73 Auger Idler Mounting Bracket
1
2
Spiral Assembly-Right
1
38 Auger Housing
Assy.
1
74
Auger Belt Tensioning Cable
1
3
FT
Bolt M6x20 6 39 Screw
STS.Sx13
2
75
Big Gear
1
4
Spring
Washer
6
16
40
Chute Clean-Out
Tool
1
76 PinA6x35 1
5
Flat Washer 6
17
41
Clean-Out
Tool
Mounting
Bracket
1
77 Frame Cover 1
6 Sea1B20x35x7 2 42
Discharge Chute Ring
1
78 Gearbox Main Frame 1
7 ScrewMSx10 1 43
Discharge Chute
1
79 Wheel Shaft 1
8
Auger
Gearcase
Housing-Right
1
44
FT
Bolt M6x30 7
80 Shaft Bushing
2
9
Auger Shaft
1 45
Chute Flange Keeper
3
81 Shaft Spacer
2
10
Clevis
Pin
1.8 7 46
Flange Lock
Nut
M6
13
82 Wahser 3
11 Worm Wheel 1
47
Screw M5x6 2
83
Lock
Pin
8 2
12 Shaft Sleeve 2 48 Discharge Chute Washer 1
84
Left Wheel ( Black) 1
13 Auger Gearcase Housing-Left
1
49
Ball Bearing 6203-2RS
1
85
Pin
6x36 2
14
Washer 2
50 Bearing Housing
1
86 Auger Cable Holder
1
15
Spiral Assembly-Left
1
51 Auger Pulley
1
87 Shift Arm 1
16
Bearing Box
2
52 Big Flat Washer 8
1
88
FT
Bolt M6x10 8
17 Screw ST8x16 6
53 Auger Belt 4LXP960
1
89 Friction Wheel
Side
Plate 2
18 Big Washer 2 54 Spring Washer 8 1
90 Rubber
Ring
1
19 Shear
Pin
2
55
BoltM8x25
1
91
Snap
Ring
15
3
20
Half Round Key Sx7.5x19
1 56
Rotating
Mount
Seat
1
92 Ball Bearing 60203-2RSn 2
21
Ball
Bearing
6001-2RS
1 57
Bushing
2
93 Friction Wheel Hub 1
22 Roll Pin6x37 2 58 Flat Washer 6 2
94 Clevis
Pin
2 1
23
Impeller Shaft
1 59
FT
Bolt M6x25 3
95 Thick Lock
Nut
M6
1
24 Washer 1 60 Chute Deflector Lock Knob 1
96
Sleeve
1
25 SeaiB20x35x7 1 61 Flat Washer 8 4
97 Gear Shifting Lever 1
26 Ball Bearing 61904-2RS 1 62 Lock Washer 2
98
NutM10
1
27 Thrust Bearing 51104 1 63
BoltM8x20
1
99 SpinAxis 1
28
Impeller Assembly
1 64
Right Wheel ( Black)
1
100 Screw M6x16
10
29 Bolt M8x16 5 65 Flat Washer 8 8
101 Fork Bracket 1
30 Flat Washer 8
13
66 Auger Idler
1
102 Fork Assembly
1
31
Shave
Plate 1
67
Spacer
1
103 Circlip 35
8
32 Lock
Nut
M8
10
68
FT
Bolt M8x35 1
104
HexShaft
1
33 Bolt M8x20
5
69 Pivot Bolt 1
105 Circlip
40
2
34 SkidShoe 2 70 Screw M8x16 12
106 Cable Support Bracket
1
35
Hex.
Flange
Nut
M8
7
71 Auger Idler Bracket
1
107 Cable Roller 1
36 Bolt M8x25 2
72 Extension Spring
1
108 Roller Bushing
1
29
I
PARTS
LIST
