NXT Basic Car Building Instructions
© 2008 LEGOengineering.com & Tufts University Center for Engineering Educational Outreach
11

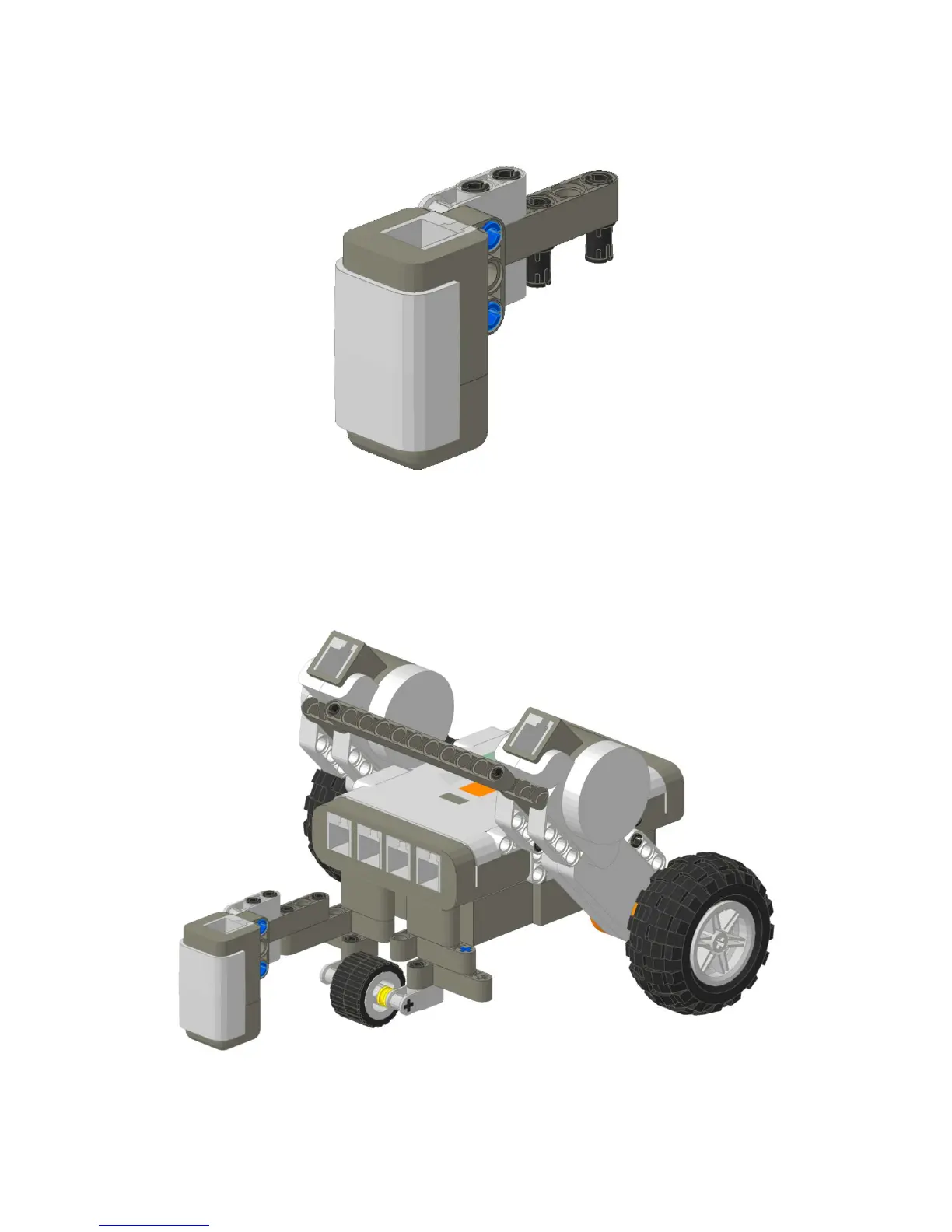

Step B.1: Light Sensor Assembly
Insert a black connector peg into the first and third holes of the 5-hole beam and an
extended black connector peg into the fourth and fifth holes. Attach an axel joiner to the
extended black connector pegs. Insert a friction axel into each hole of the axel joiners
and attach the light sensor to the friction axels.
Step B.2: Attach Sensor to the Car
Attach the light sensor to the car from Step A.6. The 5-hole beam should connect to the
top of the L-beam on the front wheel assembly.
To Next Page
