NXT Basic Car Building Instructions
© 2008 LEGOengineering.com & Tufts University Center for Engineering Educational Outreach
5
Step A.2: Attach Motors to the NXT
Side View Top View

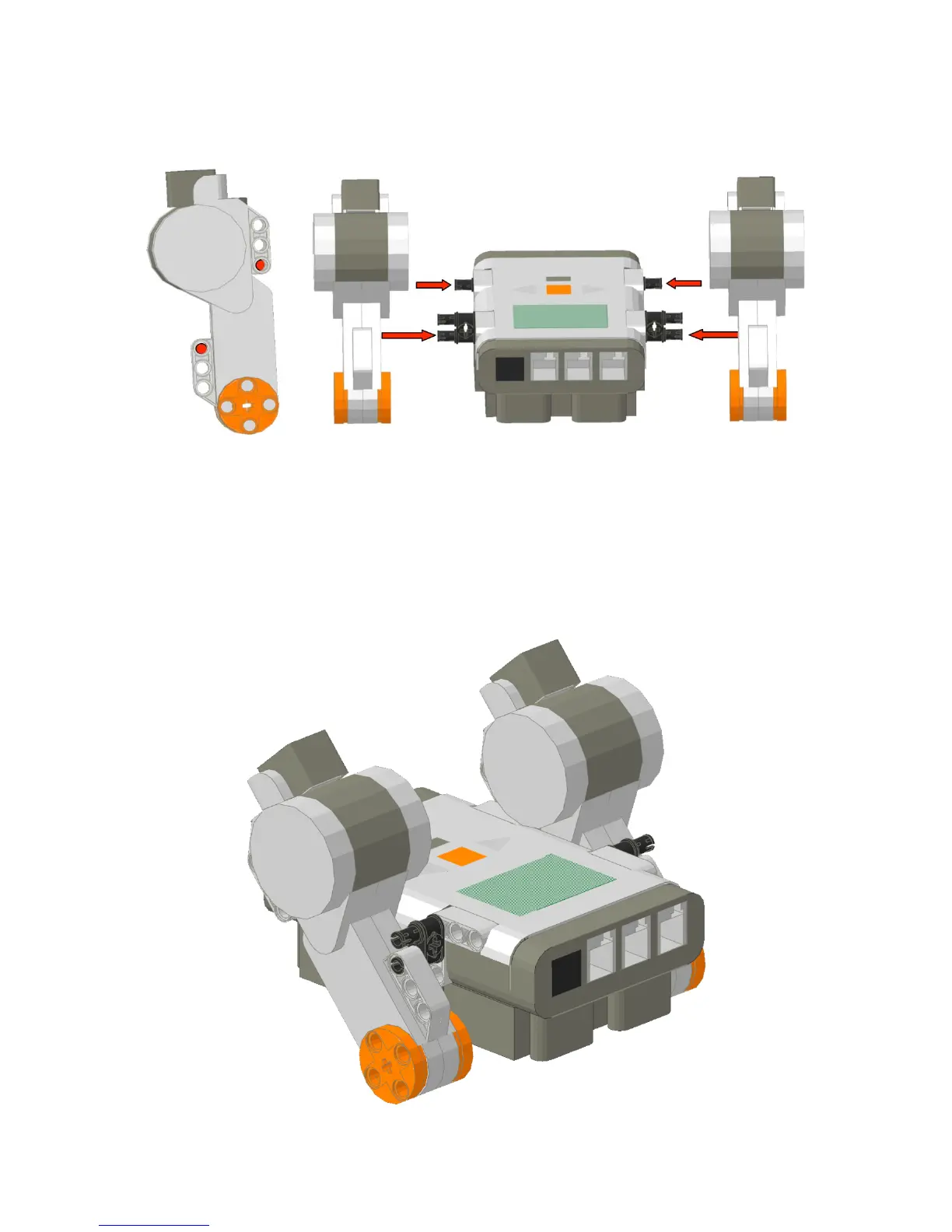

Attach the motors (one per side) to the NXT using the double black connector pegs and
the short black connector pegs attached to the NXT. The red dots in the side view identify
which holes on the motor attach to the pegs. Your NXT should look like the below
picture before moving on to the next step.
Note: The top connection of the double black connector peg is not connected to
anything.
