LEGO 9797 - Front Wheel Assembly Base Construction

NXT Basic Car Building Instructions
© 2008 LEGOengineering.com & Tufts University Center for Engineering Educational Outreach
8
Step A.5: Front Wheel Assembly Base

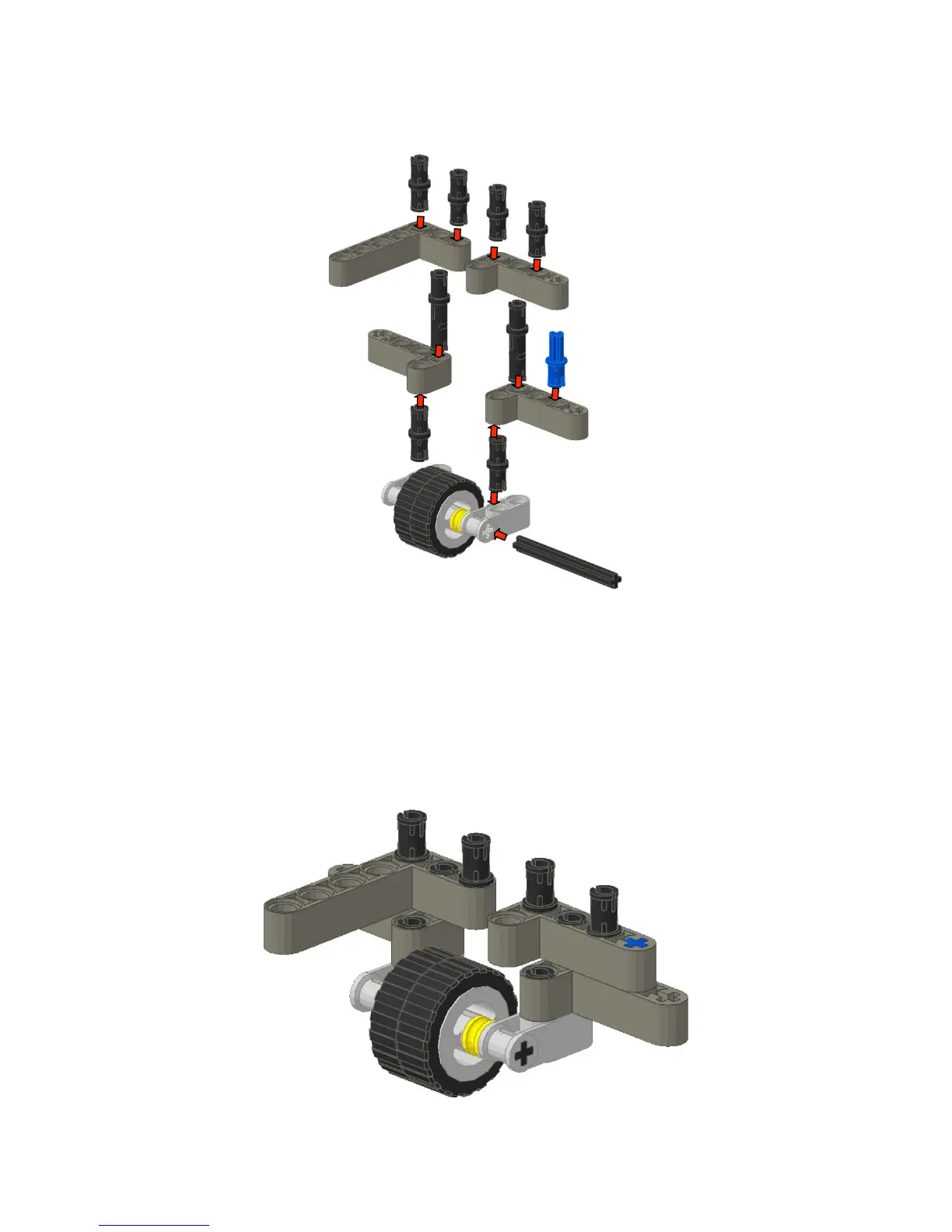

Take an L-beam and attach a black connector peg to the first and third hole on the smaller
part of the L. Take a small L-beam and attach a black connector peg to the first and third
hole on the larger part of the L. In the second hole between the two connector pegs on
each L-beam, attach an extended black connector peg. Also attach a friction axel to the
fourth hole on the small L-beam. Now attach two small L-beams to the protruding pins
below the other L-beams. Attach a black connector peg to the second hole on the small
part of the L. Now attach an axel joiner on each of the protruding connector pegs below
the small L-beams. Then, align the wheel between two half bushings and slide the 5-axel
through the axel joiners.
