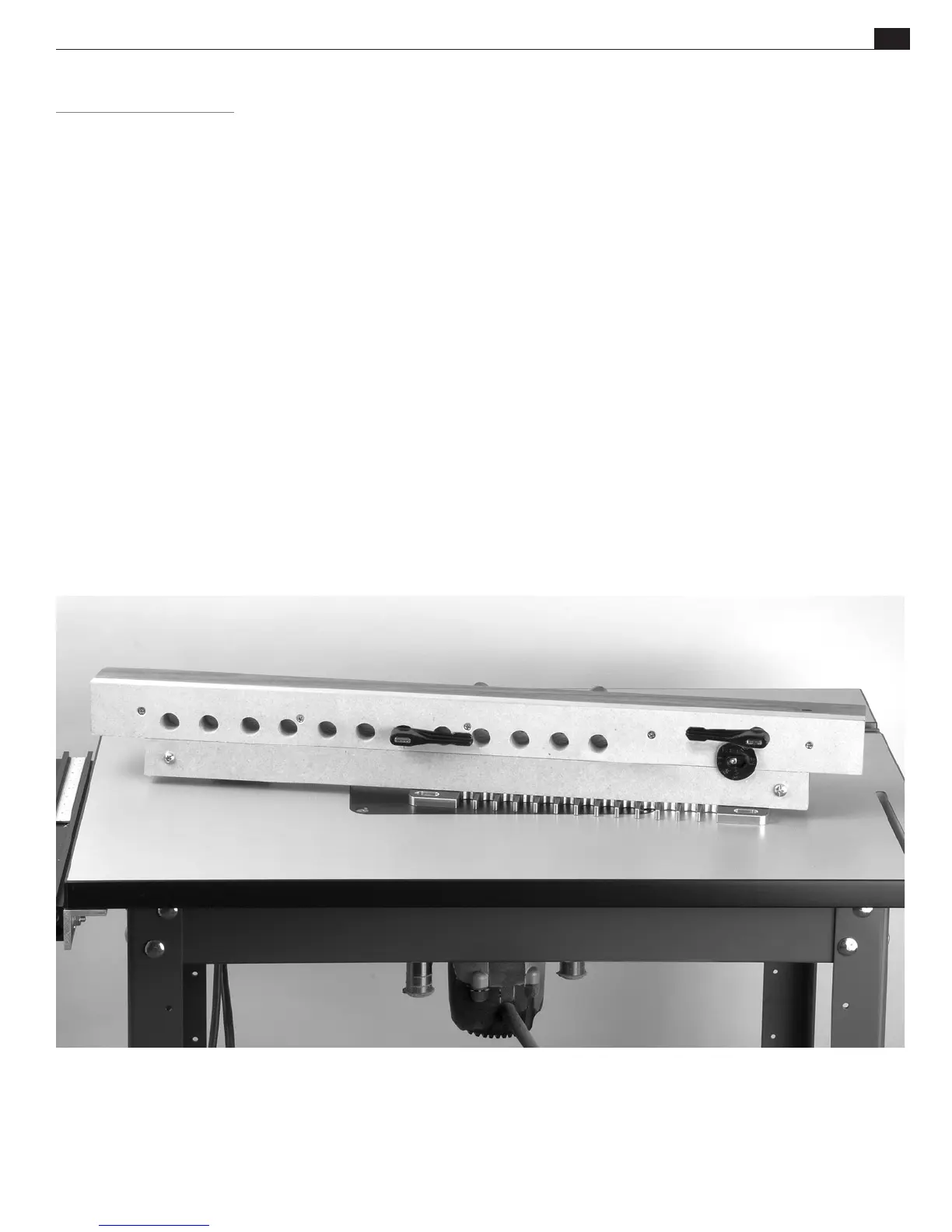

The heart of the R9PLUS Joinery System is the beam. A typical
beam, shown below, is 30"[762mm] long. A 30"[762mm]
beam can accommodate board widths of up to 18"[457mm].
Beams can be made shorter (minimum 20"[508mm]) or
longer, in 10"[254mm] increments. Because of the template’s
unique “step over” ability, beams can be made longer to suit
any width project. The beam is equally suited to router table or
bench operation.
The following instructions will guide you through the beam
making process. Care in building the beam will ensure great
joinery every time with the R9PLUS. In addition to these
instructions, a two page drawing, complete with all dimension
information, is provided at the end of the user guide.
Important: Please use this chapter’s step-by-step instructions
in conjunction with the technical drawing on pages 38-39 of
the Appendix.
R9PLUS BENCH OPERATION
CHAPTER 1
Making the Beam
