+ 8 to enable HB alarm
+ 16 to enable LBA alarm
AL.nr Alarm 1 Alarm 2 Alarm 3
0 disabled disabled disabled
1 enabled disabled disabled
2 disabled enabled disabled
3 enabled enabled disabled
4 disabled disabled enabled
5 enabled disabled enabled
6 disabled enabled enabled
7 enabled enabled enabled
Select number of
enabled alarms
0 No function (key disenabled)
1 MAN / AUTO controller
2 LOC / REM
3 HOLD
4 Alarms memory reset
5 SP1 / SP2 Selection
6 Start / Stop selftuning
7 Start / Stop autotuning
8 Set / Reset outputs Out 1... Out 4
+ 16 disables the „back menu“ function (Auto/Man + F
keys) in the configuration menus
b u t t
Function of M/A keys
Function of LEDs
Definition der
Anzeigefunktion SV
diSP Lower display (SV) function
0 SSP - setpoint enabled
1 InP.2 - aux input
2 Control output value
3 Deviation (SSP - PV)
Val. Function
0 none
1 MAN/AUTO controller
2 LOC / REM
3 HOLD
4 Selftuning enabled
5 Autotuning enabled
6 IN1 repetition
7 Enable serial dialogue
8 Error present
9 Softstart running
10 SP1...SP2 Indication
11 Set point gradient running
+ 16 LED flashes if active
Default: 3
Default: 1
Default: 0
Default: 1
Default: 10
Default: 20

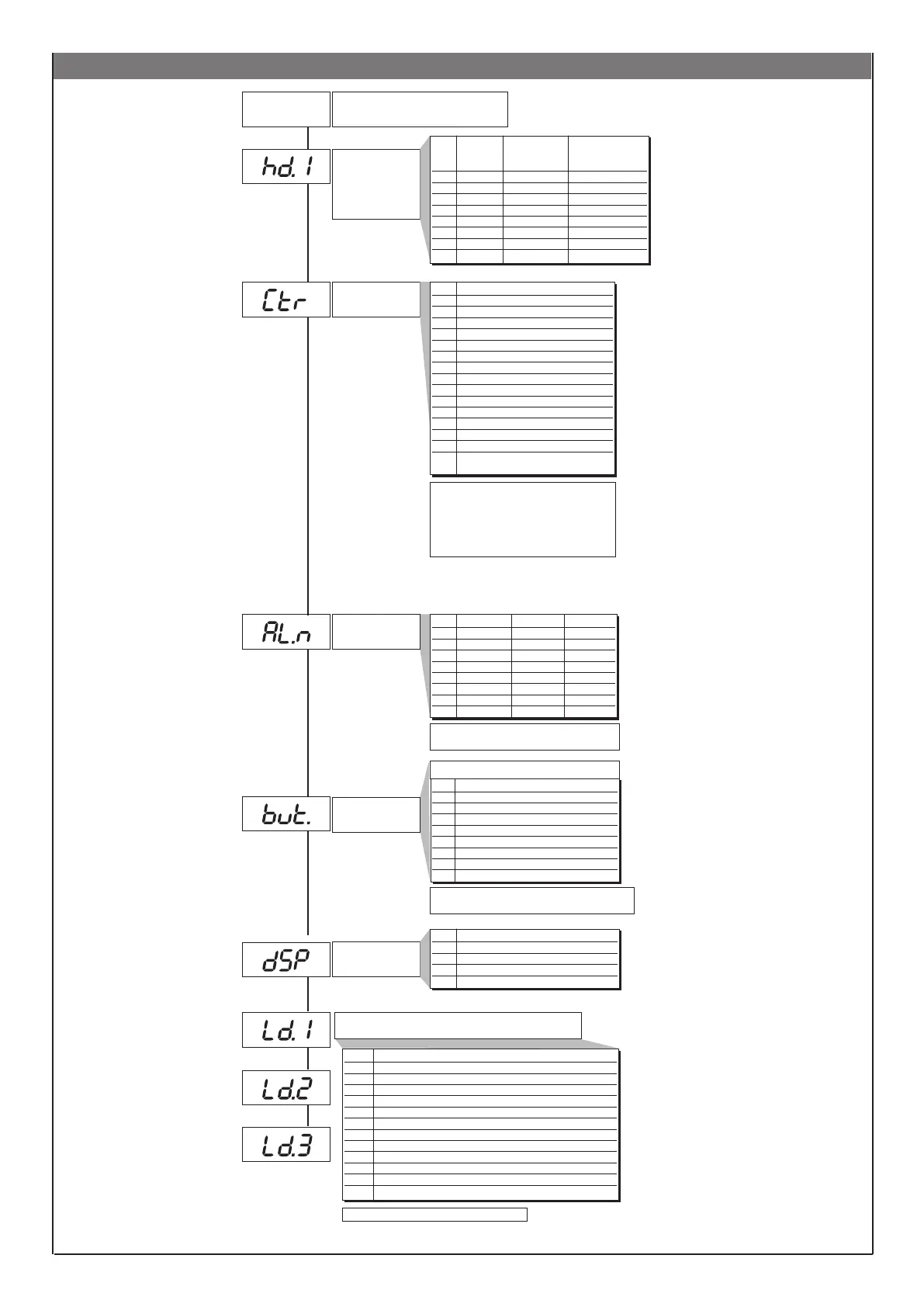

Hrd menu
Hrd
Hardware configuration
Enable multiset
instrument control
by serial
Val Multiset Reversed LED Instrument
(2 SP) state control by
serial
0
1 x
2 x
3 x x
4 x
5 x x
6 x x
7 x x x
Control type
Val Control type
0 P heat
1 P cool
2 P heat / cool
3 PI heat
4 PI cool
5 PI heat / cool
6 PID heat
7 PID cool
8 PID heat / cool
9 ON-OFF heat
10 ON-OFF cool
11 ON-OFF heat / cool
12 PID heat + ON-OFF cool
13 ON-OFF heat + PID cool
14 PID heat + cool with relative gain
(see C.MEd parameter)
Selection of derivative action sampling time:
+ 0 sample 1 sec.
+ 16 sample 4 sec.
+ 32 sample 8 sec.
+ 64 sample 240 msec.
Note: LbA alarm is not enabled with ON/OFF type
control
Default: 0
Default: 70
