Lekkie ONENUT - TIPS AND TRICKS; TOOLS REQUIRED; INSTALL

www.lekkie.Techlekkie onenuT user Manual
A
B

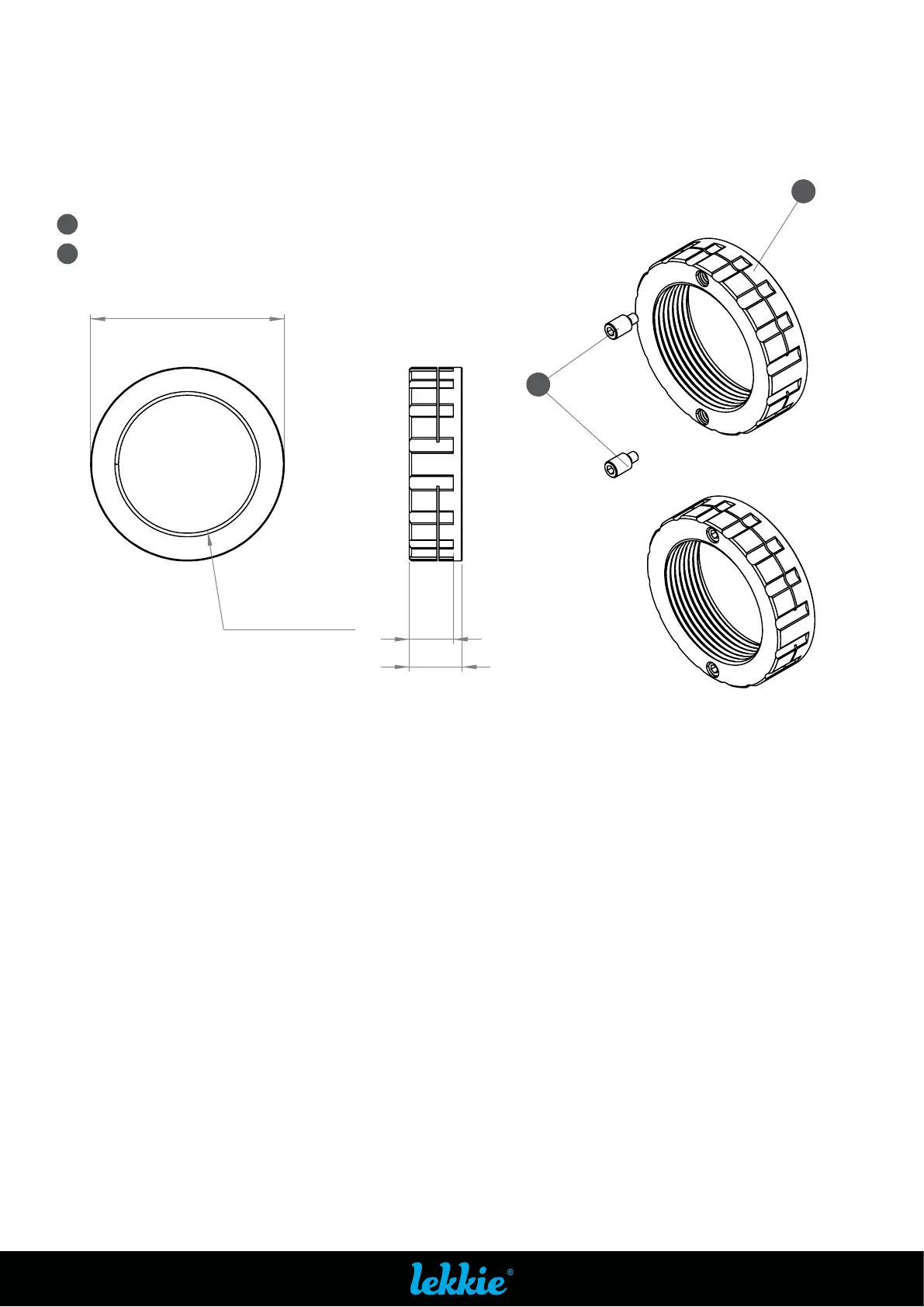

INCLUDES
1X LEKKIE ONENUT
2X M4 GRUB SCREWS
A
b
FOR LEKKIE ONENUT
COMPATABLE WITH BAFANG BBS01/02HD, TRUCKRUN M05
INSTALL
Before fitting the Lekkie ONENUT make sure the locking plate is mounted correctly with no
gaps between the motor and plate. There must be at least 8mm of motor thread extending past
locking plate for the ONENUT locking function to work as intended.
A correctly installed plate should never come lose with a ONENUT. Please contact us if you are
unsure of your setup.
1. Using the 2mm Allen Key loosen off the 2x Grub Screws so that they can move freely (no need
to remove them) and screw the Lekkie ONENUT onto the motor (with the locking plate in
place), ensure the teeth on the locking plate engage with the BB Shell*.
2. Tighten the ONENUT up to the reccommended Torque setting (50-60Nm) using the Lekkie
SIXTEEN-44 Socket or Shimano 16-notch BB tool.
TIPS AND TRICKS
TOOLS REQUIRED
• Lekkie SIXTEEN-44 Socket/16 notch Shimano BB tool (spanner for Shimano 44m 16notch).
• 2mm Hex/Allen Key and torque tool
12
10
44
M33 X 1.5MM
b
A
* If a motor has been run loose, the locking plate may have gouged out sections where the teeth contact
theBBShell.Ifthisisthecase,theendfaceoftheBBShellwillrequirere-facing/lingatsothatthe
teeth can get a good ‘bite’ into the frame.
