GENERALMUSIC S.p.A. Italy
SCHEMATIC DIAGRAM
Pegasus/Poseidon

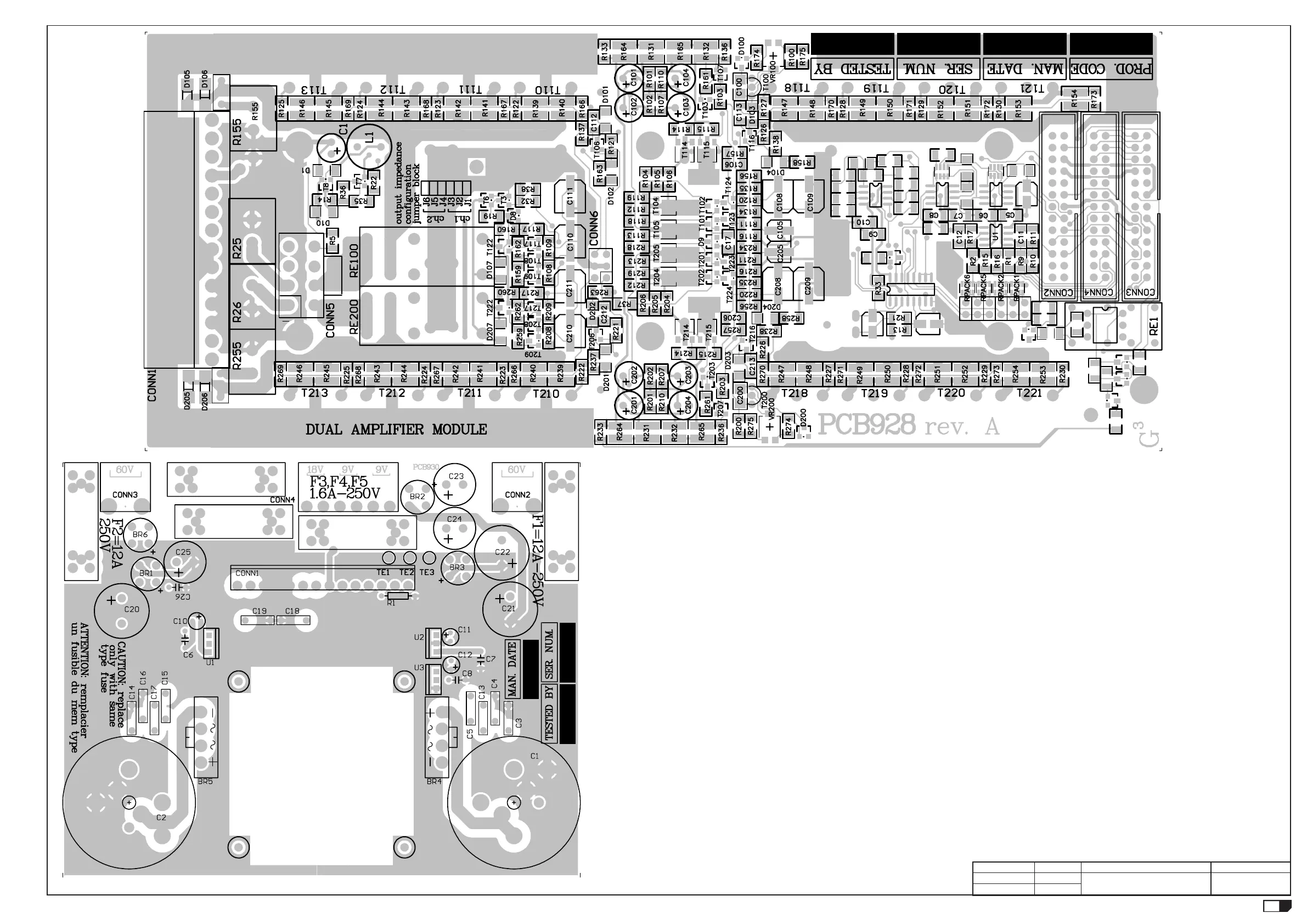

Supply & Amplifier Board Pcb Layout
(COMPONENT SIDE)
DRW: G.DINI
APP: D.ROSSETTI REV: A
DATE: 03-04-03CKD: G.RICCI
ALL RIGHTS ARE RESERVED, NO COPIES OR
REPRODUCE THIS DOCUMENT WITHOUT
WRITTEN CONSENT BY GENERALMUSIC.
DWG: PCB928/930
Pcb# PCB930
Pcb# PCB928
