LeMond Pilot II - Console Battery and Mounting

Page 9
INSTALLATION OF PILOT

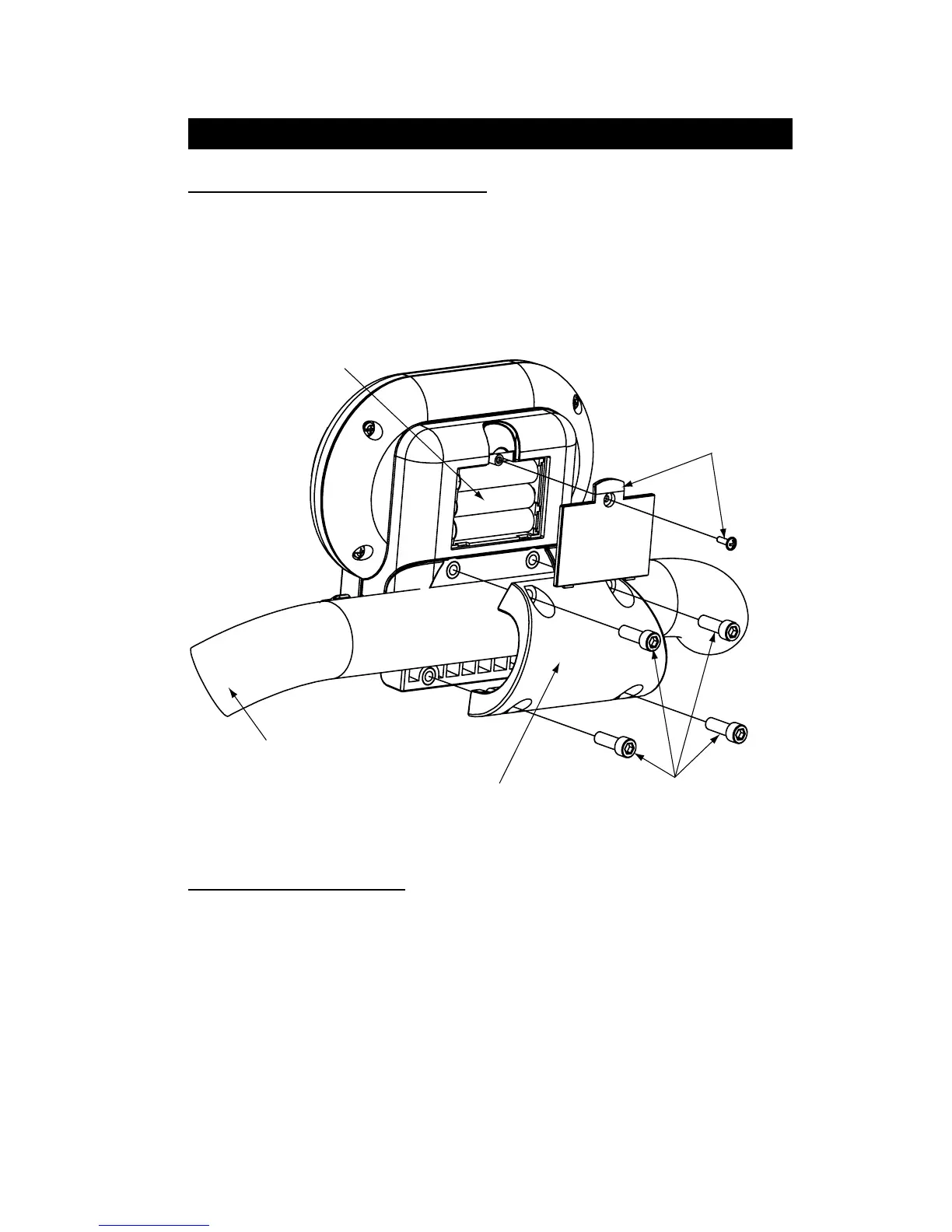

Console Battery Installation:
Loosen the battery cover screw and remove the battery 1.
cover from the console.
Insert 3 AAA batteries into the battery compartment 2.
and reinstall the battery cover.
Battery Cover &
Screw
Mounting
Screws
Handlebar
Console Clamp
Batteries, AAA x3
Console Installation:
Ensure that the console turns on.1.
Open the console clamp and align the two halves 2.
around the top center of the handlebar.
Insert a mounting screw into each hole and use a 4-mm 3.
hex key to tighten the screws.
