LENCO CS-410 User Manual

3

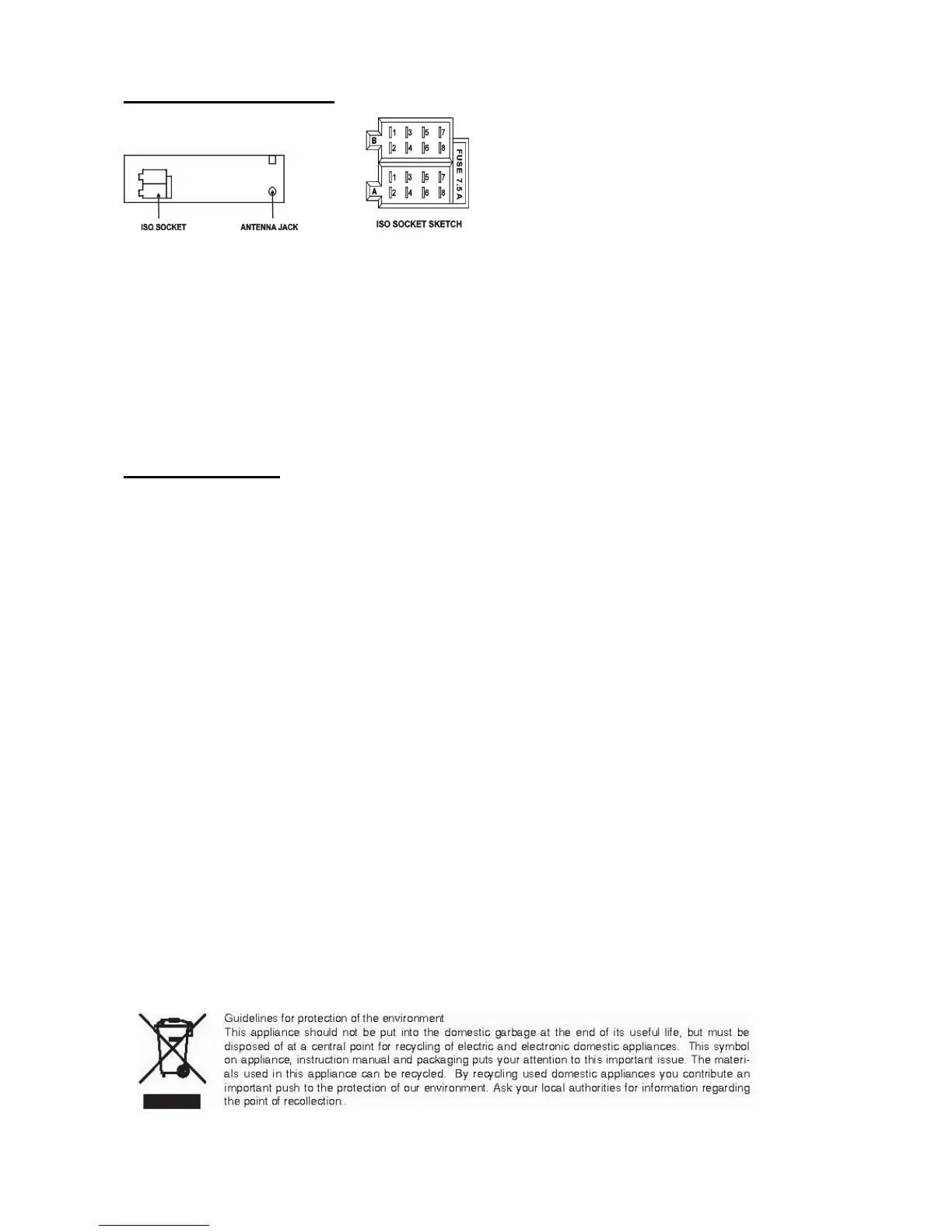

WIRES CONNECTION
CONNECTOR A
1.
2.
3.
4. Memory +12V
5. Auto Antenna Output
6.
7. 12V (To Ignition Key)
8. GROUND
SPECIFICATION
GENERAL
Supply Voltage DC 12V Negative Ground
Current Consumption Max.7A
Power Output 7Watts x 4 (at DC 14.4V)
Number of Channels 2 STEREO channels
Unit Dimensions 178(W)x108(D)x50(H)mm
FM SECTION
Frequency Range 87.5MHz-108MHz
Effective Sensitivity 3uV.
Signal to noise 50dB
AM SECTION
Frequency Range 522KHz-1620KHz
Effective Sensitivity 40dB.
Signal to noise 40dB
RCA LINE OUT
Output 1000mV@MAX.
MMC/SD or USB PLAYBACK
System MP3 audio system
Frequency Characteristics 20Hz-20KHz
Signal to Noise(MMC/SD & USB) 55dB (1KHz)
CONNECTOR B
1. Rear Right Speaker (+)
2. Rear Right Speaker (-)
3. Front Right Speaker (+)
4. Front Right Speaker (-)
5. Front Left Speaker (+)
6. Front Left Speaker (-)
7. Rear Left Speaker (+)
8. Rear Left Speaker (-)

LENCO CS-410 Specifications

General

Brand	LENCO
Model	CS-410
Category	Car Receiver
Language	English
