LENCO CS-455 BT User Manual

9

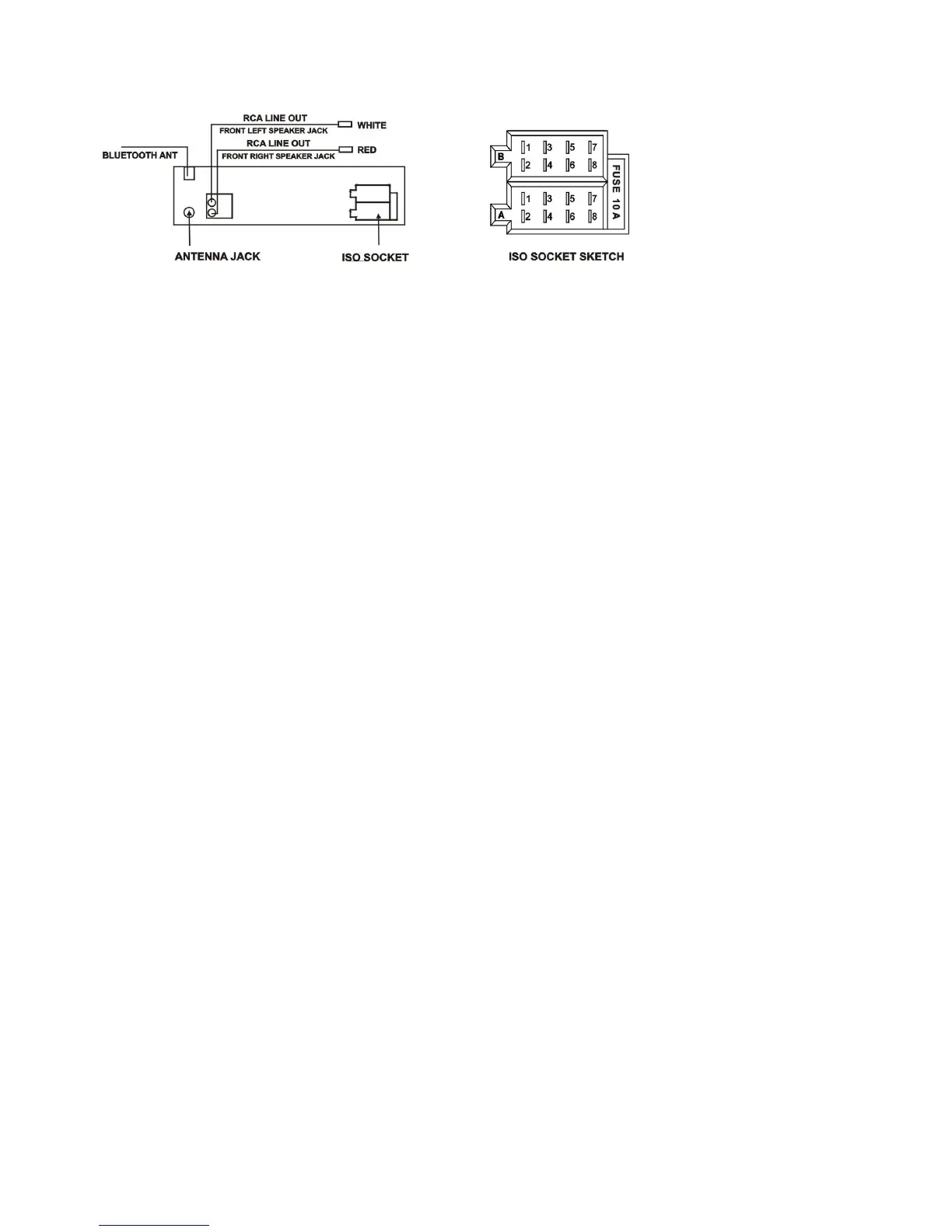

WIRES CONNECTION
CONNECTOR A
1.
2.
3.
4. Memory +12V
5. Auto Antenna Output
6.
7. ACC
8. GROUND
Notice: Some cars have special wires connection(the Memory and the ACC connection have changed), so
here support the both sides ISO socket.
CONNECTOR B
1. Rear Right Speaker (+)
2. Rear Right Speaker (-)
3. Front Right Speaker (+)
4. Front Right Speaker (-)
5. Front Left Speaker (+)
6. Front Left Speaker (-)
7. Rear Left Speaker (+)
8. Rear Left Speaker (-)

LENCO CS-455 BT Specifications

General

MP3 playback	Yes
Audio formats supported	MP3, WMA
Supported radio bands	AM, FM
Preset stations quantity	30
Line outputs (RCA)	2
Output power	160 W
RDS features	PLL
Product color	Black
Ready for iPod	-
Audio output channels	4.0 channels
Maximum power per channel	40 W
Compatible memory cards	SD
Power requirements	DC 10.8-14.4 V

Weight and Dimensions

Weight	2000 g
