Turntable Assembly:
1. REMOVING FROM CARTON:
Carefully remove the main unit with the packing material intact from the box. Remove the packing material once the
unit has been removed from the shipping carton. Be sure to locate all the accessories located in the packing material.
2. 45 ADAPTER:
Locate and remove the 45-rpm adapter from the packing material and place it in the 45 adapter cutout on the top of
the main unit.
3. TURNTABLE PLATTER:
Remove the turntable platter from the packing material and gently insert the platter into the CENTER SPINDLE on the
base of the turntable unit.
4. SLIPMAT:
Remove the black slipmat from the packaging and place it on the PLATTER.

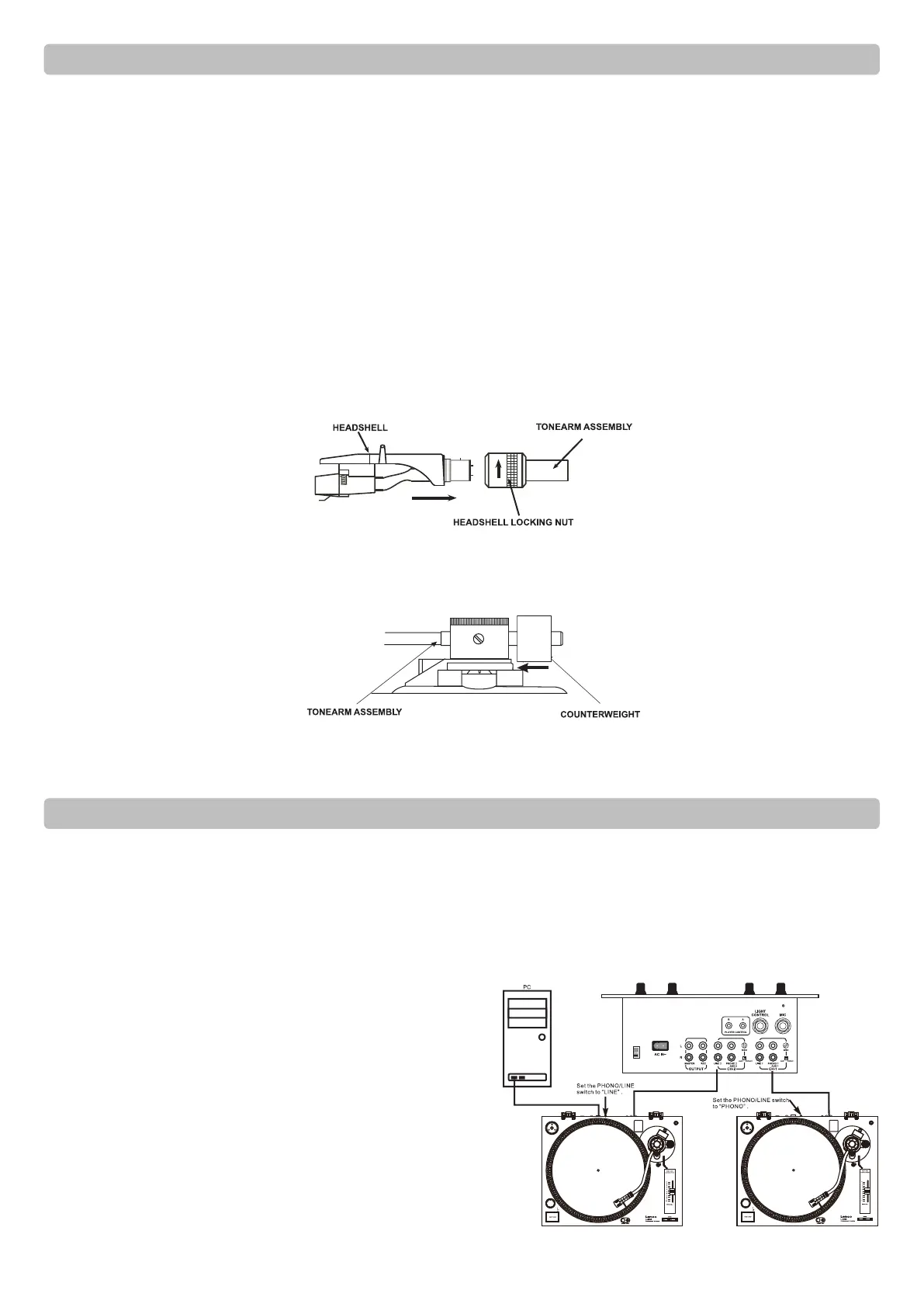

5. HEADSHELL:
Insert the HEADSHELL into the front end of the TONEARM ASSEMBLY. While holding HEADSHELL firmly into the front
end of the tonearm assembly, turn the HEADSHELL LOCKING NUT counter-clockwise to firmly secure the HEADSHELL
to TONEARM ASSEMBLY.
6. COUNTERWEIGHT:
Locate and remove the tonearm COUNTERWEIGHT from the packaging. Slide COUNTERWEIGHT onto the rear of the
TONEARM ASSEMBLY. Turn it lightly and it will screw onto the rear shaft of the tonearm.
Before connecting the unit it is advised that you also consult your current equipment instruction manual.
1.
Be sure to turn off the audio device, such as a stereo system or an amplifier, before connection.
Be sure to make all the connections before you connect the Power adapter to a power outlet.
Note: To avoid noise interference, place the Power adapter body away from your turntable as far as possible.
2. Connect the RCA cable to the PHONO input of your AMPLIFIER when you set the PHONO/LINE switch to PHONO position.
You can also use a line input by setting the PHONO/LINE switch at the rear of the turntable to LINE.
Output terminals
L (White)
R (Red)
GND (Spade)
Amplifier (Receiver)
L Channel
R Channel
GND
NOTE: Be sure to connect the ground terminal firmly to the
amplifier or receiver.
If this connection is not made or is loose, a power
source "HUM" will result.
3. Connect PC via USB cord.
