LENCO LED-2412 - Panel Overview; TV Ports and Controls

SCART: It is a connection for european
standard,it supports composite and
RGB signal input.
VIDEO/R/L: external AV signal input
and relevant right/left sound channel.
USB: USB Instruction.
VGA/AUDIO: VGA input and audio input
when VGA input.
ANT 75: Connect the antenna/cadle
TV input(75/VHF/UHF)
POWER: Turn on/off POWER
MENU: Display main MENU and
confirm MENU item selection
CH+/-: Selecting channel
VOL+/-: Adjusting Volume
SOURCE:External signal input
selection
HDMI Input: Digital signal input from
HDMI video connector
13.
14. CI CARD: It only for digital TV
EARPHONE: Earphone Output

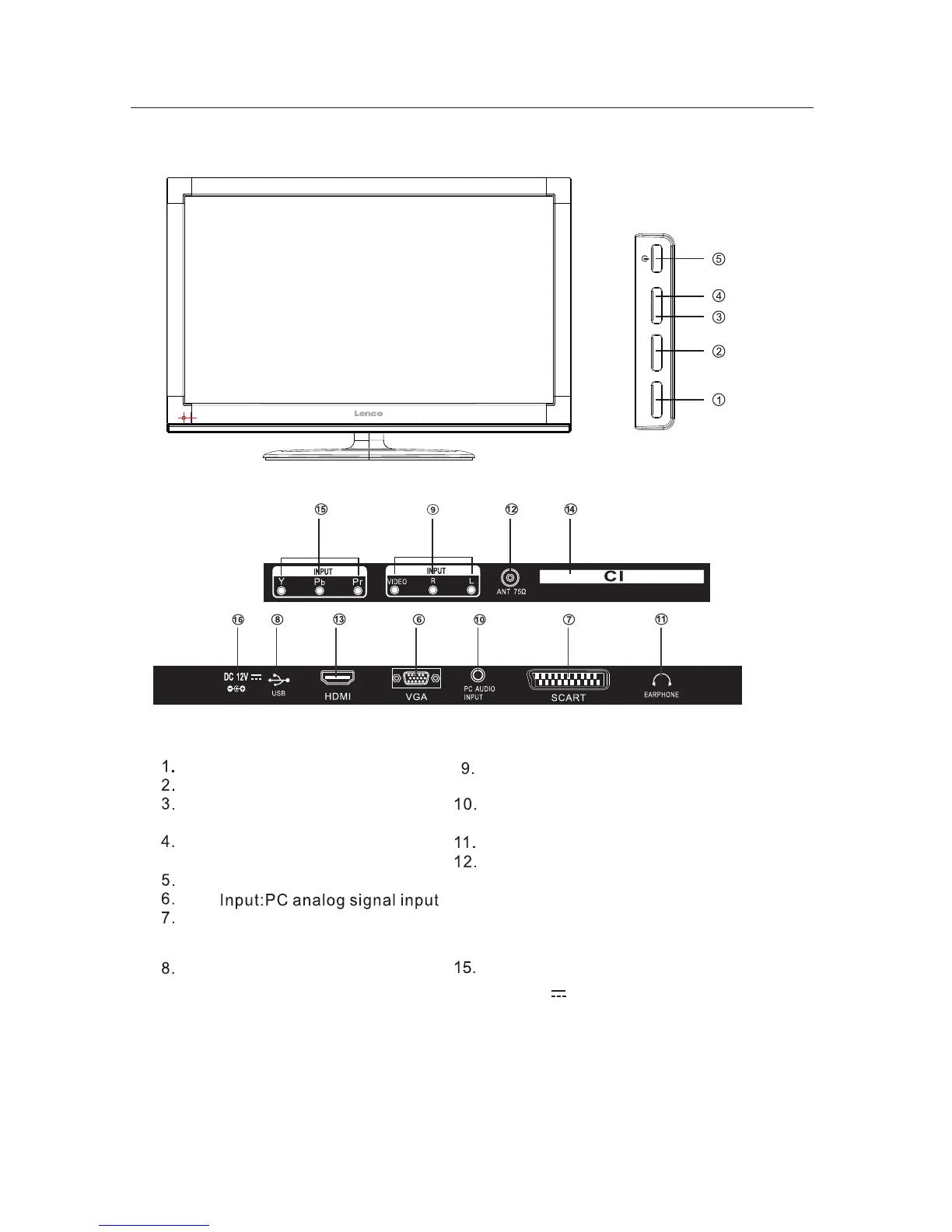

Front/Back panel diagram
YPBPR
16. DC 12V
VGA
-
-
VOL
VOL+
CH
CH+
MENU
SOURCE
5
