REMOVE JUMPER
BETWEEN R AND
W2 IF PRESENT.
IT MAY CAUSE
ERRONEOUS ALERT
CODE 125.
LENNOX COMMUNICATING
THERMOSTAT
HCWHD3
ERV/HR
V and HE
PA
HCWHD3
DEHUMIDIFIER
ERV / HRV

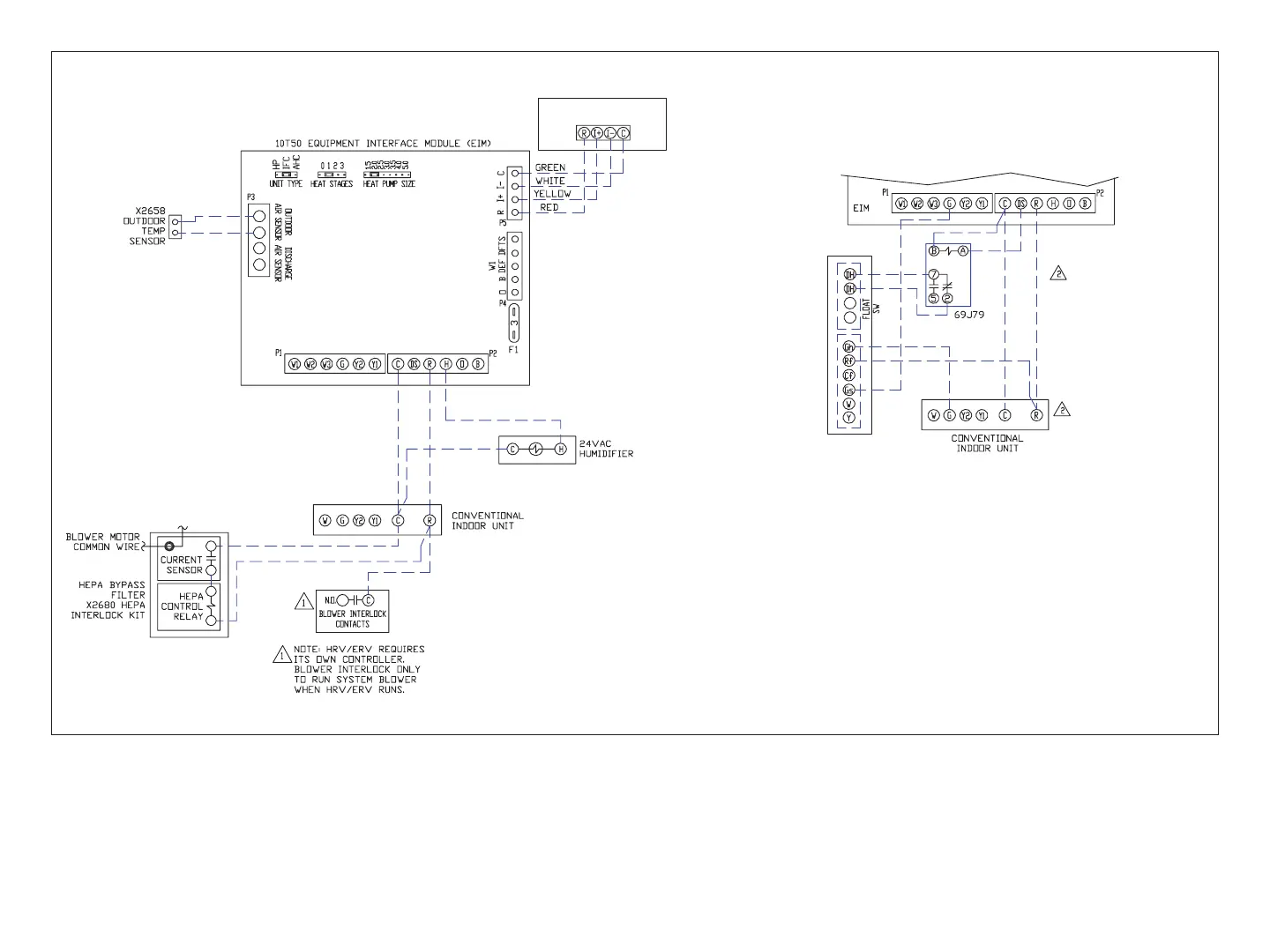

Figure 18.
Optional
Accessories with Conventional Indoor Unit (HEP
A Bypass Filter
, ERV/HRV
, 24V
AC Humidier and HCWHD3 Humidier)
14
16
Table of Contents
Shipping and Packing List
2
Application and Requirements
2
Table of Contents
2
Indoor Transformer Requirements
2
Equipment
2
Installation
5
Configuration Setup
5
EIM, 24VAC Furnace and Lennox Communicating Heat Pumps
5
EIM, Lennox Communicating Furnace and 24VAC Heat Pump
5
Unit Type Jumpers
5
Heat Stage Jumper Positions
6
Air Temperature Sensor Connections
6
Lennox Communicating Terminal Connections
6
Dual-Fuel Terminal Connections
7
Conventional Terminal Connections
7
LED Indicators
7
Soft Disable
8
Icomfort Wi-Fi Commissioning (Conventional Outdoor Unit)
8
Icomfort S30 Commissioning (Conventional Outdoor Unit)
9
Operating Environment Specifications
9
Unit Dimensions
9
Duel-Fuel Operations
9
Field Wiring
11
Alert Codes and Troubleshooting
17
