Page 3
When all wiring is complete, attach the cover of the remote
indoor sensor by pressing the cover straight down onto the
sub-base until it snaps into place.
Multiple-sensor Installations
When using more than one sensor, maintain an equivalent
resistance of 20K ohms at the thermostat (see figure 6).
SUBBASE
SUBBASE
SUBBASE
20K Ohm
10K Ohm
SUBBASE
SUBBASE
20K Ohm
20K Ohm 20K Ohm
20K Ohm 20K Ohm
10K Ohm10K Ohm20K Ohm
20K Ohm
10K Ohm
20K Ohm
20K Ohm 10K Ohm

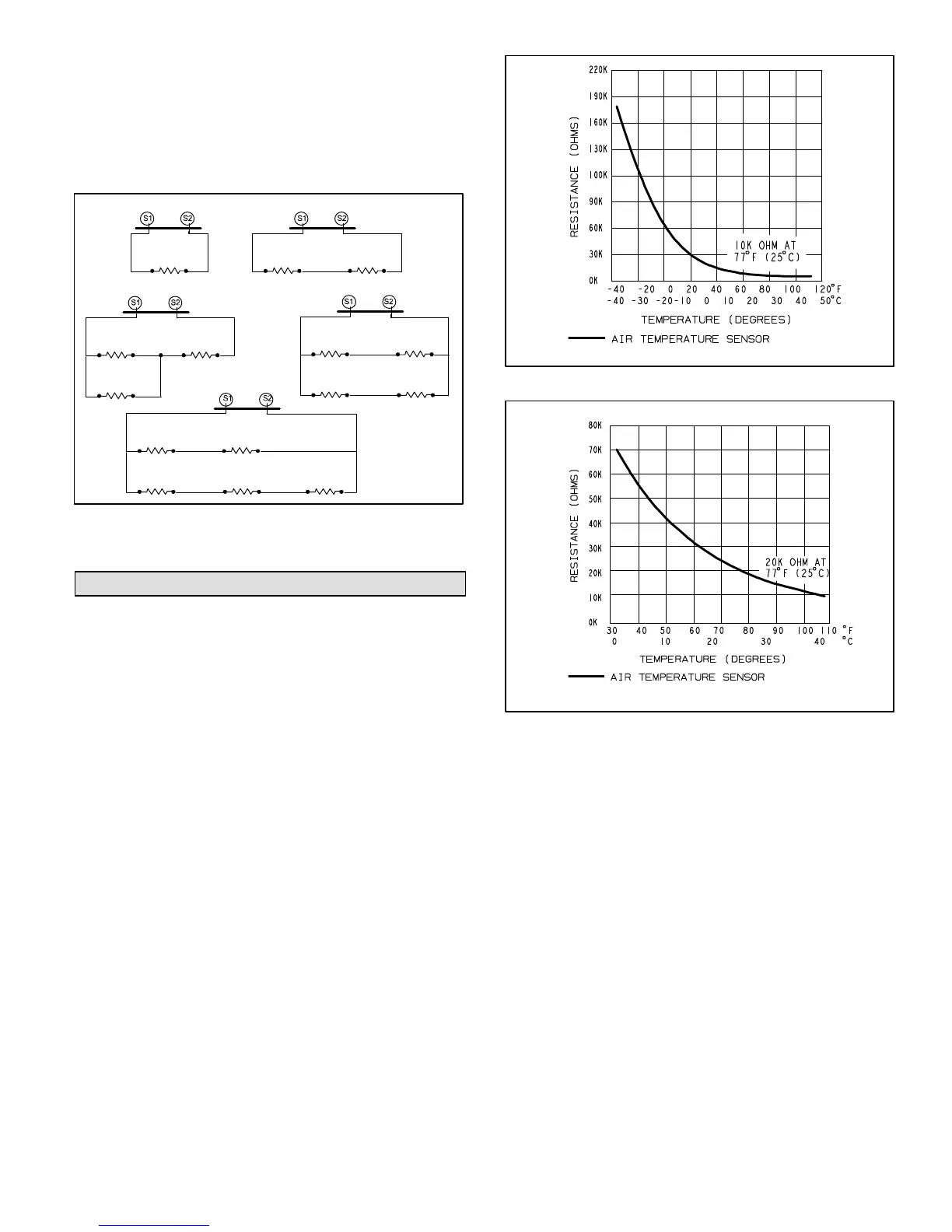

Figure 6.Sensor Wiring for Temperature Averaging
SENSOR SPECIFICATIONS
Application
To be used with Honeywell W7760C DDC Controller
(29M4801) and thermostats 14W81 or 13H15.
Temperature Sensor Operating Range
45 to 99°F (10 to 37.2°C)
• 100959-02 (47W37) is furnished with a 10K ohm
nonlinear NTC temperature sensor that follows a
specific temperature resistance curve as shown in
figure 7.
• 100959-03 (47W36) is furnished with a 20K ohm
nonlinear NTC temperature sensor that follows a
specific temperature resistance curve as shown in
figure 8.
Figure 7.10K Ohm Temperature Sensor (47W37)
Figure 8.20K Ohm Temperature Sensor (47W36)
Operating Temperature
45 to 99°F (7.2 to 38.2°C)
Relative Humidity
5% to 95% non-condensing
Dimensions
3” W x 4.56” H x .88” D
