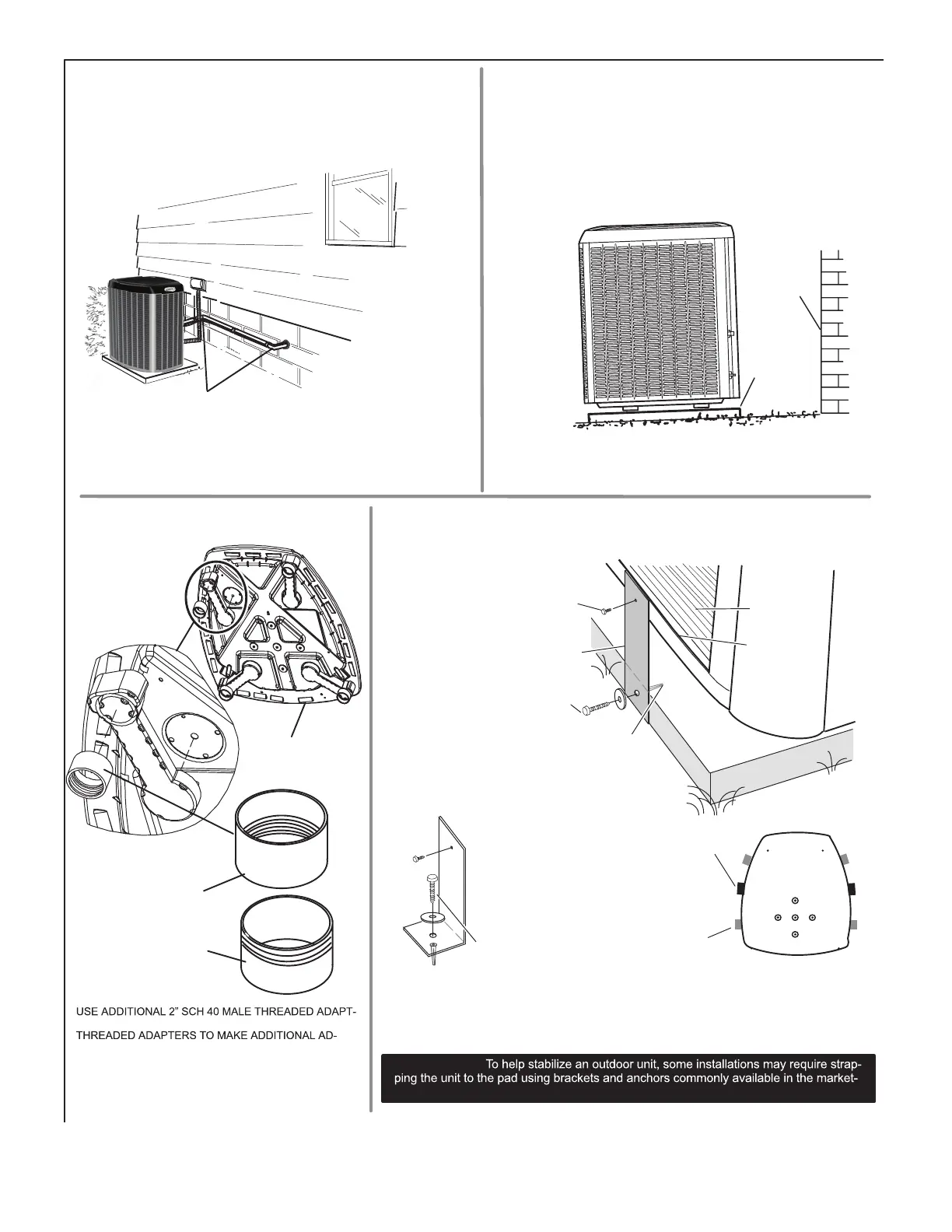

LEG DETAIL
BASE
2” (50.8MM) SCH 40
FEMALE THREADED
ADAPTER
ONE BRACKET PER SIDE (MIN.); FOR EXTRA STABILITY, TWO
BRACKETS PER SIDE, 2” (50.8MM) FROM EACH CORNER.
CONCRETE SLAB — USE TWO PLASTIC
ANCHORS (HOLE DRILL 1/4”)
COIL
BASE PAN
CORNER POST
STABILIZING BRACKET (18 GAUGE
METAL — 2” WIDTH; HEIGHT AS
REQUIRED)
Slab Side Mounting
#10 1/2” LONG SELF-DRILLING
SHEET METAL SCREWS
#10 1-1/4” LONG HEX HD SCREW
AND FLAT WASHER
MINIMUM ONE
PER SIDE
STABILIZING BRACKET (18 GAUGE METAL
— 2” (50.8MM) WIDTH; HEIGHT AS
REQUIRED); BEND TO FORM RIGHT ANGLE
FOR EXTRA
STABILITY
Deck Top Mounting
Elevated Slab Mounting using Feet
Extenders
Stabilizing Unit on Uneven Surfaces
WOOD OR PLASTIC SLAB — NO PLASTIC ANCHOR
(HOLE DRILL 1/8”)
INSTALL UNIT LEVEL OR, IF ON A SLOPE, MAINTAIN SLOPE TOLERANCE
OF 2 DEGREES (OR 2 INCHES PER 5 FEET [50 MM PER 1.5 M]) AWAY
FROM BUILDING STRUCTURE.
MOUNTING
SLAB
BUILDING
STRUCTURE
GROUND LEVEL
Outside Unit Placement
Slab Mounting at Ground Level
SAME FASTENERS AS
SLAB SIDE MOUNTING.
IMPORTANT —
place.
DETAIL B
DETAIL C
DETAIL D
2” (50.8MM) SCH 40
MALE THREADED
ADAPTER
ERS WHICH CAN BE THREADED INTO THE FEMALE
JUSTMENTS TO THE LEVEL OF THE UNIT.
TWO 90° ELBOWS INSTALLED IN LINE SET
WILL REDUCE LINE SET VIBRATION.
