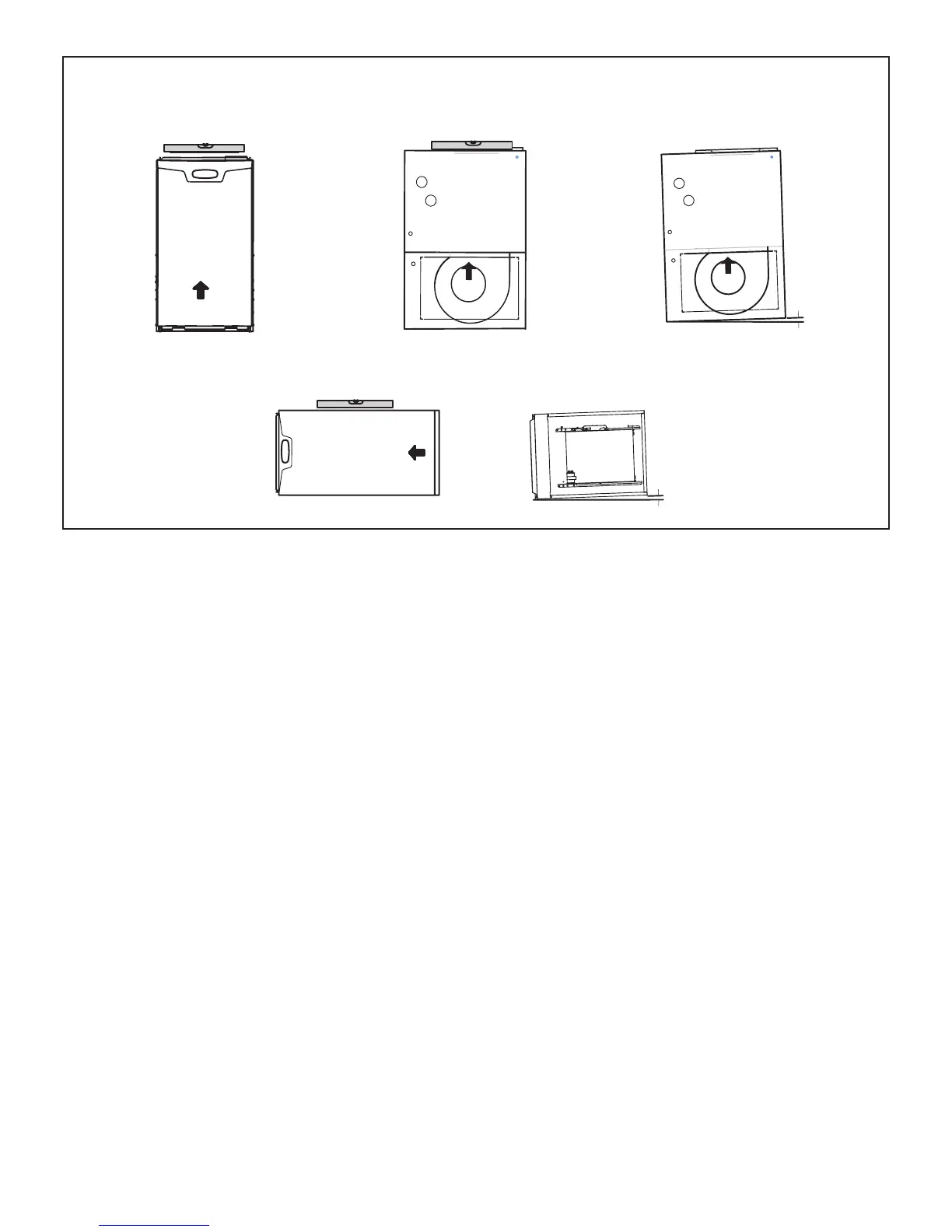

SETTING EQUIPMENT
HORIZONTAL APPLICAT ION
FRONT VIEW
AIR FLOW
END VIEW
UNIT
FRONT
1/2”
max.
Unit must be level side-to-side. Unit may be positioned from level to 1/2” toward the front to aid in draining.
FRONT VIEW
SIDE VIEW
1/2” max.
AIR FLOW
UNIT
FRONT
SIDE VIEW
UNIT
FRONT
UPFLOW APPLICATION
Figure 11
