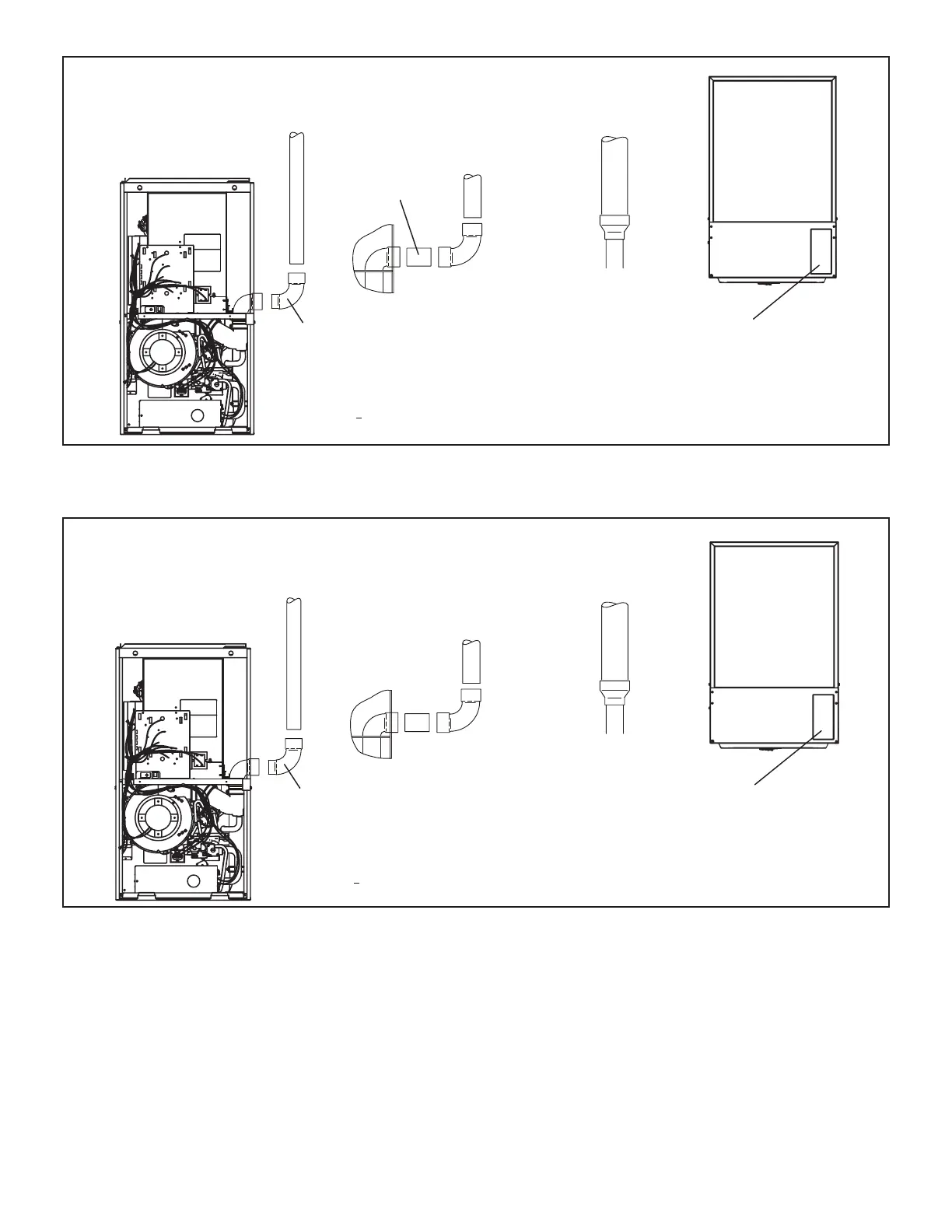

TYPICAL EXHAUST CONNECTIONS WITH RIGHT SIDE VENT OPTION
TRANSITION
2”
3
”
TOP VIEW
*2”
* When transitioning up in pipe size, use the shortest length of 2” PVC pipe possible.
NOTE
Intake pipe and exhaust pipe must be the same diameter.
Pipe Length
4” Maximum
(Not Furnished)
2”
2”
Plate
(Furnished)
Street Ell
(Not Furnished)
FIGURE 29
TRANSITION
2”
3
”
TOP VIEW
*2”
* When transitioning up in pipe size, use the shortest length of 2” PVC pipe possible.
NOTE
Intake pipe and exhaust pipe must be the same diameter.
2”
Plate
(Furnished)
TYPICAL AIR INTAKE PIPE CONNECTIONS WITH RIGHT SIDE VENT OPTION
*2”
Street Ell
(Not Furnished)
FIGURE 30
