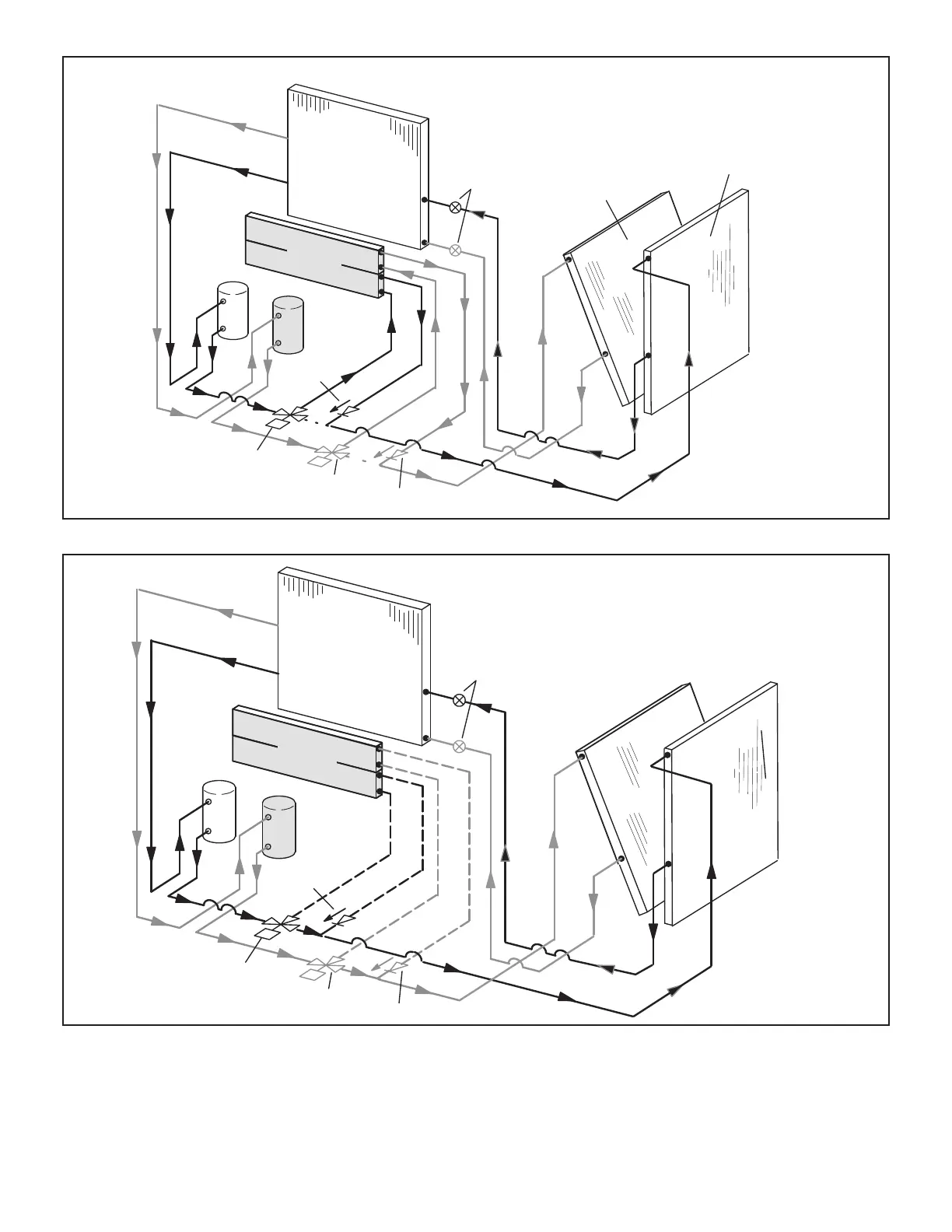

Lennox Enlight LGT240H4M


REHEAT MODE REFRIGERANT ROUTING
156 UNITS
REHEAT
COIL
CIRCUIT 1
CONDENSER COIL
1
2
EXPANSION
VALVES
CHECK
VALVE
L14
REHEAT
VALVE
L30
REHEAT
VALVE
CHECK
VALVE
Note: Two refrigerant circuits are shown;
both circuits operate during reheat.
EVAPORATOR
CIRCUITS 1 & 2
CIRCUIT 2
CONDENSER COIL
FIGURE 37
COOLING MODE REFRIGERANT ROUTING
156 UNITS
REHEAT
COIL
CIRCUIT 2
CONDENSER COIL
1
2
EXPANSION
VALVES
CHECK
L14
REHEAT
VALVE
L30
REHEAT
CHECK
VALVE
Note: Two refrigerant circuits are
shown; both circuits operate
when there is a cooling demand.
CIRCUIT 1
CONDENSER COIL
EVAPORATOR
CIRCUITS 1 & 2
FIGURE 38
