Page 3

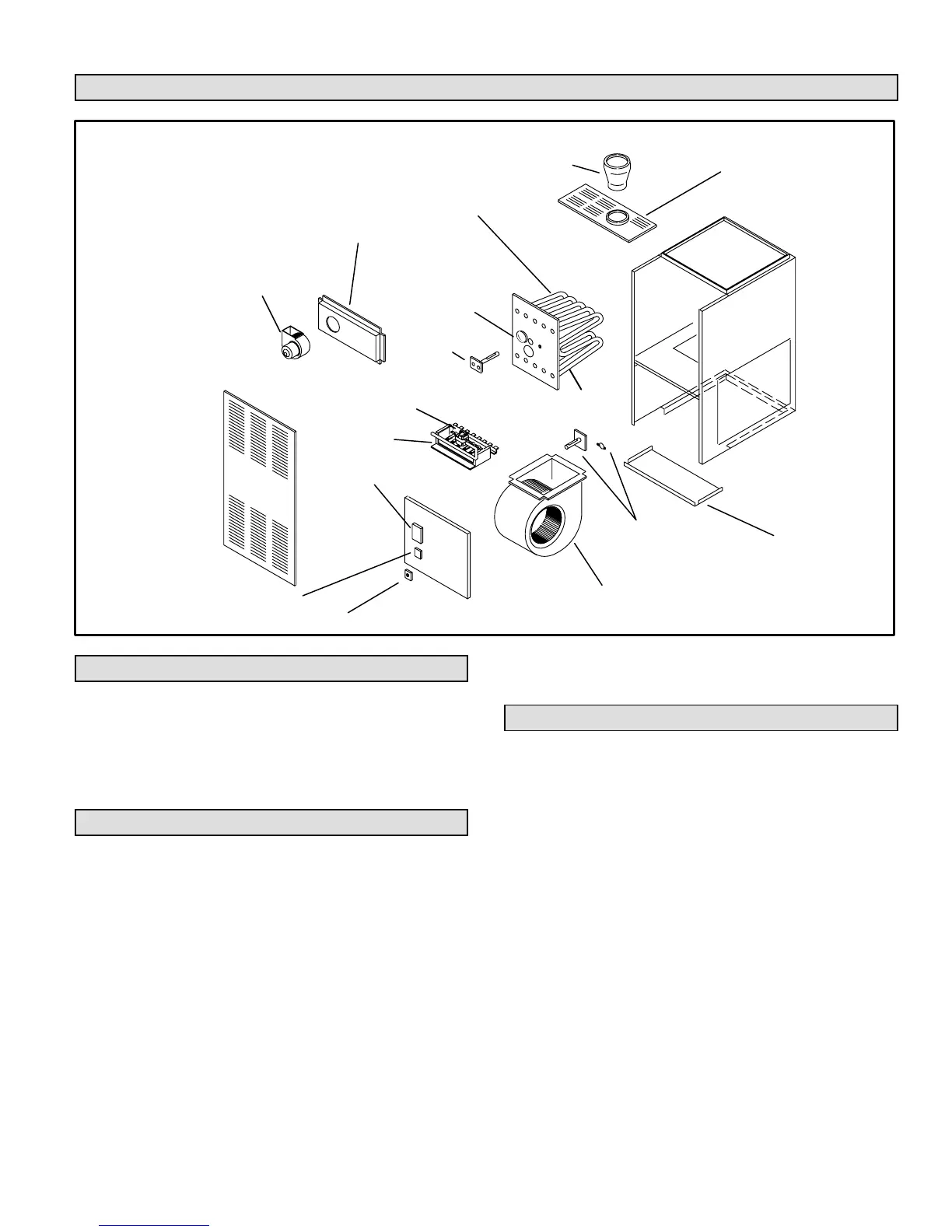

G24M Parts Arrangement
VENT ADAPTER
CABINET TOP
G24M
CABINET
CABINET
BOTTOM
HEAT EXCHANGER
ASSEMBLY
BURNER
ASSEMBLY
BLOWER ASSEMBLY
COMBUSTION AIR
BLOWER
FLUE BOX
SECONDARY
LIMITS
FRONT LOUVERED
PANEL
DOOR INTERLOCK SWITCH
CONTROL
BOARD
TRANSFORMER
PRESSURE
SWITCH
NOx
TURBULATOR
LOW PRESSURE SWITCH
(Propane Only)
PRIMARY
LIMIT
G24M Gas Furnace
G24M multi-position gas furnace is shipped ready for
installation in the upflow position. Unit can easily be conĆ
verted for installation in either downflow or horizontal apĆ
plications. the furnace is shipped with a bottom seal panel
in place for side return air in upflow applications.
Shipping and Packing List
Package 1 of 1 contains:
1 - Assembled unit
1 - Vent adapter is factoryĆprovided and fieldĆinstalled
The following additional items may be ordered separately,
if required:
1 - Additive base (downflow applications)
1 - Thermostat
1 - Hanging bracket kit
1 - External filter rack kit
1 - Propane/LP Changeover kit
Check equipment for shipping damage. If you find any
damage, immediately contact the last carrier.
Requirements
Lennox G24M units are American Gas Association (AGA)
and Canadian Gas Association (CGA) certified.
In the USA, installation of Lennox gas central furnaces
must conform with local building codes. In the absence of
local codes, units must be installed according to the current
National Fuel Gas Code (ANSI-Z223.1) in the United
States. The National Fuel Gas Code is available from:
American National Standards Institute, Inc.
11 West 42Nd Street
New York, NY 10036
In Canada, installation must conform with current National
Standard of Canada CAN/CGA-B149.1 Installation Code
for Natural Gas Burning Appliances and Equipment" and
CAN/CGA-B149.2 Installation Code for Propane Gas
Burning Appliances and Equipment," local plumbing or
waste water codes and other applicable local codes.
