Lennox G26 Series Installation Instructions

G26 Pa_ A_ gement ....
n , _,

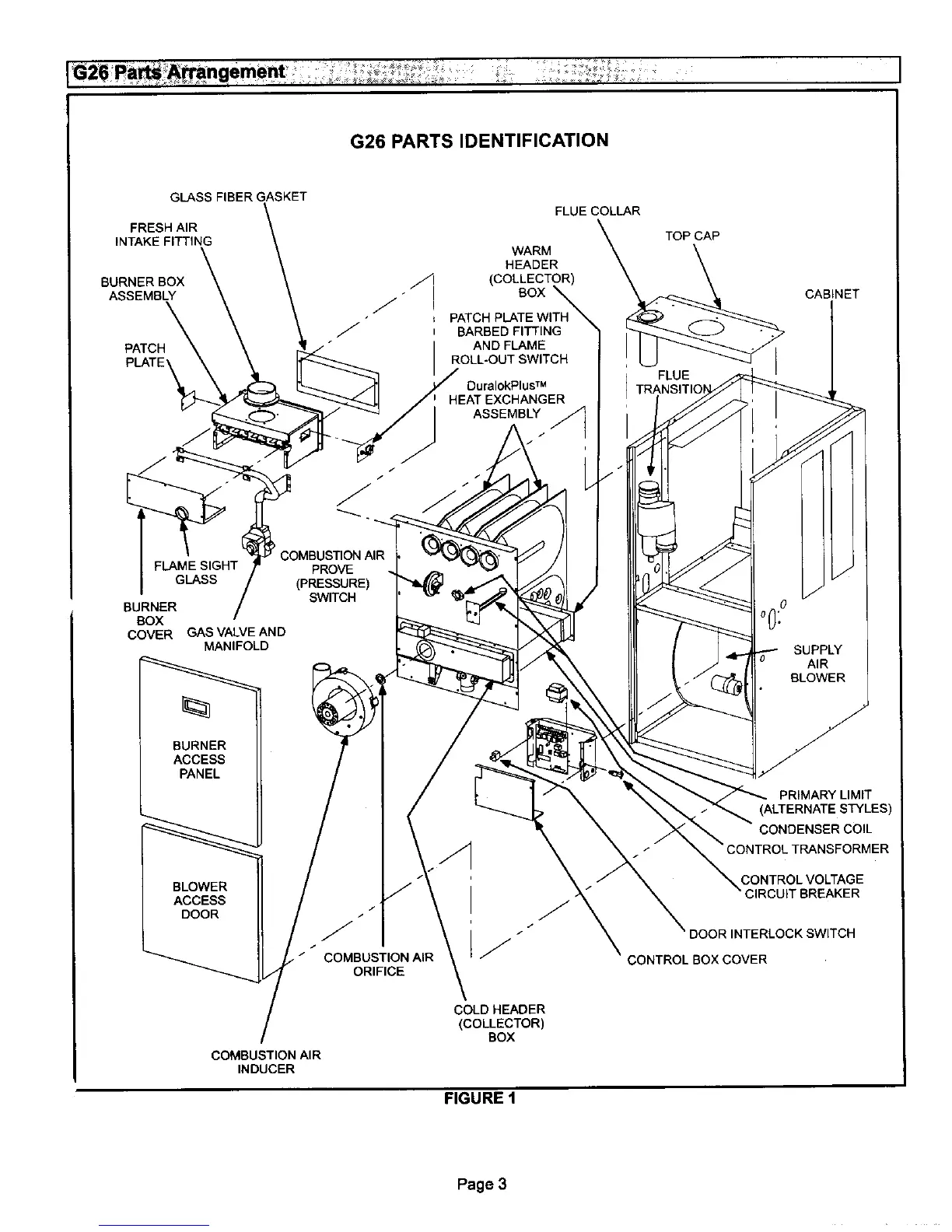

G26 PARTS IDENTIFICATION
GLASS FIBER GASKET
FRESH AIR
INTAKE FITTING
BURNER BOX _l
ASSEMBLY _."
J
PATCH
GLASS
BURNER
BOX
COVER GAS VALVE AND
MANIFOLD
BURNER
ACCESS
PANEL
BLOWER
ACCESS
DOOR
PROVE
(PRESSURE)
SWITCH
/
J
COMBUSTION AIR
ORIFICE
FLUE COLLAR
WARM
HEADER
(COLLECTOR)
BOX
PATCH PLATE WITH
i BARBED FITTING
AND FLAME
ROLL-OUT SWITCH
DuralokPlus TM
HEAT EXCHANGER
ASSEMBLY ,_
FLUE
TRANSITIO
CABINET
SUPPLY
AIR
BLOWER
PRIMARY LIMIT
(ALTERNATE STYLES)
COIL
TRANSFORMER
CONTROL VOLTAGE
CIRCUIT BREAKER
DOOR INTERLOCK SWITCH
CONTROL BOX COVER
COMBUSTION AIR
INDUCER
COLD HEADER
(COLLECTOR)
BOX
FIGURE 1
Page 3

Lennox G26 Series Specifications

General

Heating Stages	Single-stage
Blower Motor	PSC (Permanent Split Capacitor)
Gas Valve	Single-stage
Vent Type	Natural Draft
Fuel Type	Natural Gas or Propane
Blower Motor Type	PSC
Warranty	5-Year Limited Warranty on covered components
Heating Capacity	44, 000 to 132, 000 BTU/h
Filter Type	Standard
