Lennox GCS16R-411-100

Page 10

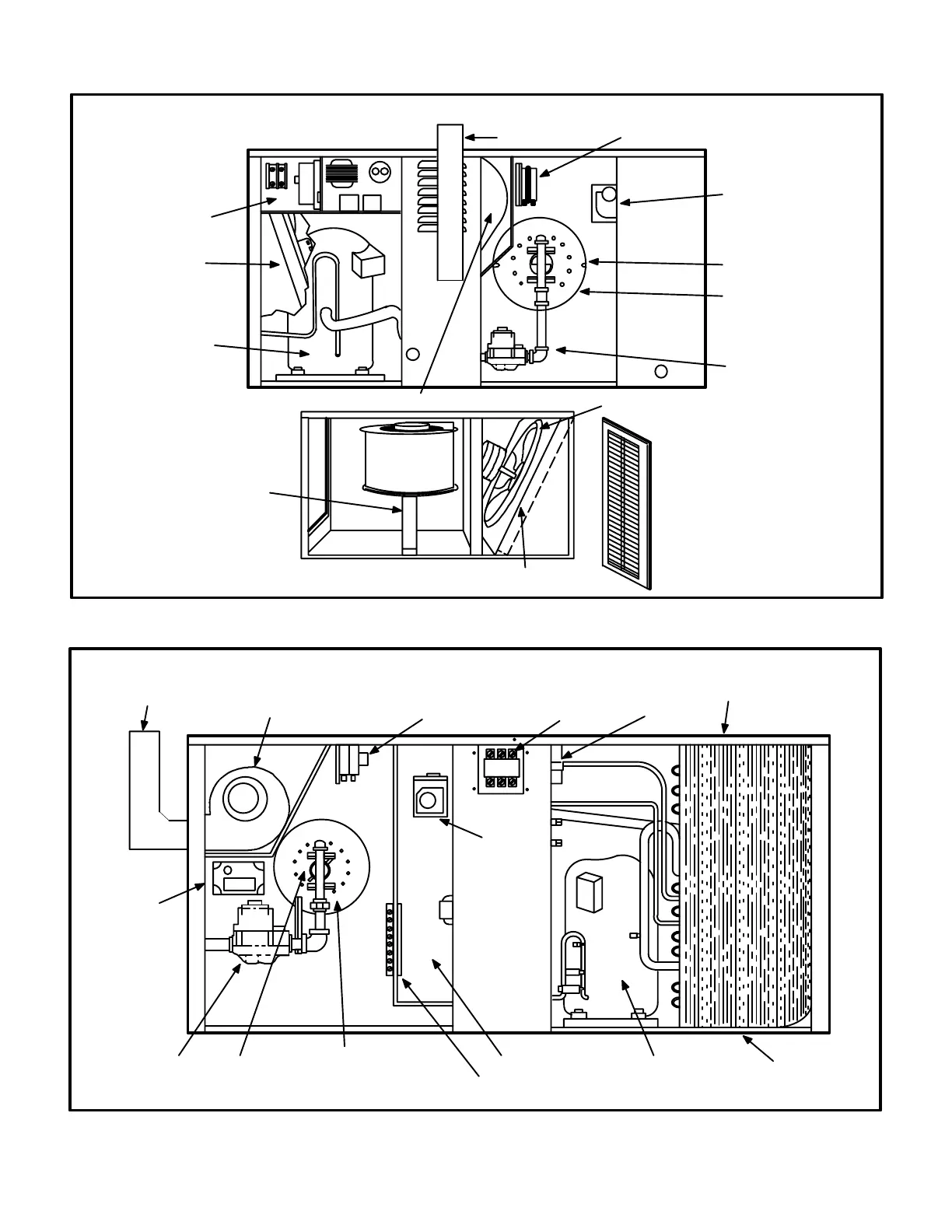

FIGURE 1
GCS16H PARTS ARRANGEMENT
CONTROL BOX
COMPRESSOR
CONDENSER
CONDENSER
CONDENSER FAN
GAS VALVE
BLOWER / LIMIT
VENT CAP
BURNER
COMBUSTION AIR PROVE SWITCH
COMBUSTION AIR BLOWER
BLOWER
BURNER ENCLOSURE
GCS16H-311-75 only
(not shown)
(see figure 12)
SHIPPING BRACKET
FIGURE 2
GCS16-411 PARTS ARRANGEMENT
GCS16R-411 PARTS ARRANGEMENT
CONTACTOR
CONTROL BOX
COMPRESSOR
COMPARTMENT
IGNITION
CONTROL
GAS VALVE
BURNER
COMBUSTION AIR BLOWER
VENT CAP
CONDENSER FAN
(top of unit - not shown)
BLOWER/
LIMIT
COMBUSTION AIR
PROVE SWITCH
BURNER ENCLOSURE
GCS16R-411-100 only
(not shown)
(see figure 12)
TB1 TERMINAL STRIP
(commercial units only)
CONDENSER
DUAL
CAPACITOR
