Page 44
ACCESS COVER

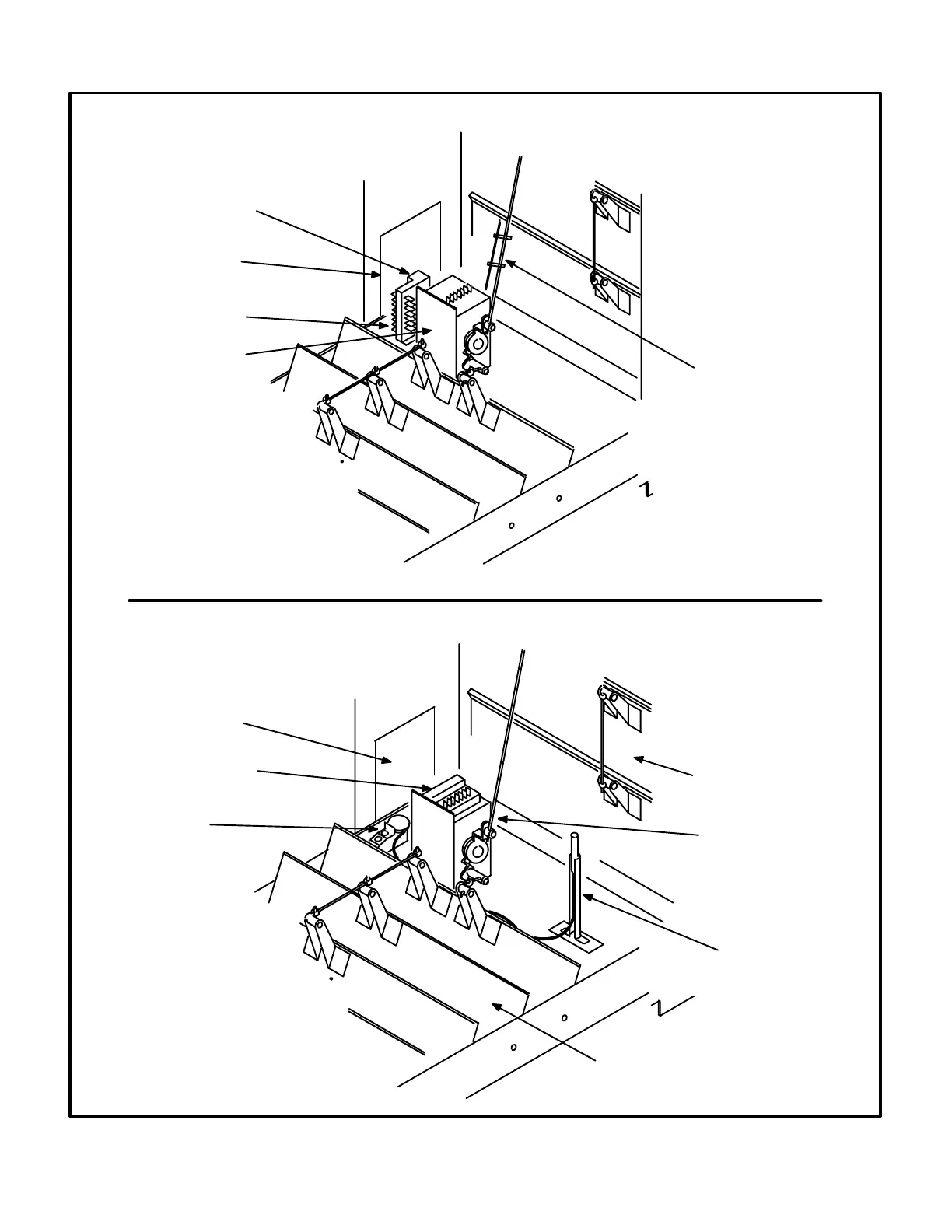

REMD16M PARTS ARRANGEMENT
FIGURE 46
REMD16 PARTS ARRANGEMENT
ENTHALPY CONTROL
ACCESS COVER
REMOTE
MOUNTING BASE
DAMPER MOTOR
ENTHALPY CONTROL
DAMPER MOTOR
MIXED AIR
SENSOR CONTROL
MIXED AIR
SENSING BULB
NOTE - Mixed air sensor and sens
ing bulb are shown as they are fac
tory installed in a REMD16-41.
REMD16-65 is similar. Mixed air
sensor should be removed from
economizer and installed in unit
blower compartment and sensing
bulb should be installed in supply
air stream as shown in figure 50.
OUTDOOR AIR DAMPERS
RETURN AIR DAMPERS
MIXED AIR
SENSOR
NOTE - Mixed air sensor is shown
as it is factory installed in a
REMD16M-41. REMD16M-65 is
similar. Mixed air sensor should be
removed from economizer and
installed in supply air stream as
shown in figure 50.
