Lennox KCB092 User Manual

Page 26

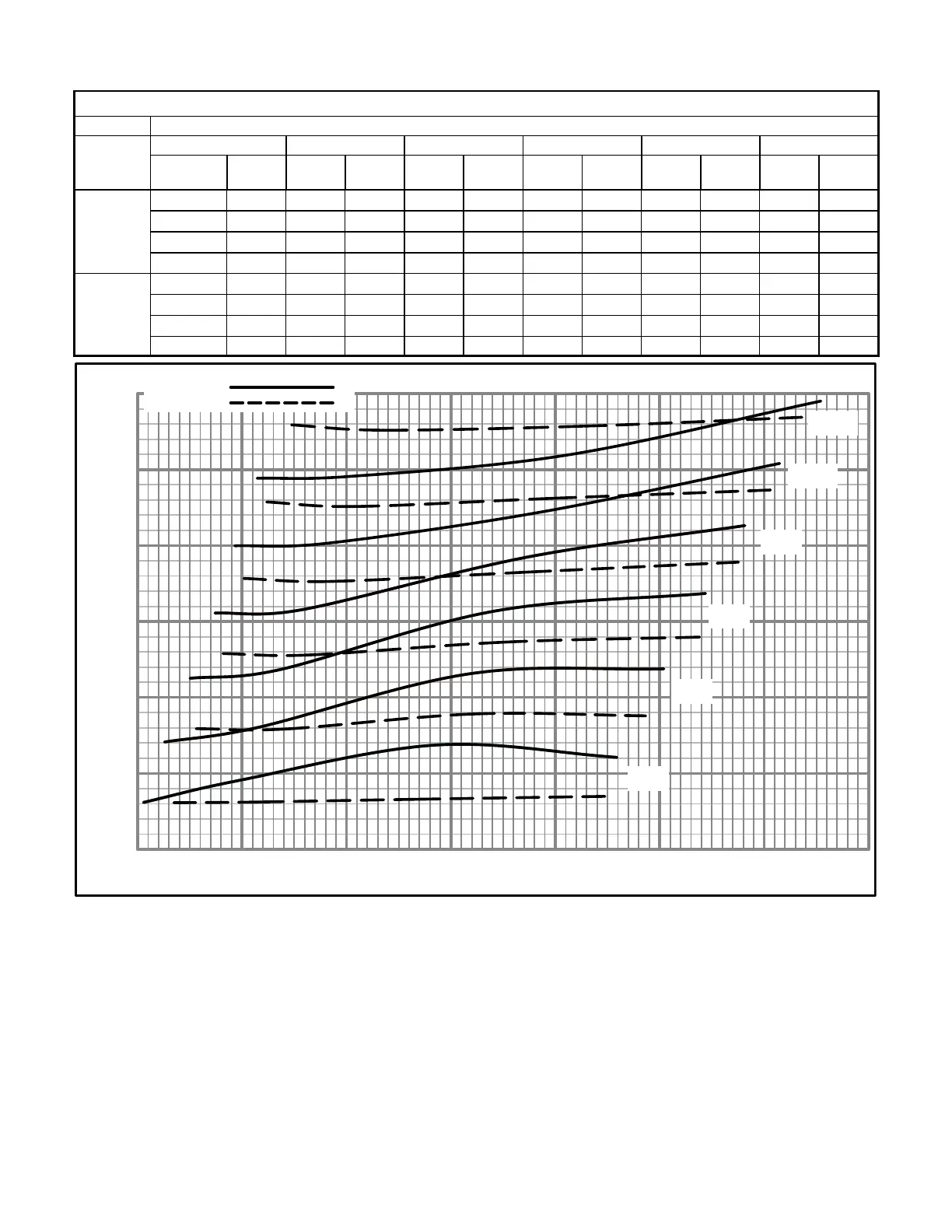

TABLE 10
KGA/KCA102H CAV and Staged Normal Operating Pressures
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
111 234 113 273 115 316 117 365 119 419 121 480
120 236 121 275 124 317 126 365 128 417 130 476
139 241 142 279 144 321 147 367 148 420 151 476
156 251 160 287 164 328 168 374 171 424 175 480
Circuit 2
113 233 116 273 118 317 120 371 122 439 125 530
122 233 124 273 126 317 128 369 131 428 134 502
137 242 142 278 145 320 148 369 150 426 153 489
155 251 159 288 164 328 168 375 171 429 174 488
60
70
80
90
100
110
120
Suction Pressure (psig)
Liquid Temperature ( ° F)
115°
105°
95°
85°
75°
65°
110 120 130 140 150 160 170 180
Outdoor Temperature (°F)
Circuit 1
Circuit 2
102H CAV and Staged Charging Curves
