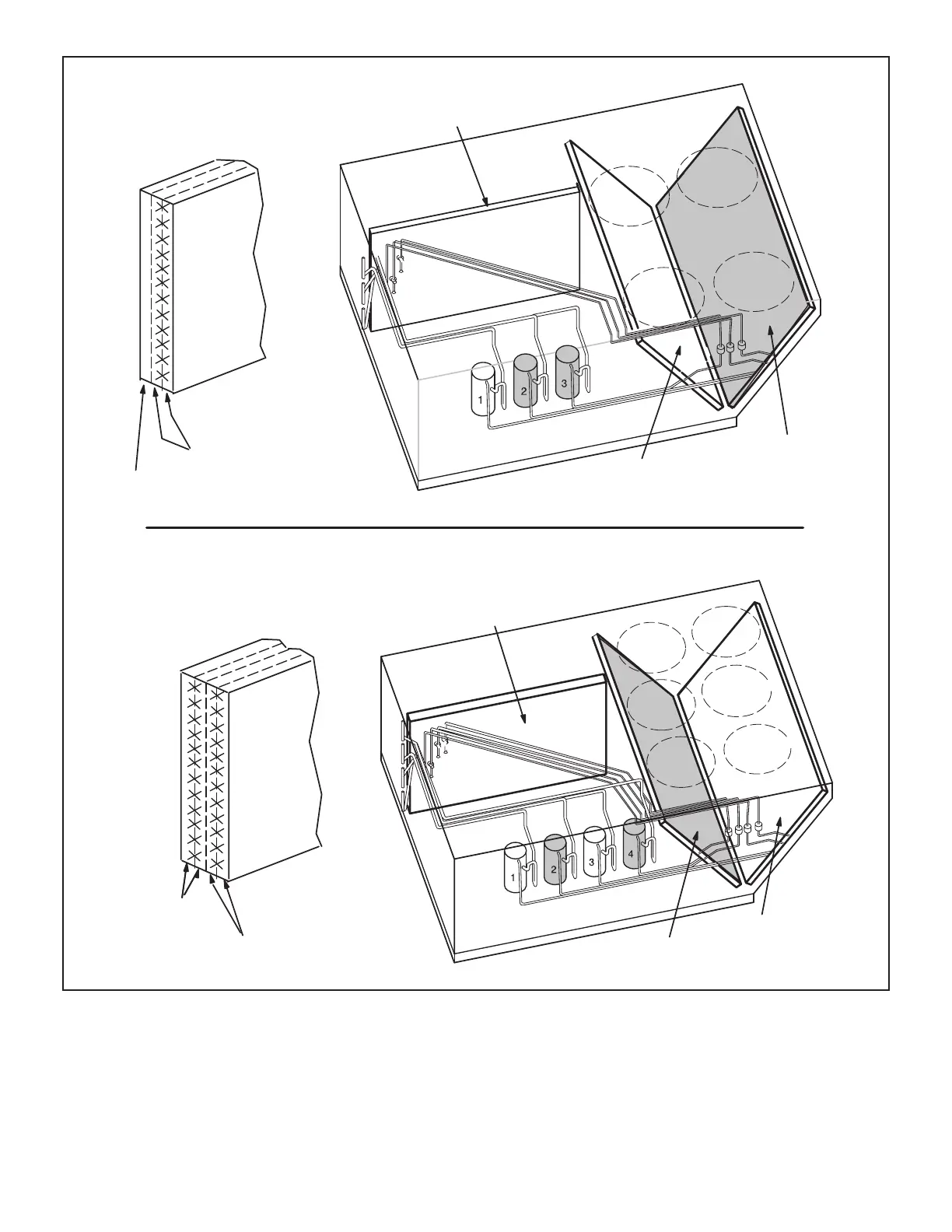

156, 180 REFRIGERANT CIRCUITS
CIRUIT 1
CONDENSER COIL
CIRCUIT 2 & 3
CONDENSER COILS
INTERTWINED
ALL THREE EVAPORATOR
COIL CIRCUITS ARE
INTERTWINED
CIRCUIT 3
CIRCUIT 1 & 2
INTERTWINED
EVAPORATOR COIL
(not to scale)
ALL FOUR EVAPORATOR
COIL CIRCUITS ARE
INTERTWINED
CONDENSER COIL
CIRCUIT 1 & 3 ARE
INTERTWINED
210, 240, 300 REFRIGERANT CIRCUITS
CONDENSER COIL
CIRCUIT 2 & 4 ARE
INTERTWINED
CIRCUITS
3 & 4
INTERTWINED
EVAPORATOR COIL
(not to scale)
CIRCUITS 1 & 2
INTERTWINED
FIGURE 7
