Page 56
LGT/LCT156, 180, 210, 240, 300

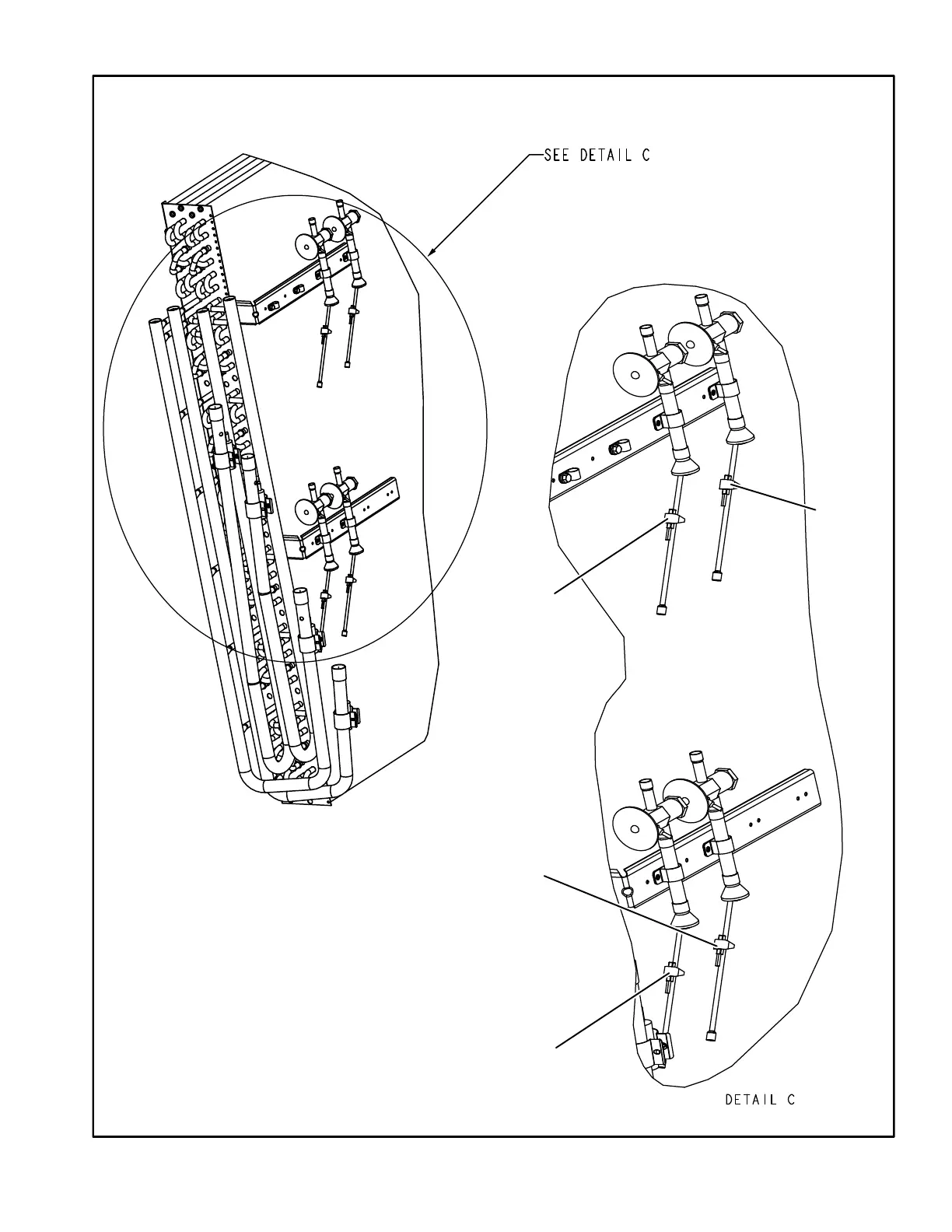

FIGURE 29
CLAMP THERMISTOR
TO BARE COPPER.
DETAILS NOT TO SCALE
YELLOW
RT46
BLUE
RT47
GREEN
RT51
RED
RT50
22J06
22J06
22J06
22J06
LGT/LCT210, 240, 300
EVAPORATOR / INDOOR COIL
RT46, 47, 50, 51
