Technical Information
Service Manual
LI012CI-180P432 LI012CO-180P432
LI012HI-180P432 LI012HO-180P432
Connection pipe specication:
Liquid pipe:1/4"
Gas pipe:3/8"
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer
Electron
expansion
valve
Strainer
Accumlator
Compressor
Indoor unit
Outdoor unit
Accumlator
COOLING
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
Electron
expansion
valve

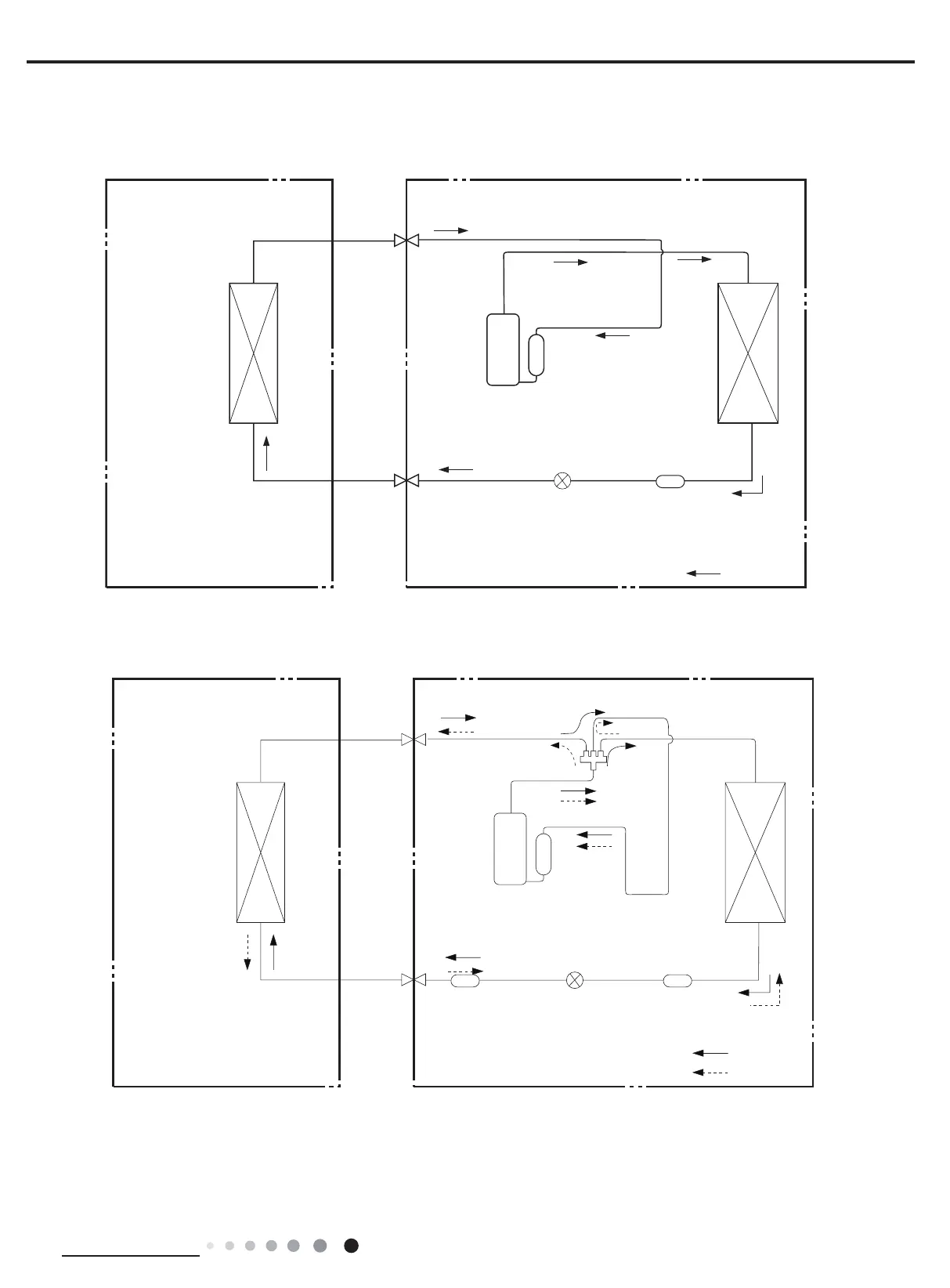

4. Refrigerant System Diagram
