Installation and Maintenance
Service Manual
Step
Procedure
b
a
b

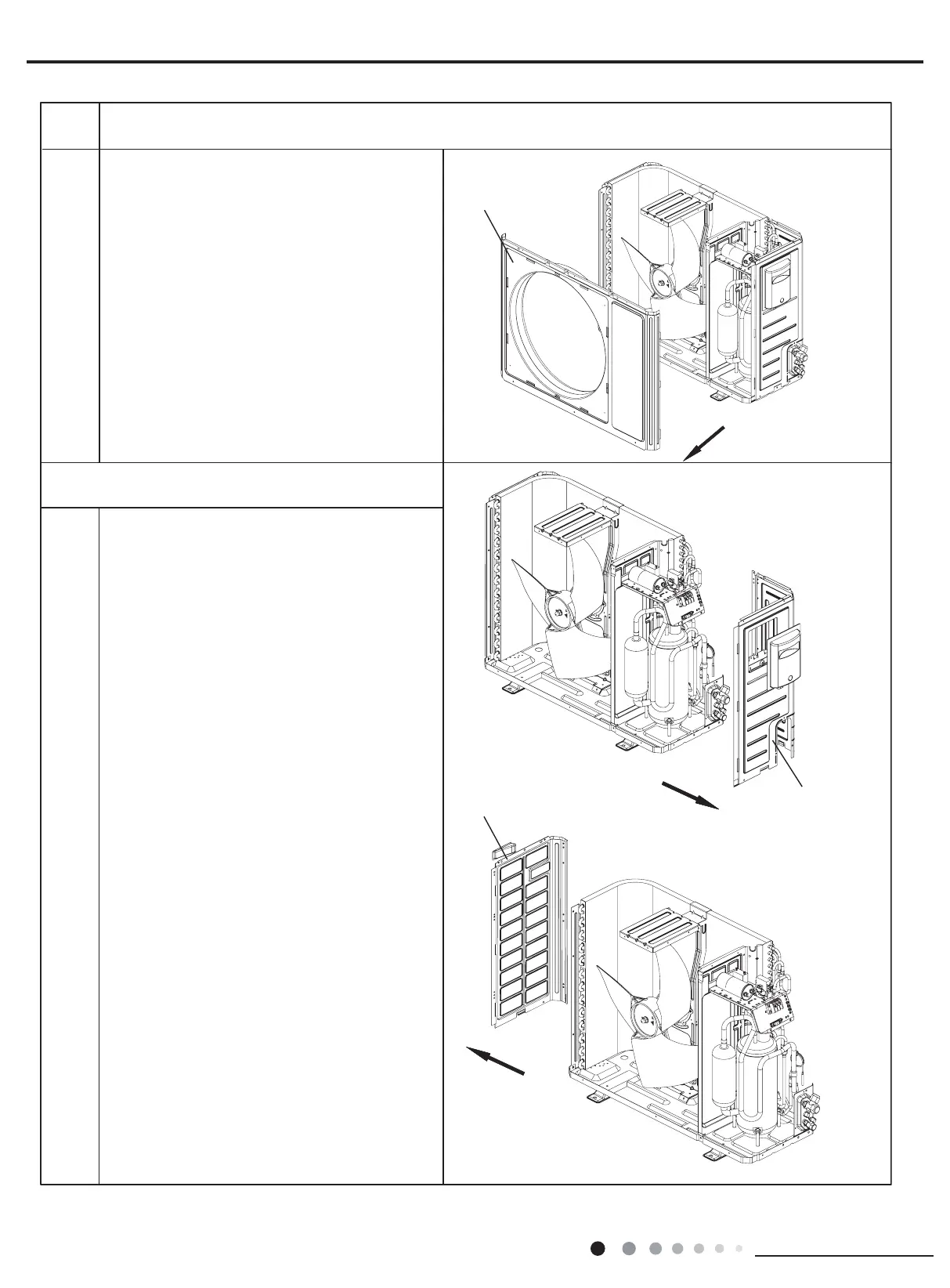

Remove the screws connecting the panel with the
chassis and the motor support, and then remove the
panel.
Remove the screws connecting the right side plate
with the chassis, the valve support and the electric
box, and then remove the right side plate.
Remove the screws connecting the left side plate
and the chassis, and then remove the left side plate.
3.Remove right side plate and left side plate
panel
right side plate
left side plate
