Service Manual
Installation and Maintenance
44
Steps
Procedure

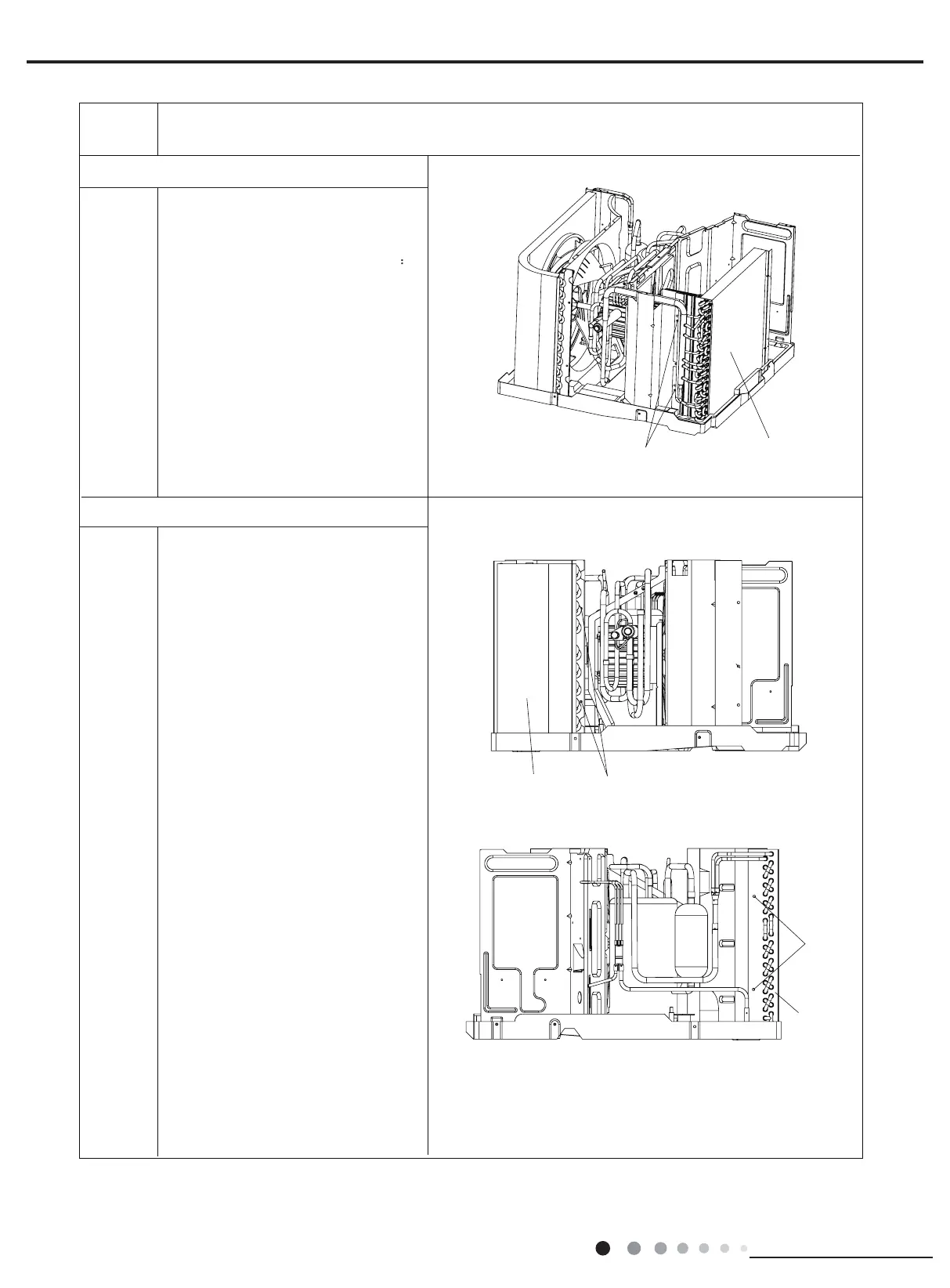

6.Remove evaporator
Unsolder each connecting pipe (Note
discharge refrigerant firstly) and then
remove screws fixing evaporator.
Then remove evaporator.
7.Remove condenser
Unsolder each connecting pipe (Note:
discharge refrigerant firstly.) Remove
screws fixing condenser and then
remove condenser.
screws
evaporator
condenser screws
screws
condenser
