Lennox LZP-4 User Manual

Overview
The Lennox LZP-4 Zone Control System has been
designed to increase comfort in your home. It’s able to do this
because it solves the problem caused by various areas of the
home gaining and losing heat at different rates. Unlike
conventional heating and air conditioning systems, the LZP-4
Zone Control knows, at any given time, which areas (zones) of
your home require conditioned air. With this information, the
Zone Control automatically directs the conditioned air to the
zones that require it. Because of this, you will be able to
increase the comfort level throughout the home.

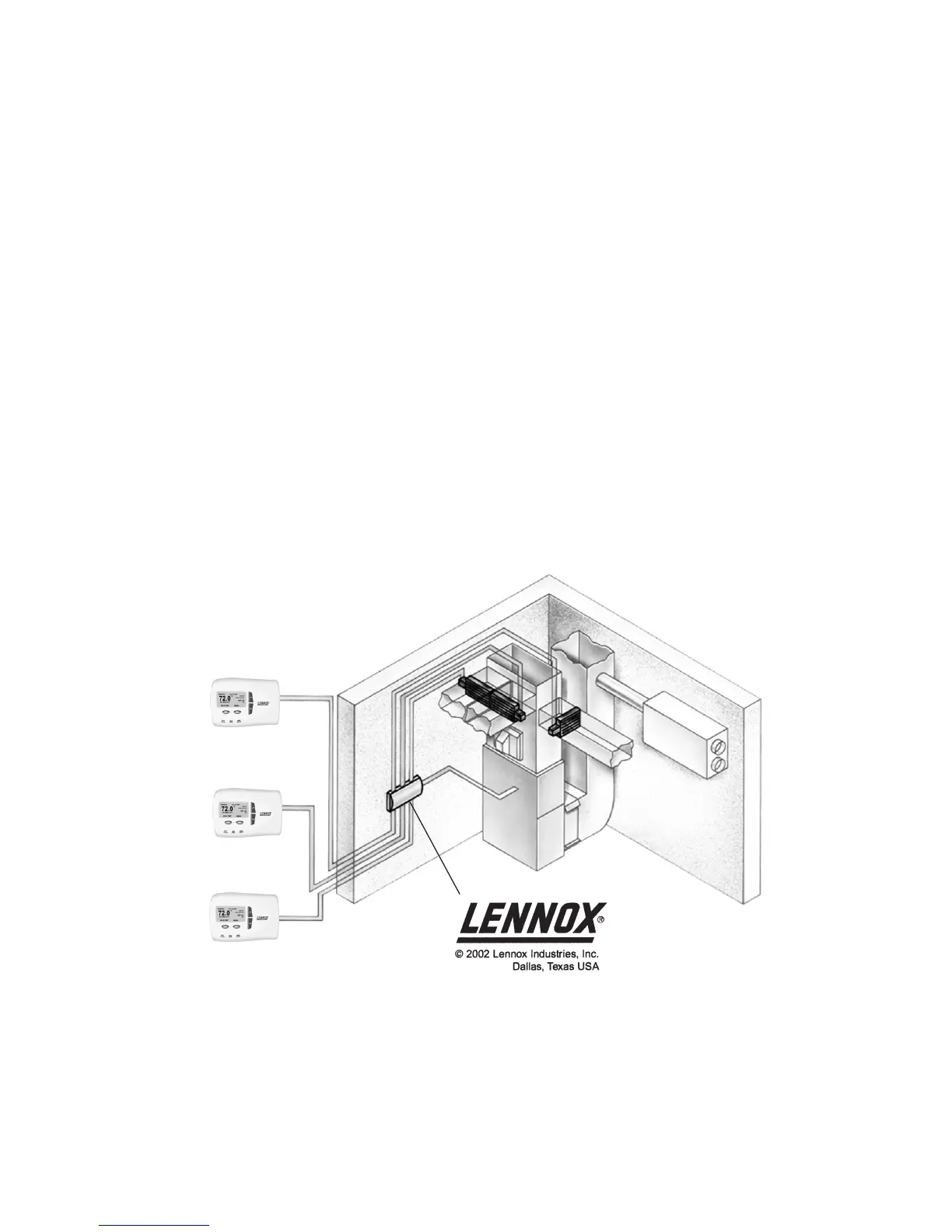

The components that make up the Zone Control System
are: thermostats, a Control Panel, air control dampers and
heating and cooling equipment, as shown in the illustration
below. The Control Panel is typically located on an inside wall
near your heating and air conditioning equipment. The dampers
are located inside your air ducts in such a way that each zone
can be independently controlled. Thermostats, placed in each
zone, are directly connected to the Control Panel.
The above illustration shows a system where three of the four
zones are used.
Zone 1
68˚F (20˚C)
Zone 2
70˚F (21˚C)
Zone 3
65˚F (18˚C)
