Lennox MPB012S4S Service Manual

32

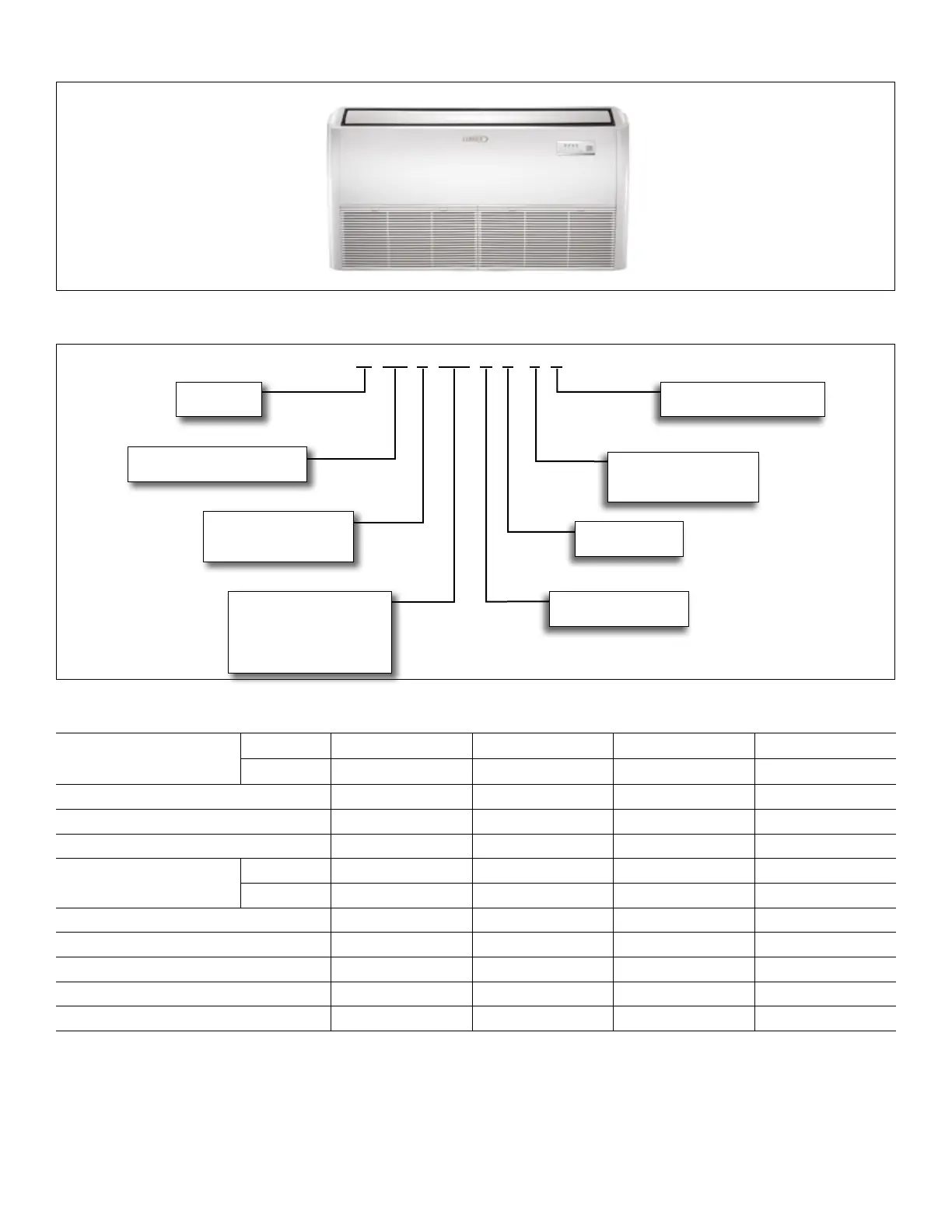

5. MCFA and MCFB Ceiling / Floor Indoor Units
5.1. ModelNumberIdentication
M CF A 024 S 4 - 1 P
Unit Type
CF=Ceiling/FloorNon-Ducted
Series Type
M = Mini-Split
Voltage
P=208/230V-1phase-60hz
CoolingEfciency
S=StandardEfciency
Major Design Sequence
A=1stGeneration
B=2ndGeneration
Nominal Cooling Capacity
018 = 1.5 tons
024=2tons
036 = 3 tons
048=4tons
Refrigerant Type
4=R-410A
Minor Design Sequence
1=1stRevision
2=2ndRevision
5.2. IndoorUnitSpecications(018-048Ton)Units
Model No. MCFB018S4-*P MCFA024S4-*P MCFA036S4-*P MCFA048S4-*P
NominalTons 1.5 2 3 4
PowerSupply-60hz-1phase 208/230V 208/230V 208/230V 208/230V
Ratedloadamps 1.5 2 1.5 1.8
Output(W) 55 55 115 (2) 90
RoomTemperature
Range(°F)
Cooling 62 - 90 62 - 90 62 - 90 62 - 90
Heating 32 - 86 32 - 86 32 - 86 32 - 86
AirVolume-cfm(High/Medium/Low) 580/520/465 760/710/600 1035/915/640 1350/1120/1000
SoundData(dBA)-Low/Medium/High 39/44/47 42/48/53 43/49/54 52/54/57
PipingConnections-Liquid/Gas-o.d.-are-in. 1/4/1/2 3/8 / 5/8 3/8 / 5/8 3/8 / 5/8
Drainconnectiono.d.-in. 1 1 1 1
Net/Shippingweights-lbs. 55 / 66 59 / 70 69 / 82 84/97
