Page 26
IMPORTANT
Use this Table to perform maintenance checks; it is not a procedure for charging the system. Minor variations
in these pressures may be due to differences in installations. Significant deviations could mean that the
system is not properly charged or that a problem exists with some component in the system.
Table 5. HFC−410A Normal Operating Pressures Liquid +10 and Suction +5 Psig (1−Phase)
TSA*S4 50Hz International (1−Phase)
XP −024 −030 −036 −048 −060
F(5C)* Liquid / Suction Liquid / Suction Liquid / Suction Liquid / Suction Liquid / Suction
65 (18) 260 / 137 255 / 132 246 / 133 248 / 133 259 / 143
70 (21) 280 / 138 274 / 134 265 / 134 269 / 134 279 / 144
75 (24) 301 / 139 295 / 135 286 / 136 290 / 136 299 / 146
80 (27) 323 / 141 317 / 136 307 / 137 313 / 137 320 / 147
85 (29) 346 / 142 339 / 137 330 / 138 335 / 138 342 / 148
90 (32) 370 / 144 363 / 139 354 / 140 360 / 140 364 / 150
95 (35) 395 / 145 387 / 140 378 / 141 386 / 142 387 / 151
100 (38) 421 / 147 413 / 142 404 / 143 412 / 143 411 / 153
105 (41) 449 / 149 439 / 143 430 / 145 440 / 145 437 / 154
110 (43) 478 / 151 468 / 145 458 / 146 468 / 147 464 / 156
115 (45) 507 / 152 497 / 147 487 / 148 498 / 149 492 / 157
*Temperature of the air entering the outside coil.

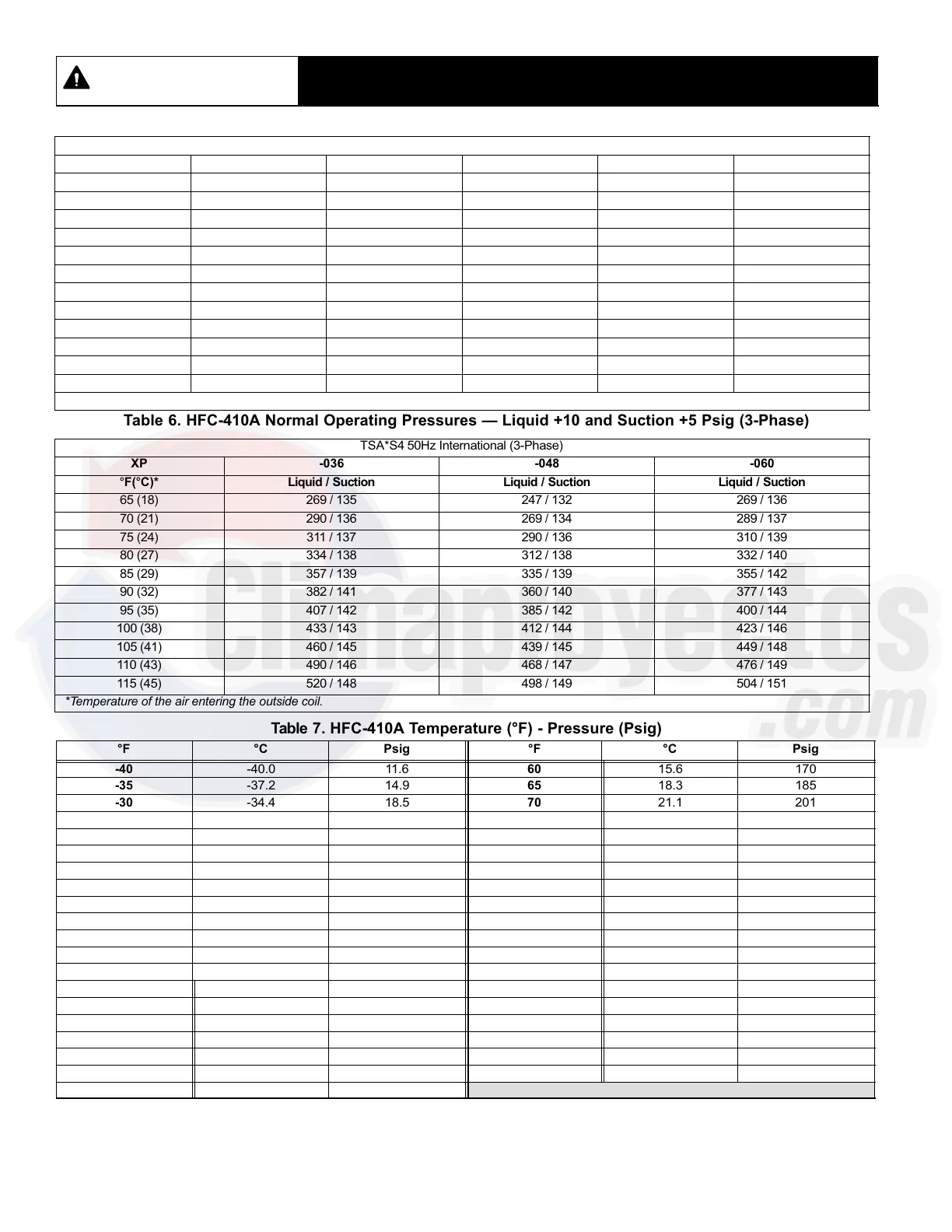

Table 6. HFC−410A Normal Operating Pressures Liquid +10 and Suction +5 Psig (3−Phase)
TSA*S4 50Hz International (3−Phase)
XP −036 −048 −060
5F(5C)* Liquid / Suction Liquid / Suction Liquid / Suction
65 (18) 269 / 135 247 / 132 269 / 136
70 (21) 290 / 136 269 / 134 289 / 137
75 (24) 311 / 137 290 / 136 310 / 139
80 (27) 334 / 138 312 / 138 332 / 140
85 (29) 357 / 139 335 / 139 355 / 142
90 (32) 382 / 141 360 / 140 377 / 143
95 (35) 407 / 142 385 / 142 400 / 144
100 (38) 433 / 143 412 / 144 423 / 146
105 (41) 460 / 145 439 / 145 449 / 148
110 (43) 490 / 146 468 / 147 476 / 149
115 (45) 520 / 148 498 / 149 504 / 151
*Temperature of the air entering the outside coil.
Table 7. HFC−410A Temperature (°F) − Pressure (Psig)
°F °C Psig °F °C Psig
−40 −40.0 11.6 60 15.6 170
−35 −37.2 14.9 65 18.3 185
−30 −34.4 18.5 70 21.1 201
−25 −31.7 22.5 75 23.9 217
−20 −28.9 26.9 80 26.7 235
−15 −26.1 31.7 85 29.4 254
−10 −23.3 36.8 90 32.2 274
−5 −20.6 42.5 95 35.0 295
0 −17.8 48.6 100 37.8 317
5 −15.0 55.2 105 40.6 340
10 −12.2 62.3 110 43.3 365
15 −9.4 70.0 115 46.1 391
20 −6.7 78.3 120 48.9 418
25 −3.9 87.3
125 51.7 446
30 −1.1 96.8 130 54.4 476
35 1.7 107 135 57.2 507
40 4.4 118 140 60.0 539
45 7.2 130
145 62.8 573
50 10.0 142
150 65.6 608
55 12.8 155
