TABLE 4
ZG/ZC 092S Normal Operating Pressures - 581153-01
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
99 248 101 287 103 338 106 398 110 466 114 536
109 247 109 290 111 336 127 368 117 463 122 531
126 256 128 295 151 348 133 389 134 454 139 520
143 268 147 305 155 352 156 396 159 446 165 506
Circuit 2
118 246 122 282 125 323 127 368 131 418 140 477
124 250 129 287 125 323 135 373 140 424 125 510
136 262 141 298 147 340 152 386 157 438 161 492
151 279 156 314 161 371 168 405 172 457 181 517
60
70
80
90
100
110
120
130
Suction Pressure (psig)
Outdoor Temperature (°F)
115°
105°
95°
85°
75°
65°

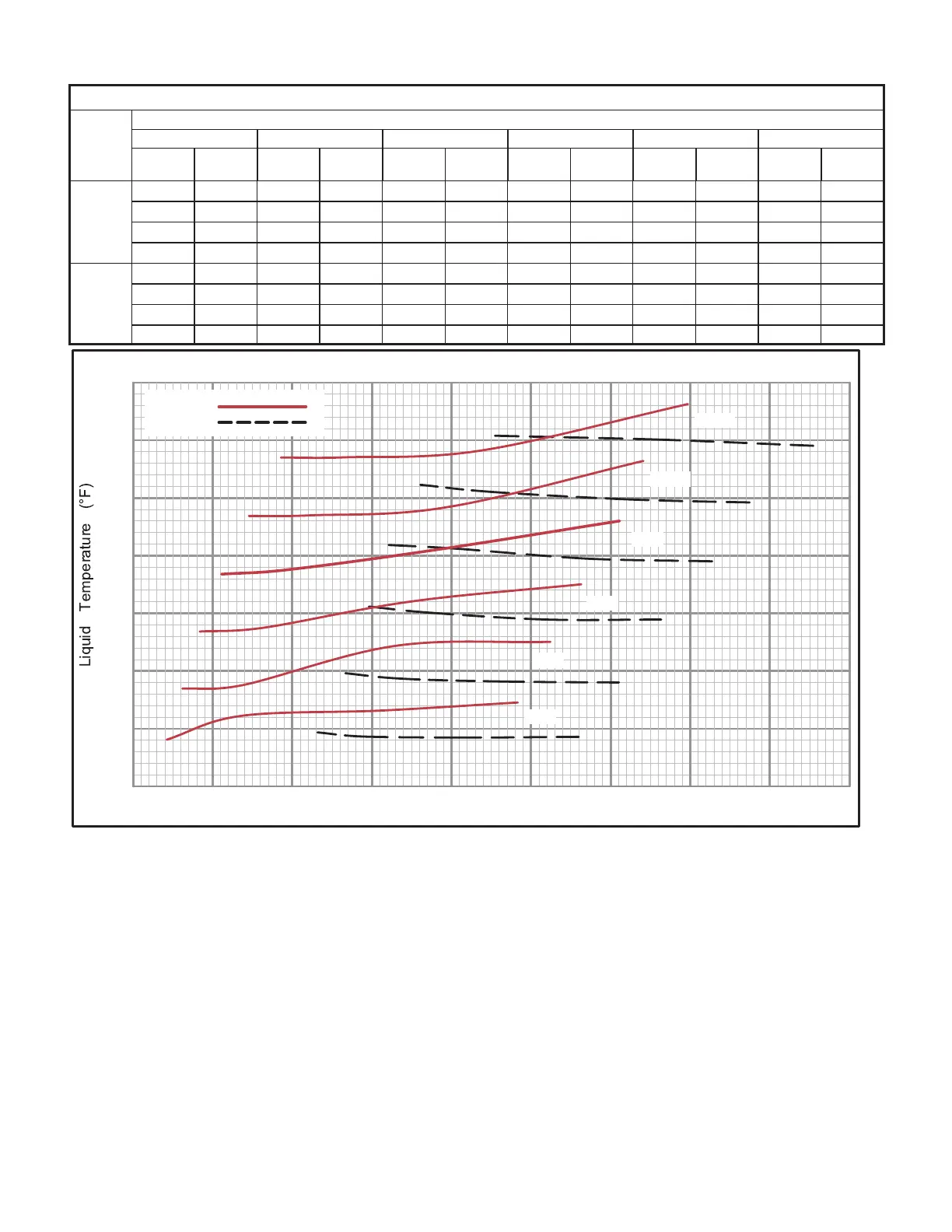

ZG/ZC 092SCharging Curves
Circuit 1
Circuit 2
105 115125 135145 15516595 175185
