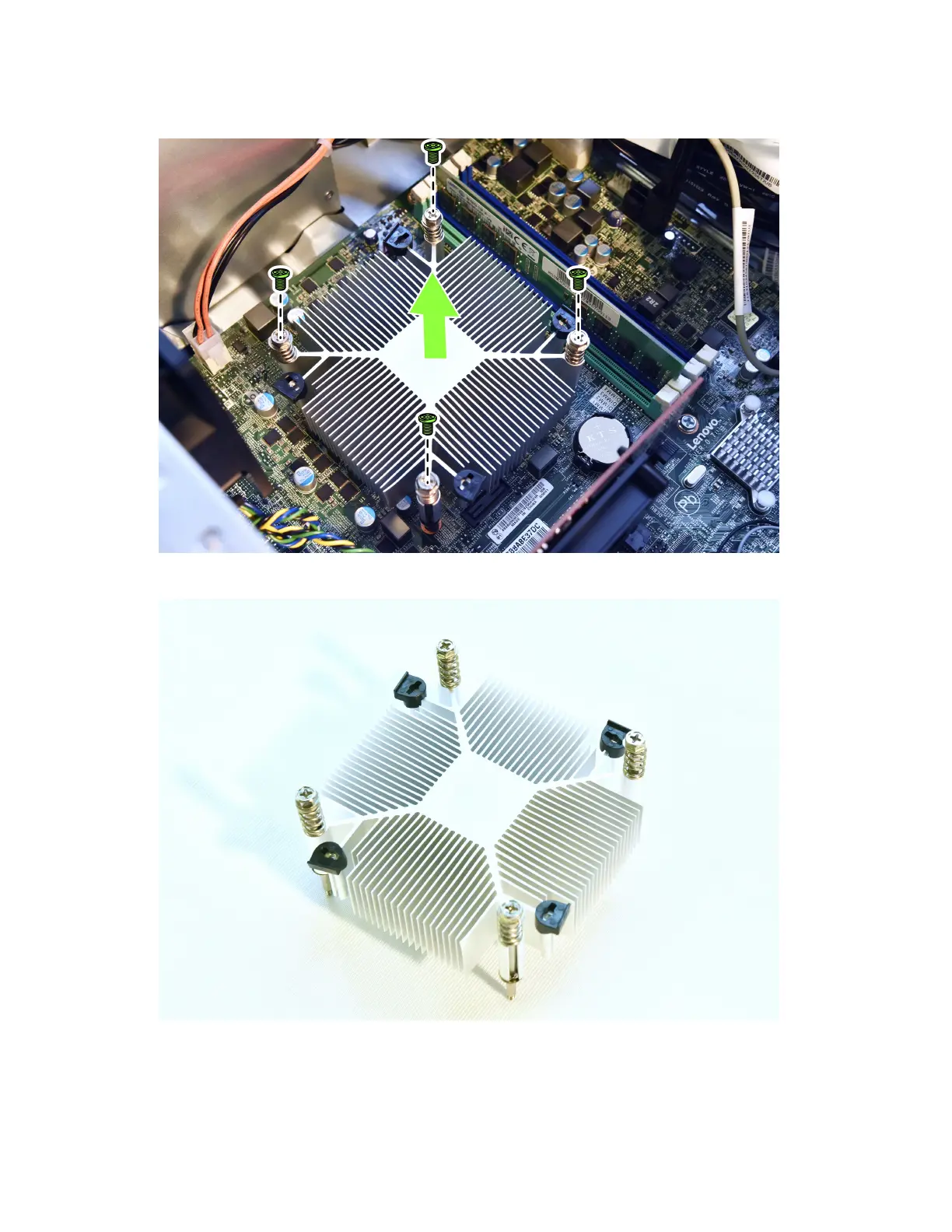

Step6.Removethe4screwsthatsecuretheheat-sinktothemotherboard.
Step7.Liftuptheheat-sinktoremoveit.
Step8.Installthenewheat-sink
a.Lineupthescrewsonthenewheat-sinkwithmountingholesonthemotherboardandsecure
itwiththe4screws.
b.Reattachthemicroprocessorfantotheheat-sink.
38IdeaCentre710Series
