7. Place the computer in an upright position. Then, reconnect the power cord and all disconnected cables
to the computer.
Note: If a locking device is available, use it to lock the computer.
PCI-Express card and card holder
Prerequisite
Before you start, read Appendix A “Important safety information” on page 57 and print the following
instructions.
Replacement procedure
1. Turn off the computer and remove all connected devices and cables.
2. Remove the left computer cover. See “Left computer cover” on page 25.
3. Remove the front bezel. See “Front bezel” on page 29.

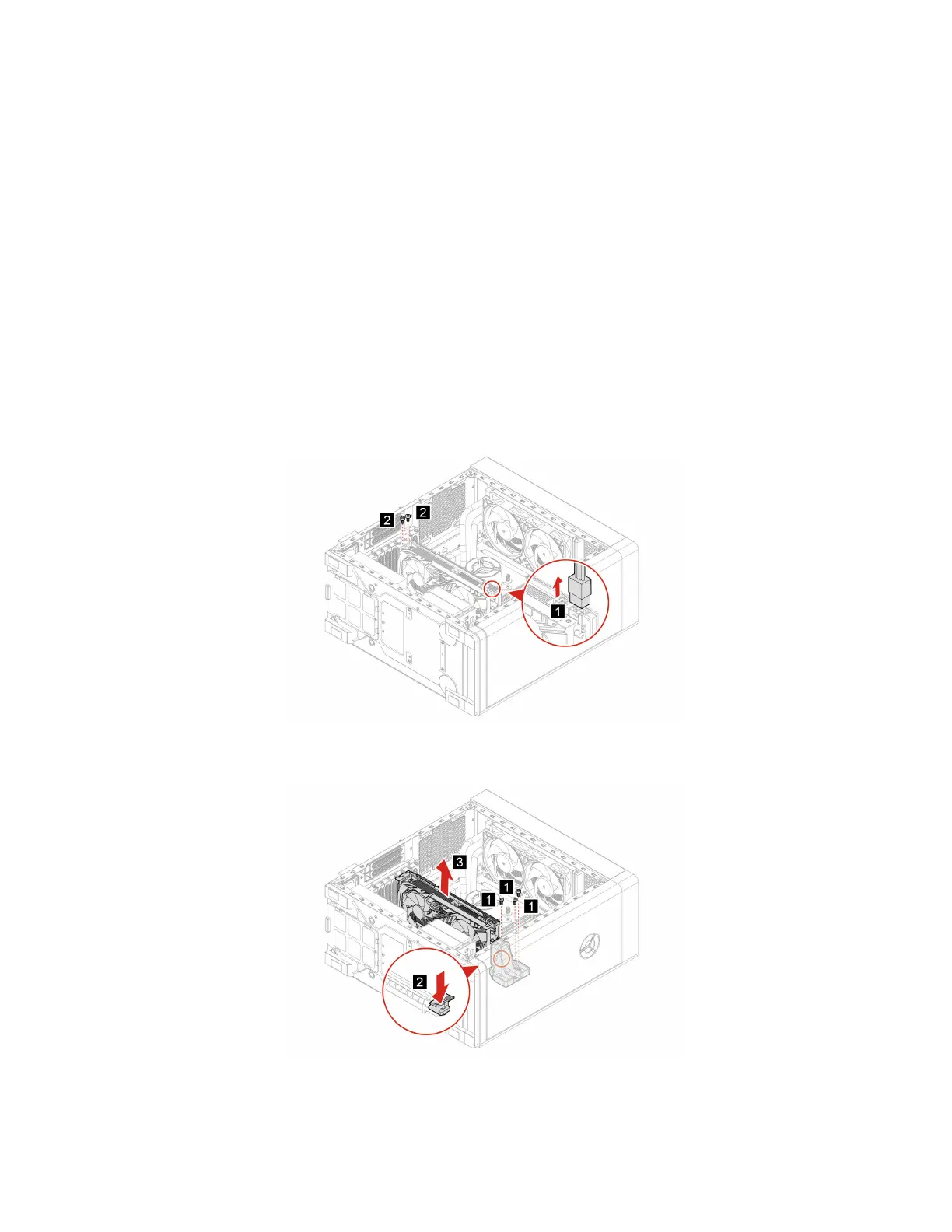

4. Remove PCI Express card connector cable, then remove two screws.
5. Remove three screws and disengage the latch. Then, remove the PCI Express card and the holder from
the computer.
6. Remove two screws, then remove the holder from PCI-Express card.
42
