Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
LCD panel
Removable tapes
Remove the EDP cable
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the LCD unit” on page 49
“Remove the hinge cover” on page 52
“Remove the LCD bezel” on page 52
“Remove the camera bracket” on page 53
“Remove the LCD panel” on page 54
Step 1. Disconnect the EDP cable from the sensor board. Then, remove the EDP cable from the LCD cover.

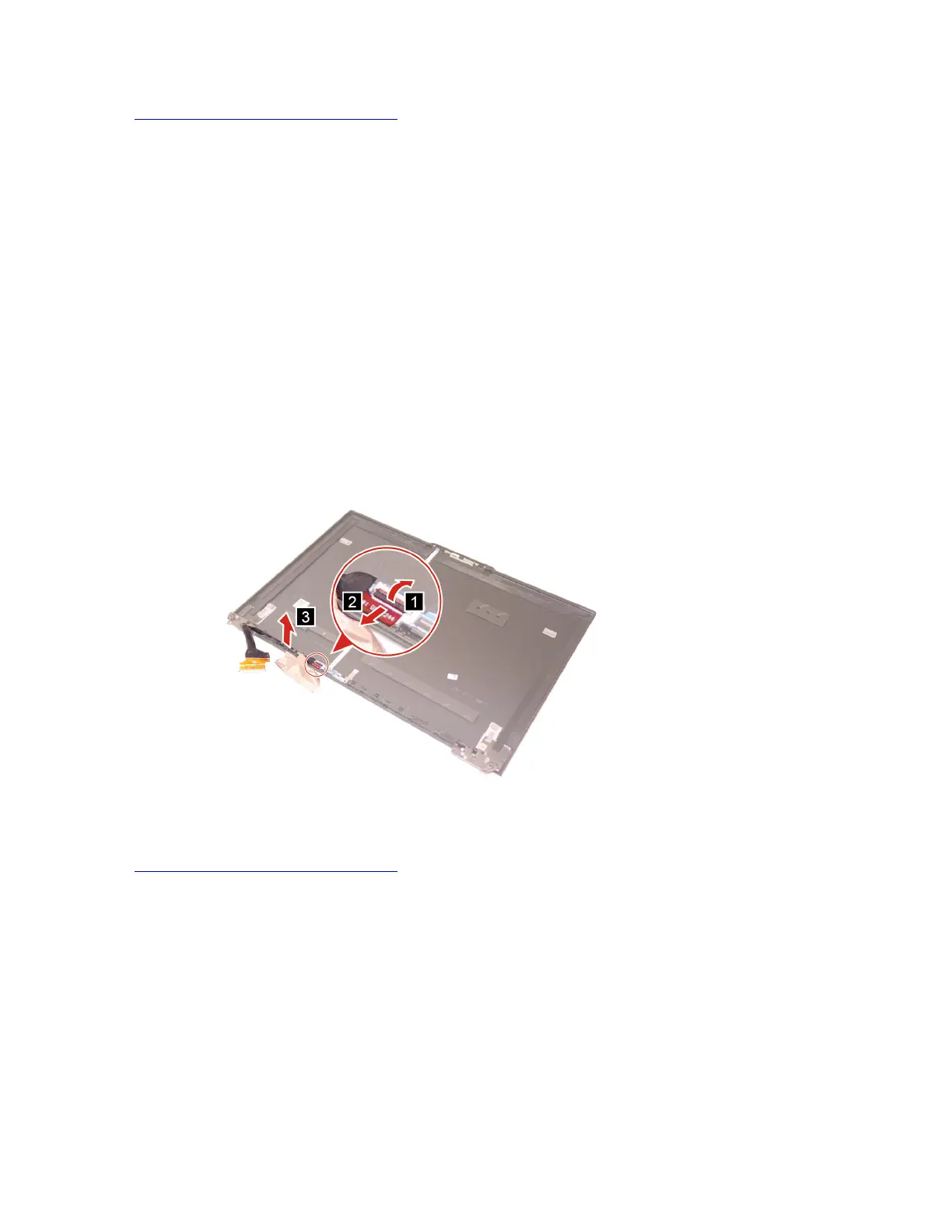

Figure 38. Remove the EDP cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
EDP cable
Remove the microphone rubbers
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 28
“Remove the LCD unit” on page 49
“Remove the hinge cover” on page 52
“Remove the LCD bezel” on page 52
“Remove the camera bracket” on page 53
56
Lenovo Legion Pro 5i (16″, 8) and Lenovo Legion Pro 5 (16″, 8) Hardware Maintenance Manual
