v If there is a combination of optical and parallel ATA hard disk drives in bays
1 and 2, set the hard disk drive as a master device and the optical drive as a
slave device.
Refer to the documentation that comes with your drive for master/slave
jumper information.

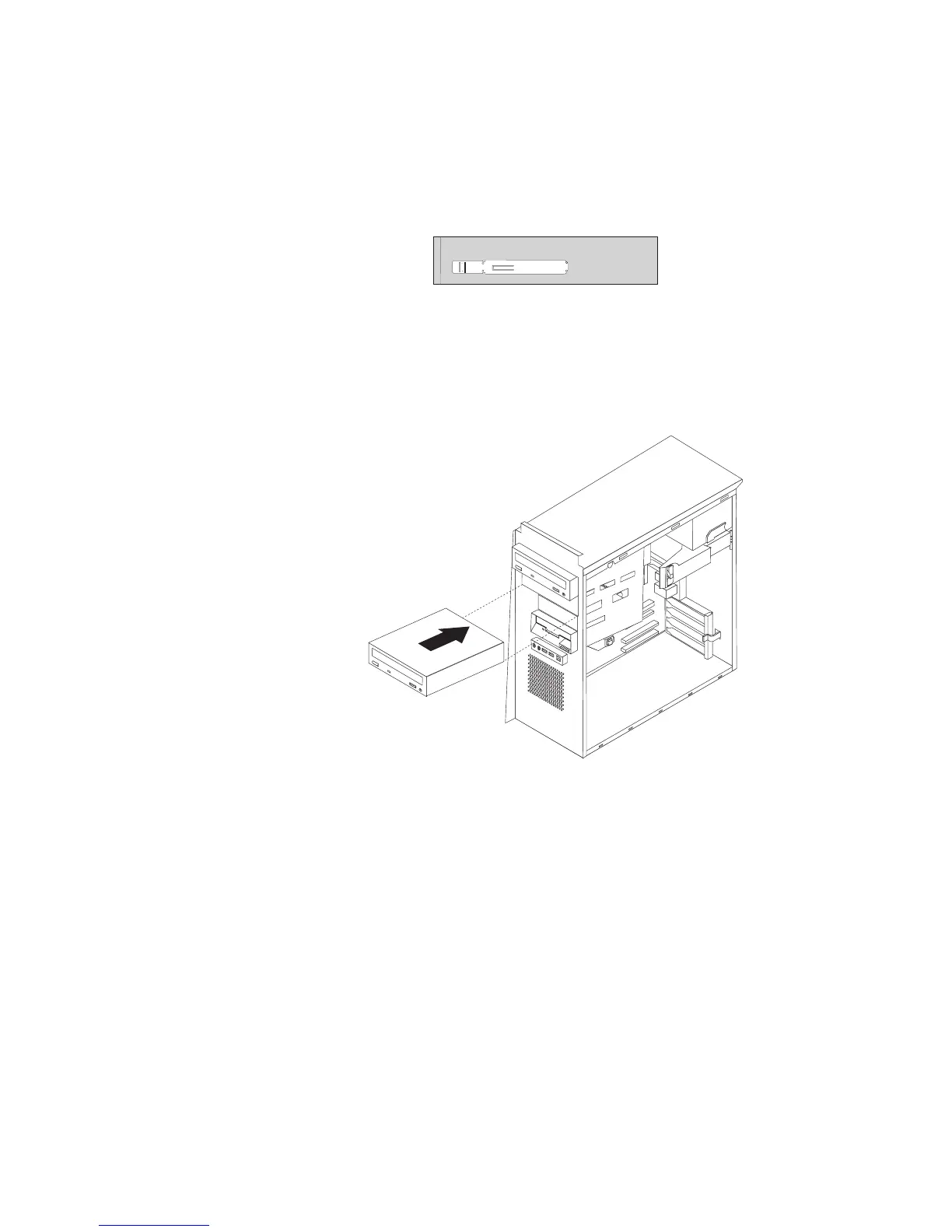

6. For a 5.25-inch drive, install a retainer bracket on the side of the drive.
7. For a 3.5-inch drive, install the drive into the Universal Adapter Bracket, 5.25 to
3.5-inch.
8. Install the drive into the bay until it snaps into position.
Note: If you are installing the adapter bracket, install the screws that secure the
bracket in the bay.
9. Continue at “Connecting drives” on page 20.
Installing a hard disk drive in bay 3
1. Remove the computer cover. See “Removing the cover” on page 10.
18 User Guide
