Lenovo ThinkCentre M55 Hardware Maintenance Manual

MachineType8810
1
2 3 4
5
6
7
8
9
10
11
12
13
14
15

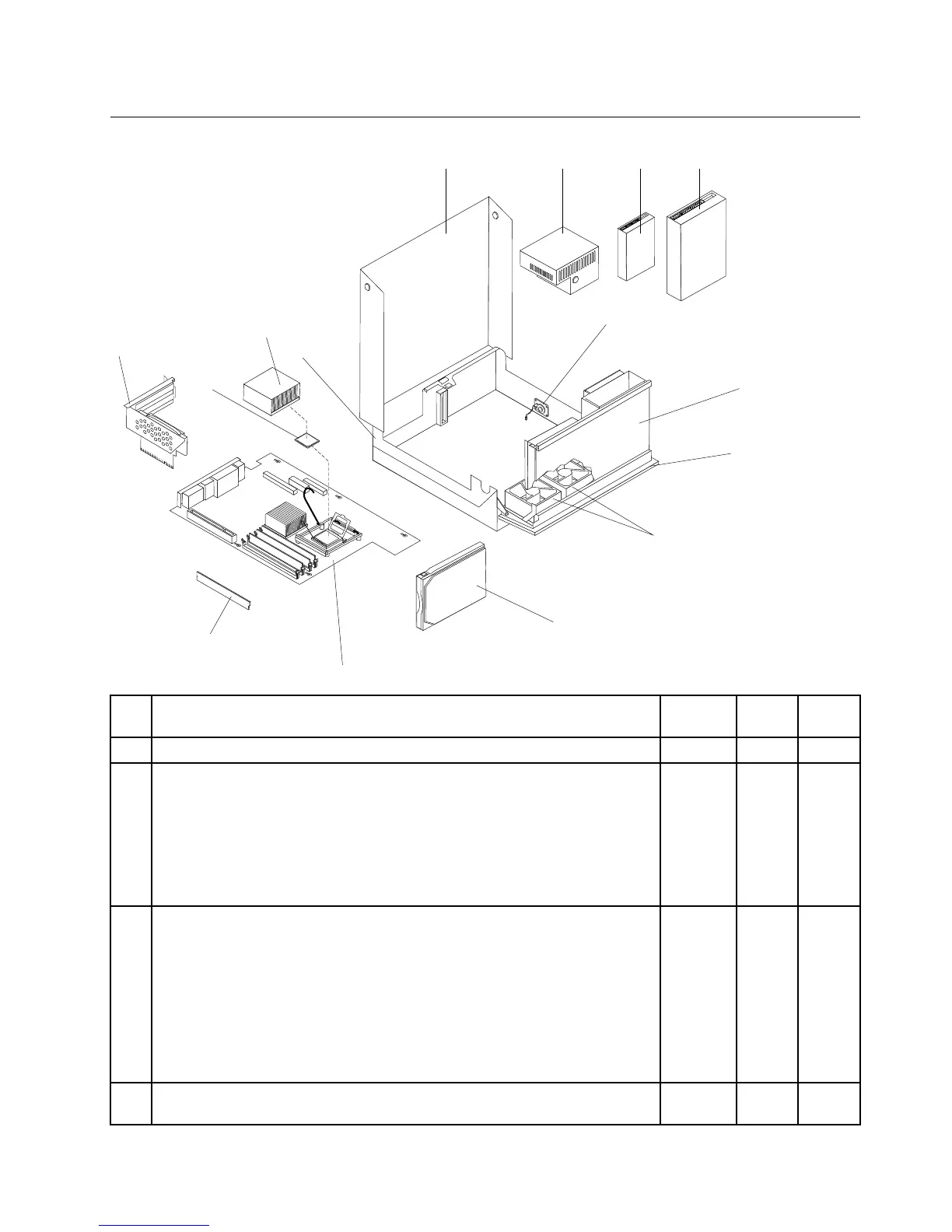

Item
#8810FRUsFRU#
CRU
TierRoHS?
1
Topcover(allmodels)
41R48352Y
2
PowerSupply(225Watt)(modelsCTOA8MA9M91G93U93F95K95R96K
96R98U98F99M9AU9AF9BK9BR94G94M94T9CM9DM9EM9FM9GM
9HMD1UD1FD2UD2FD3UD3FD4MD5ME1M6BK6GM9KK9KRF3FF4F
F4KF6FF7G94A94K94RF8UF8FF8GF8MF8AF8TF8KF8R6JU6JF
6JG6JM6JA6JT6JK6JRD7UD7FD7GD7MD7AD7TD7KD7R6EU6EF
6EG6EM6EA6ET6EK6ER6FU6FFFCKFDM6NM6PK9NU9NF9NS9NP
9NL9ND9NY9NG9NM9NA9NT9NK9NRD8ME5GE6GE3AE3TD9K
H6MH7MH5GH1UH1FH2UH2F)
41N34322Y
2
PowerSupply-China(225Watt)(models94VF8SF8PF8LF8DF8YF8QF8C
F8BF8HF8V6JS6JP6JL6JD6JY6JQ6JC6JB6JH6JVD7SD7PD7LD7D
D7YD7QD7CD7BD7HD7VCTO-AA2SA2PA2LA2DA2YA3SA3PA3LA3D
A3YA4SA4PA4LA4DA4YA5SA5PA5LA5DA5YA6SA6PA6LA6DA6Y
A7SA7PA7LA7DA7YA8SA8PA8LA8DA8YAASAAPAALAADAAY92S
92P92L92D92Y97S97P97L97D97YA8BA8H94S94P94L94D94Y94Q
94C94B94H6AB6AH6CS6CP6CY6DS6DP6DY6HS6HP6HL6HYD6S
D6PD6LD6YF1QF2SF2PF2LF2DF2YF2QF5SF5PF5LF5DF5YF5BF5H
6ES6EP6EL6ED6EY6EQ6EC6EB6EH6EVFDCFDBFDH6LC6LB6LH
9NC9NB9NH9NQ9NVE4BE4HH3BH3HH4Q)
41N34362Y
2
PowerSupply-Japan(225Watt)(modelsCTO-AF8J6JJD7J9NE9NJ94E
94JF8E6JED7E6EE6EJ)
41N34412Y
Chapter8.FRUlists329

Lenovo ThinkCentre M55 Specifications

General

Tcase	61.4 °C
Bus type	FSB
Stepping	R0
Processor cache	2 MB
Processor cores	2
Processor model	E6300
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor socket	LGA 775 (Socket T)
Processor codename	Conroe
Processing Die size	111 mm²
Processor frequency	1.86 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	7
Number of Processing Die Transistors	167 M
Audio system	High Definition Audio
Product type	PC
Motherboard chipset	Intel® Q963 Express
Memory slots	2x DIMM
Internal memory	1 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Memory layout (slots x size)	2 x 0.5 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-ROM
Total storage capacity	80 GB
Power supply type	AC
Power requirements	120 - 230 V
External drive bays	1 x 5.25\
Internal drive bays	1 x 3.5\
Networking features	Gigabit Ethernet
Intel segment tagging	Enterprise, Professional
Compliance industry standards	IEEE802.3, IEEE802.3u, IEEE802.3ab
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3000
Maximum graphics card memory	- GB
Operating system installed	Windows Vista Business
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power supply	225 W
Chassis type	SFF
Product color	Black
Processor code	SLGW2
Processor ARK ID	27248
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	358 mm
Width	310 mm
Height	88 mm
Weight	8500 g
