5. If you have a modem, connect the modem using the following information.
L
IN
E
P
H
O
N
E
P
H
O
N
E
LINE
PHONE
LINE
P
H
O
N
E
L
IN
E

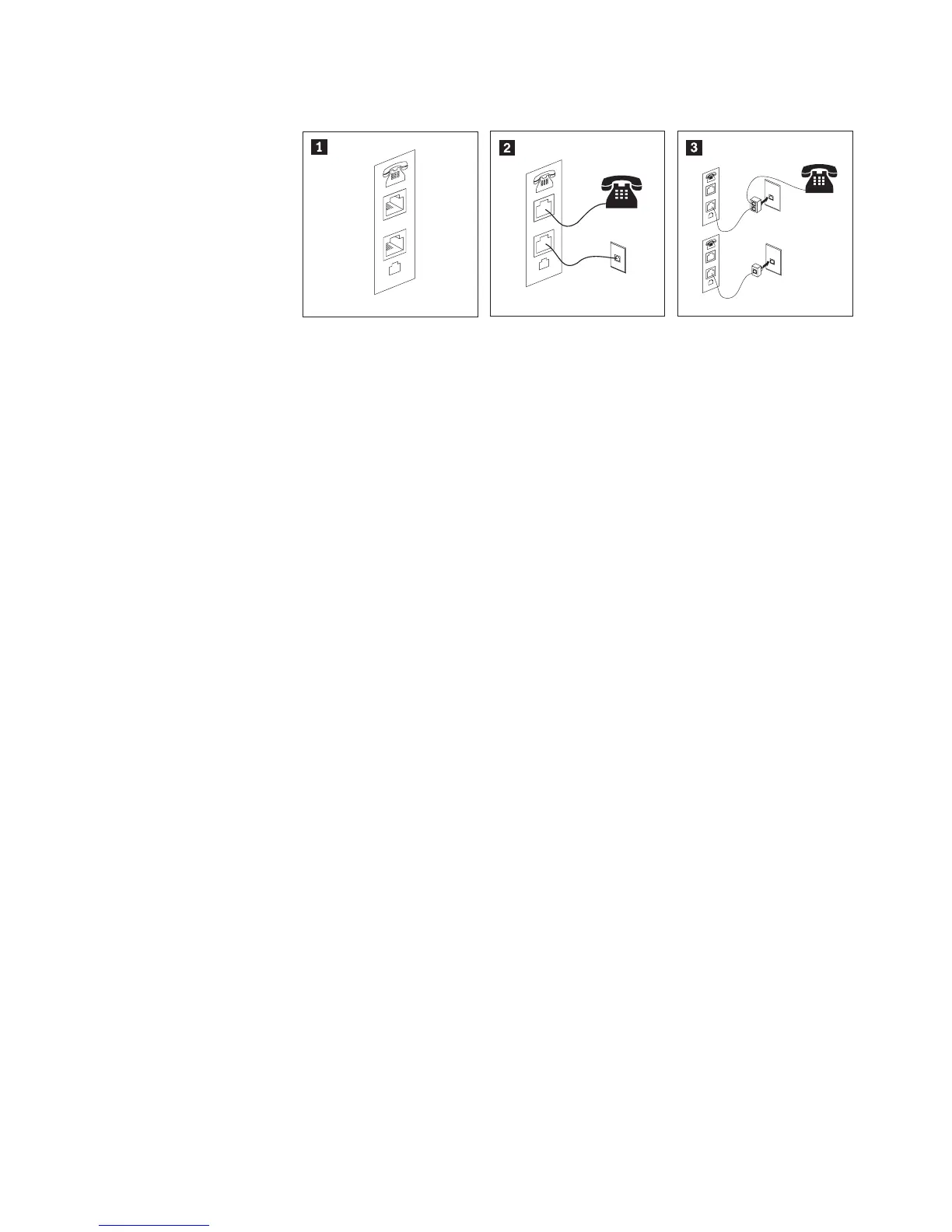

1 This illustration shows the two connections on the back of the computer that are
needed to set up your modem.
2 In the United States and other countries or regions that use the RJ-11 telephone
outlet, attach one end of the telephone cable to the telephone and the other end to
the telephone connector on the back of the computer. Attach one end of the modem
cable to the modem connector on the back of the computer and the other end to the
telephone outlet.
3 In countries or regions that do not use RJ-11 telephone outlets, a splitter or converter
is required to attach the cables to the telephone outlet, as shown at the top of the
illustration. You also can use the splitter or converter without the telephone, as
shown at the bottom of the illustration.
Chapter 2. Setting up your computer 5
