Lenovo ThinkCentre M80s User Manual

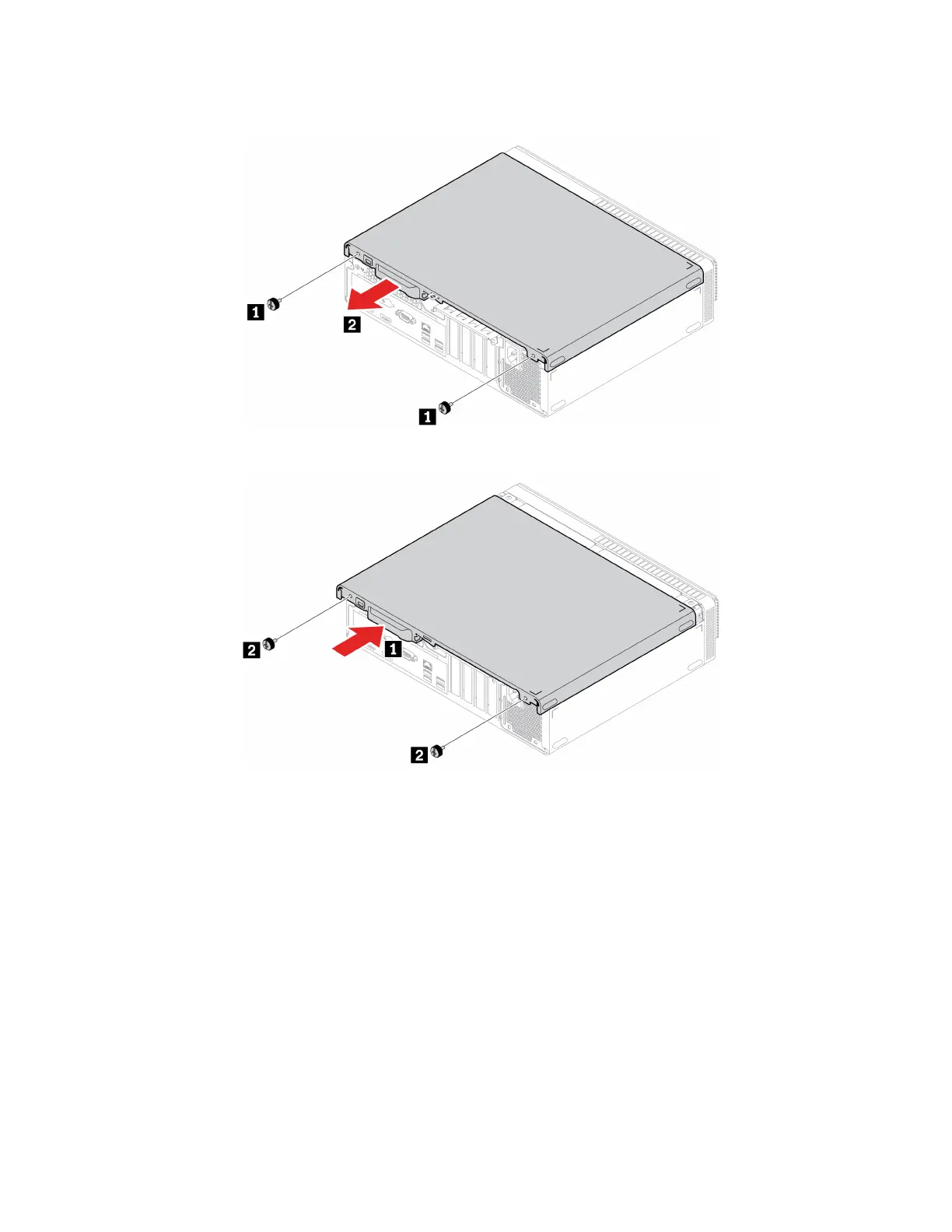

6. Remove the computer cover.
7. Install the computer cover.
8. Place the computer in an upright position.
9. Reinstall all the removed parts. Then, reconnect the power cord and all disconnected cables to the
computer.
Note: If a locking device is available, use it to lock the computer.
Front bezel
Prerequisite
Before you start, read Appendix A “Important safety information” on page 63 and print the following
instructions.
Replacement procedure
1. Remove the computer cover. See “Computer cover” on page 33.
34
M70s and M80s User Guide

Lenovo ThinkCentre M80s Specifications

General

Processor	Up to 10th Gen Intel Core i9
Form Factor	Small Form Factor (SFF)
Memory	Up to 128GB DDR4 2933MHz
Storage	Up to 2TB HDD
Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Ports	HDMI, DisplayPort, Ethernet, audio jacks
Power Supply	260W 85% Power Supply
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
