Lenovo THINKPAD R60 Hardware Maintenance Manual

1210 Structure frame and IEEE1394 cable
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 58
v “1020 Ultrabay Enhanced device for R60, R61, and R61i” on page 59
v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”
on page 60
v “1040 Palm rest or palm rest with fingerprint reader” on page 64
v “1060 Keyboard” on page 68
v “1070 Optical drive for R60e and R61i” on page 70
v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71
v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74
v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76
v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78
v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80
v “1140 SIM card slot” on page 82
v “1150 Fan assembly” on page 83
v “1170 LCD assembly” on page 88
v “1180 Base cover” on page 91

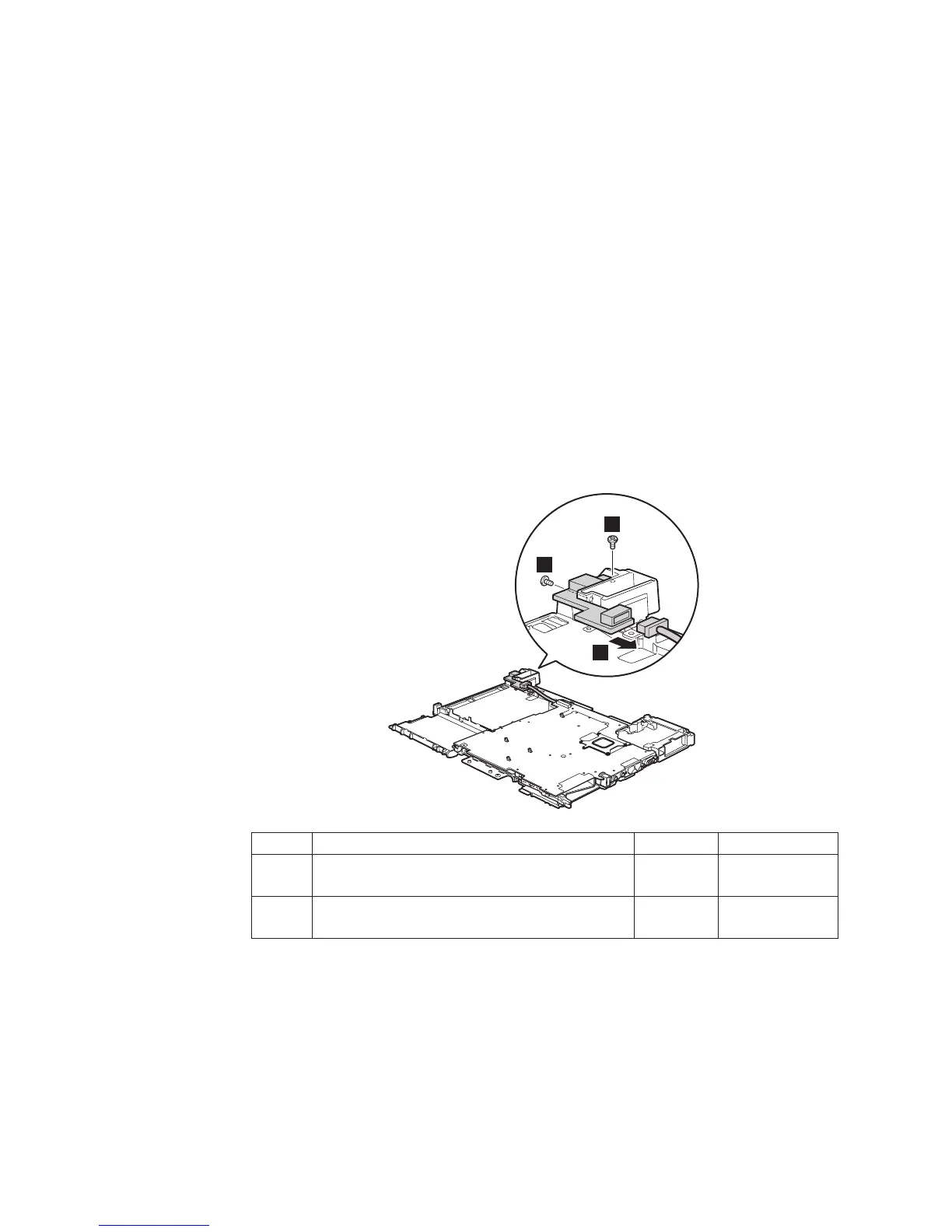

Remove the USB sub card with cable.
1
2
3
Step Screw (quantity) Color Torque
1 M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.167 Nm
(1.7 kgfcm)
2 M2.5 × 6 mm, flat-head, nylon-coated (1) Black 0.392 Nm
(4 kgfcm)
In step 3, detach the connector and release the cable from the cable guide of the
frame.
When installing: Make sure that the connector 3 is attached firmly.
(continued)
Removing and replacing a FRU
98 MT ThinkPad
®
ThinkPad R60, R60e, R61, and R61i

Lenovo THINKPAD R60 Specifications

General

Bus type	FSB
Stepping	C0
Tjunction	100 °C
Processor cache	2 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel® Core™ Duo
Processor series	Intel Core Duo T2000 Series
Processor socket	Socket 479
Processor codename	Yonah
Processing Die size	90 mm²
Processor frequency	2 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	667 MHz
Processor operating modes	32-bit
ECC supported by processor	No
Thermal Design Power (TDP)	31 W
Scenario Design Power (SDP)	0 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	151 M
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD±RW
Total storage capacity	100 GB
Display diagonal	15 \
Display resolution	1400 x 1050 pixels
Native aspect ratio	4:3
Modem speed	56 Kbit/s
Internal modem	Yes
Dimensions (WxDxH)	332 x 269 x 40 mm
Wireless technology	IEEE 802.11a/b/g
Memory slots	2x SO-DIMM
Internal memory	0.5 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Discrete graphics card model	AMD Mobility Radeon X1400
Maximum graphics card memory	0.128 GB
Audio system	High Definition Audio
Speaker power	1 W
Bluetooth version	2.0+EDR
Networking features	Gigabit Ethernet
Bundled software	Adobe Acrobat Reader, Diskeeper Lite from Diskeeper, Google Desktop, Google Toolbar, Lotus Notes Stand-alone Client, Lotus Smartsuite millennium edition, Mobile Connect Dashboard - Vodafone Support, PC Doctor diagnostics, Picasa - Google, Symantec Client Security 3.0, ThinkVantage Access Connections, ThinkVantage Productivity Center, ThinkVantage Rescue & Recovery, ThinkVantage System Update
Operating system installed	Windows XP Professional
Battery life (max)	3.1 h
Number of battery cells	6
TV-out type	S-Video
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
CardBus PCMCIA slot type	Type II
Pointing device	ThinkPad UltraNav
Processor code	SL9K2
Processor ARK ID	27236
Processor package size	35 x 35 mm

Weight and Dimensions

Depth	269 mm
Width	332 mm
Height	40 mm
Weight	2650 g
