Screw specifications Number of screws
M1.6 x L1.7 1
Step 3. Peel off the SSD mylar.

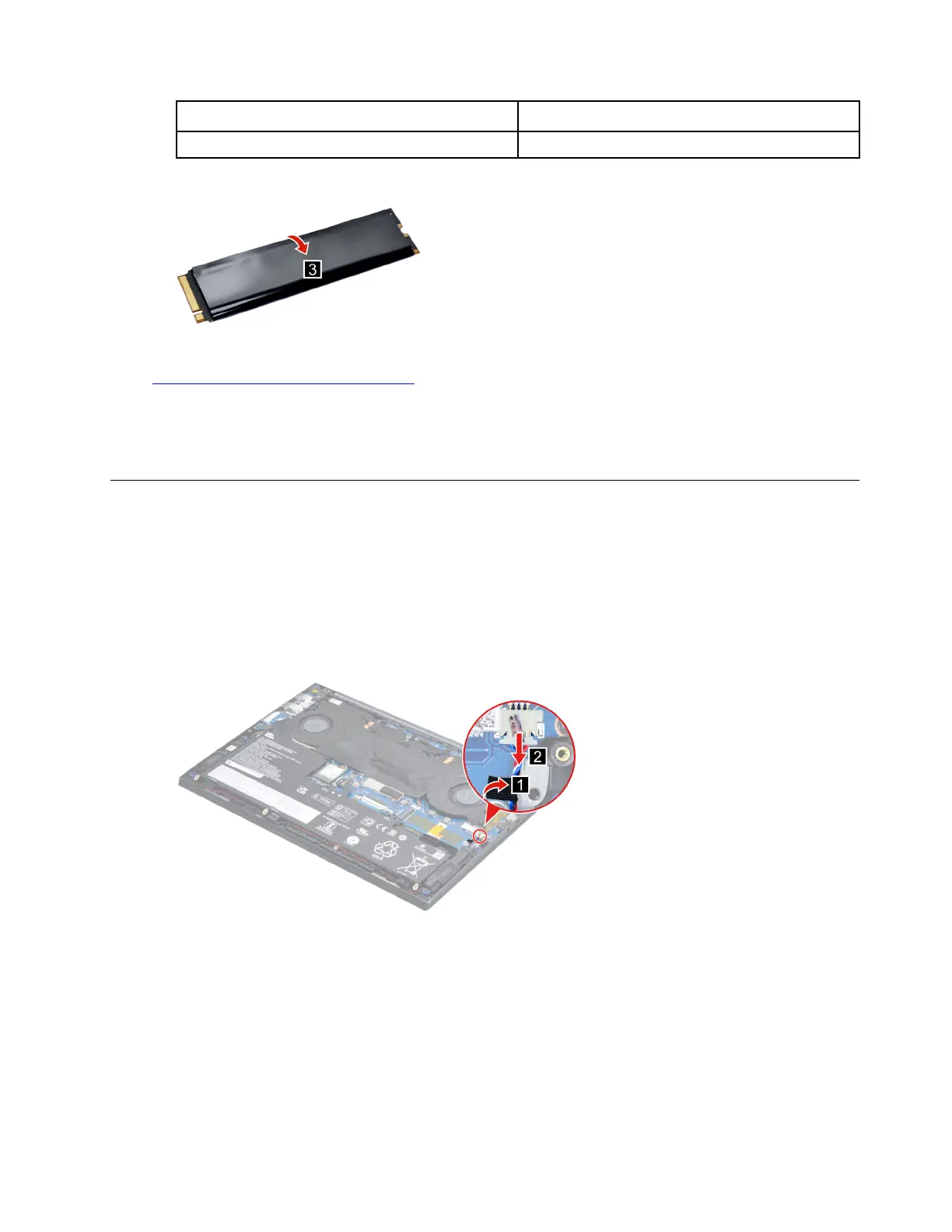

Figure 7. Peel off the SSD mylar
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Solid-state drive (SSD)
Solid-state drive (SSD) mylar
Remove the speakers
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 28
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Peel off the tape and then disconnect the speaker cable from the system board.
Figure 8. Disconnect the speaker cable from the system board
Step 3. Release the speaker cable from the cable guide. Remove four screws and then remove the
speakers.
Chapter 4. Removing a FRU or CRU 31
