12 Information BM1
insulating track connector if there is a
track joint at the respective point.

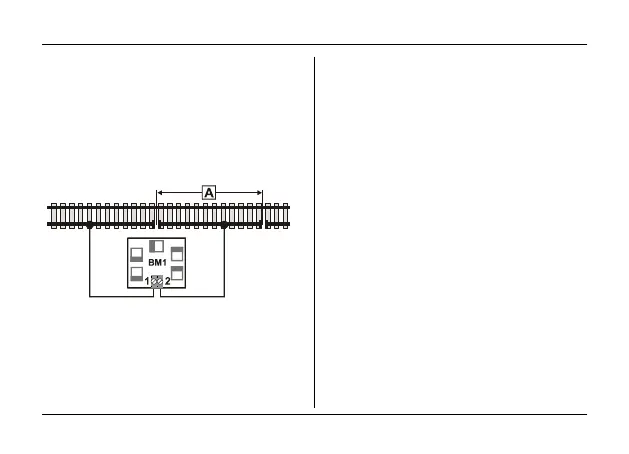

Connect terminal "1" of the BM1 with
the right-hand track before the braking
section.
Connect terminal "2" of the BM1 with
the insulated braking section "A".
Use a switch parallel to the terminals 1
and 2 to switch the BM1 on or off. You
can use a signal switch to do this. Most
customary signals with double-coil drive
are equipped with a switch like this.
If you wish to use the BM1 in
combination with light signals, you will
have to install a relay parallel to the
green signal bulb. Use the make contact
of the relay to bridge the BM1 when the
signal is "green".
