Lenz Digital Plus BM2 - Page 25

25
E
5 Installing and connecting the BM2 module

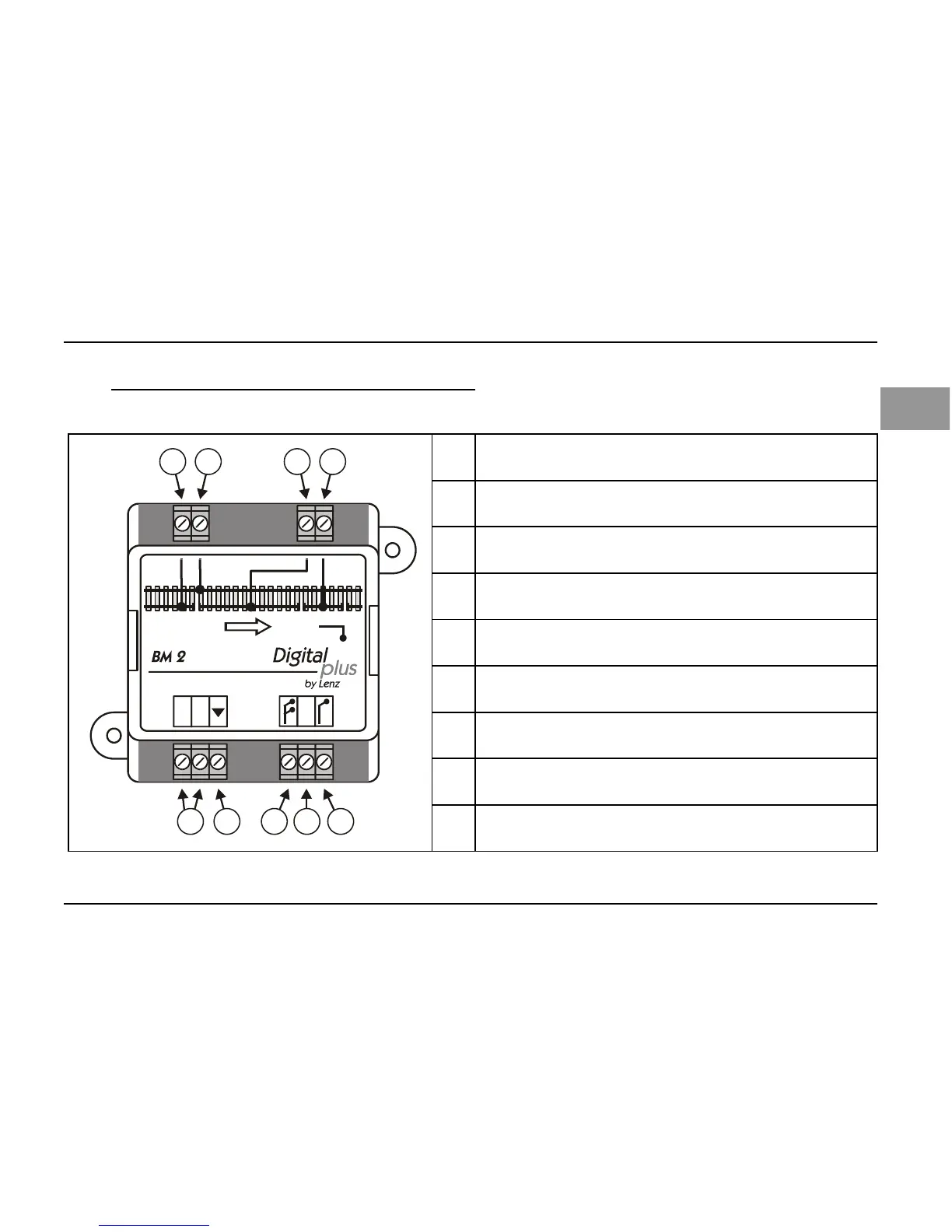

5.1 The BM2 connections
C
T
O
5 9
1
6
2
7
3
8
4
1
Supply from the track to the right in the
direction of travel
2
Supply from the track to the left in the
direction of travel
3
Driving section connection
4
Stopping section connection
5
Outputs for connecting feedback modules
LR101
6
Output for connecting block section module
BM3
7
Signal input "Slow approach"
8
Signal input
9
Signal input "Go"
