The signal inputs are voltage-controlled which means that you will need an additional AC/DC power
source between 8(AC)/11(DC) and 24(AC/DC) V. This voltage must be fed into location (1).
The following applies to the K1 and K2 switches:

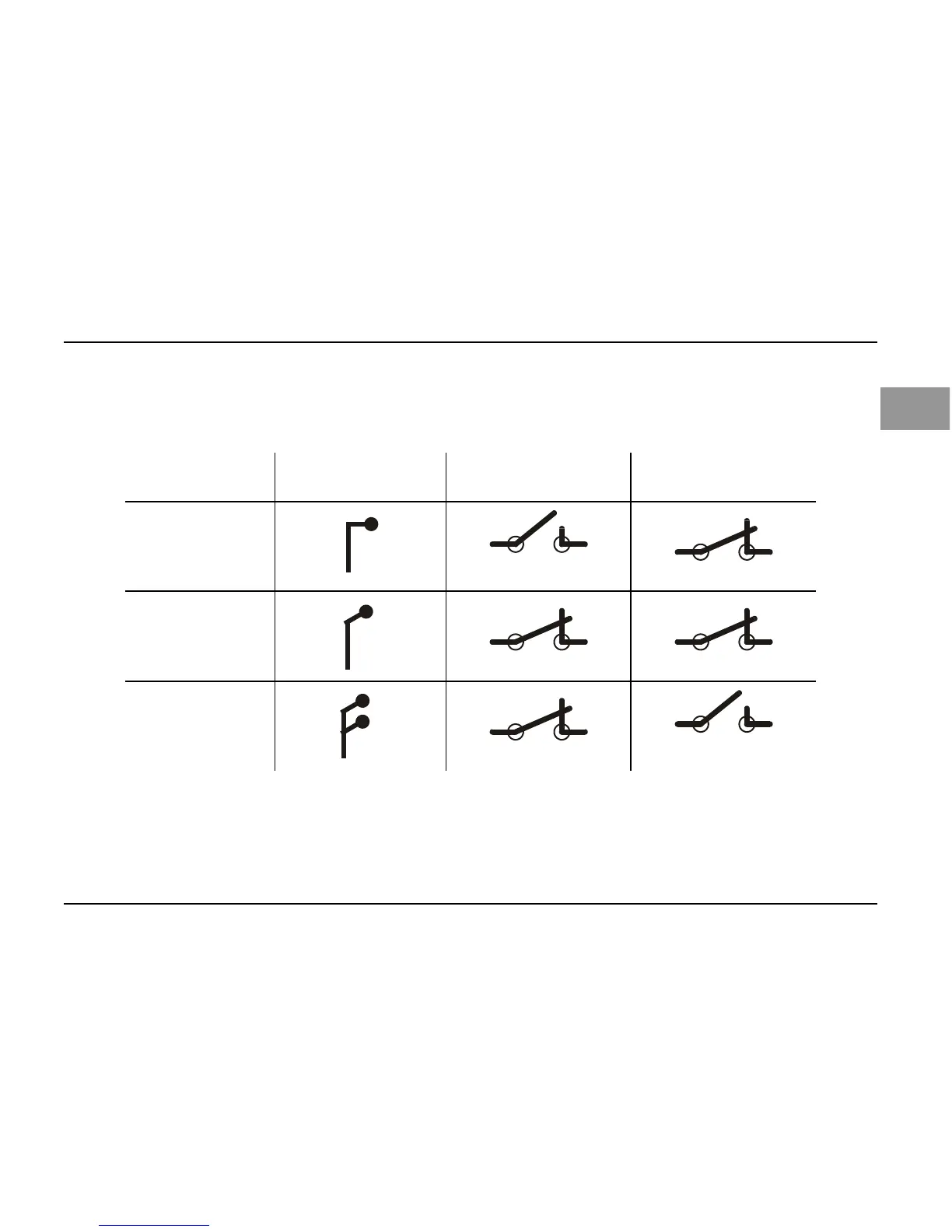

Train behaviour
Form signal
shows
K1 switch
K2 switch
Stop
open
closed
Clear
closed
closed
Slow approach
closed
open
Since the "K2" switch (Slow approach) is always designed to be open when the signal is at "Slow
approach", a resistor (4k7, 1/4W), shown in the figure left, must be installed. The resistor is
enclosed with the BM2.
